7.2.3 L OADING PRE - CONFIGURED R ULE SETS

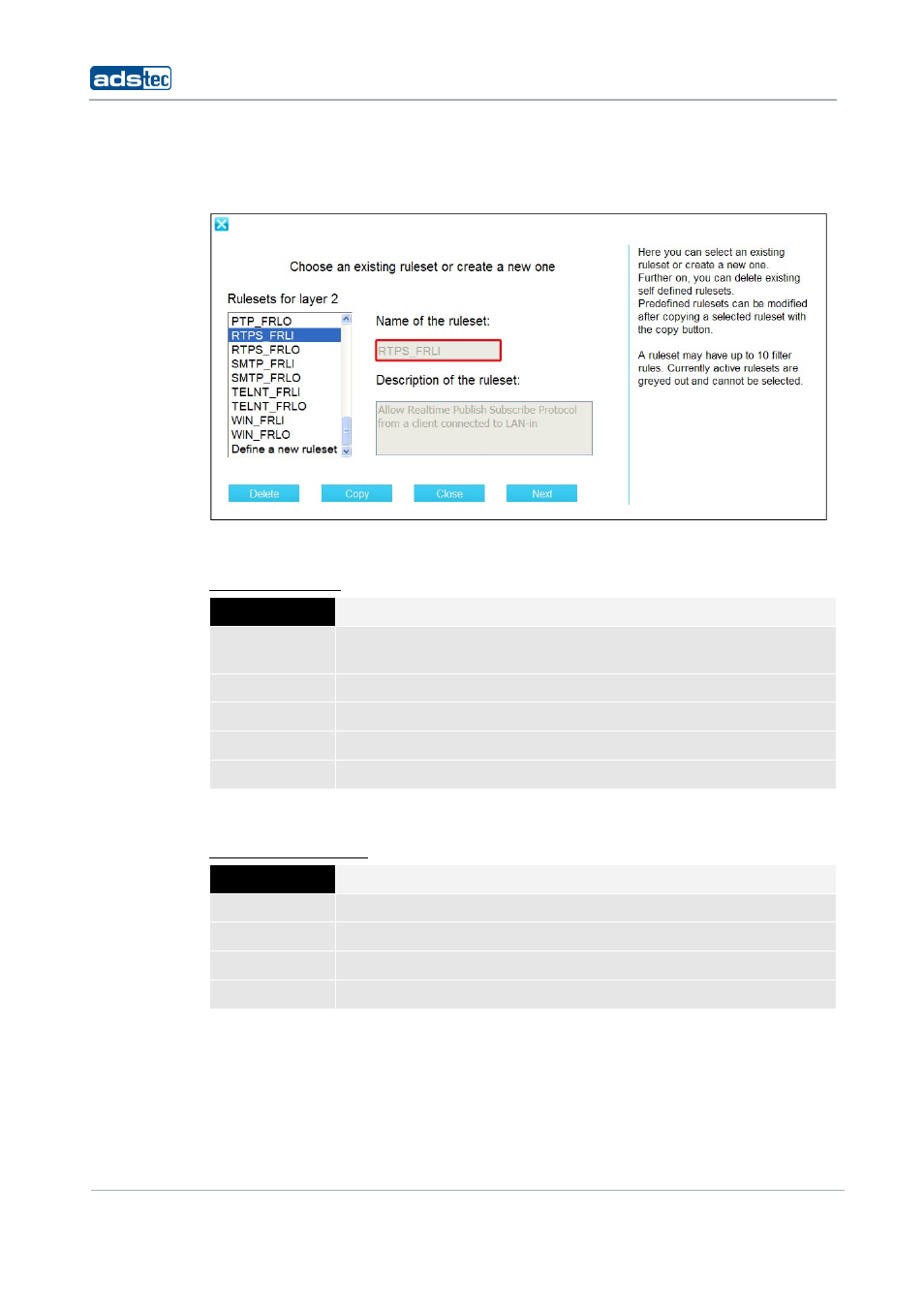

Select a pre-configured rule set.
The pre-configured rule sets are displayed on the left of the dialogue window.
By way of example, the following standard rule sets are pre-configured for layers 2 and 3.
L
AYER 2 R ULE S ETS
Name Brief Description
ARP Address Resolution Protocol allows assignment of network addresses
to hardware addresses
Allow_L2 Allows all data traffic on layer 2
Block_L2 Discards all data packets (i.e. blocks all data traffic) on layer 2
ICMP_L2 Allows all ICMP-based data traffic on layer 2
Log_L2 Maintains an event log and discards all data packets on layer 2
Select the rule set you want to load and confirm by clicking Next,
R
ULE SETS FOR L AYER 3
Name Brief Description
ALLOW_L3 Allows all data traffic on layer 3
BLOCK_L3 Discards all data packets (i.e. blocks all data traffic) on layer 3
ICMP_L3 Allows all ICMP-based data traffic on layer 3
Log_L3 Maintains an event log and discards all data packets on layer 3
Confirm the next message prompt by clicking Close.
