IT Infrastructure RAP/RAC1000
© ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen
29

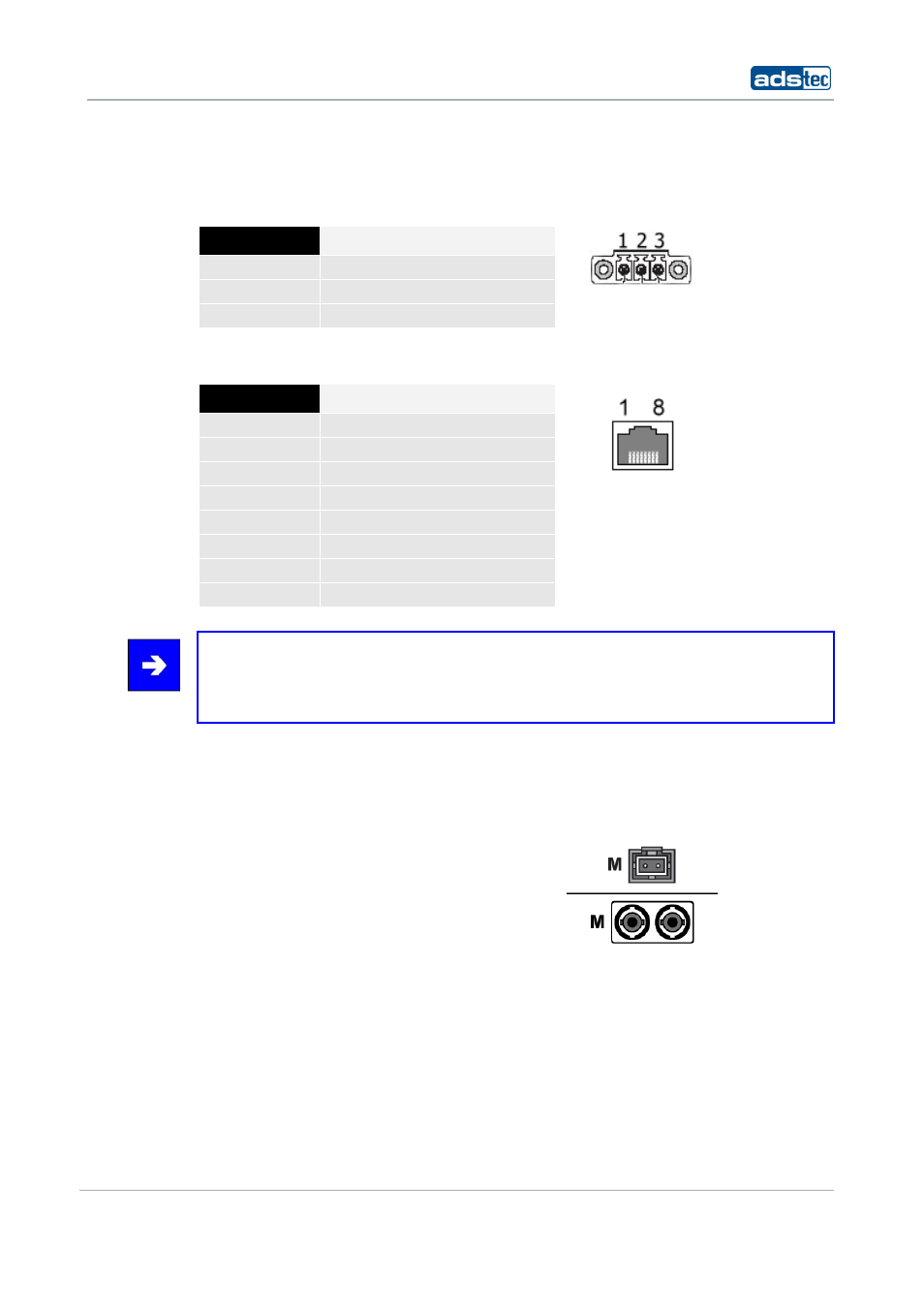

5.3.2
P
OWER
S
UPPLY
110/230
VAC
A bushing terminal with threaded connector is used to establish the power supply
connection (diagram shows bushing inside device).
PIN NUMBER
SIGNAL NAME
1
110/230 V AC
2
PE
3
0 V DC
5.3.3
P
OWER
S
UPPLY
HOST
(IEEE
802.AF)
PIN NUMBER
SIGNAL NAME
1
TX +
2
TX -
3
RX +
4
G
5
G
6
RX -
7
-48V
8
-48V
Note:
Transmission of 48V DC power supply is designed for a maximum feeding distance of 100
meters (approx. 330 ft.) in accordance with Ethernet specification requirements. The
connected devices may draw 350 mA of power; maximum supply power is 15.4 Watts.
5.3.4
F
IBRE
O
PTIC
E
THERNET
The optical connection requires an MTRJ fibre optic connector.
Multimode cable, MTRJ connector to Duplex connector 62.5/125µm.
