4.4 D EVICE M OUNTING
The mounting plate is pre-mounted to the device when delivered to the customer.

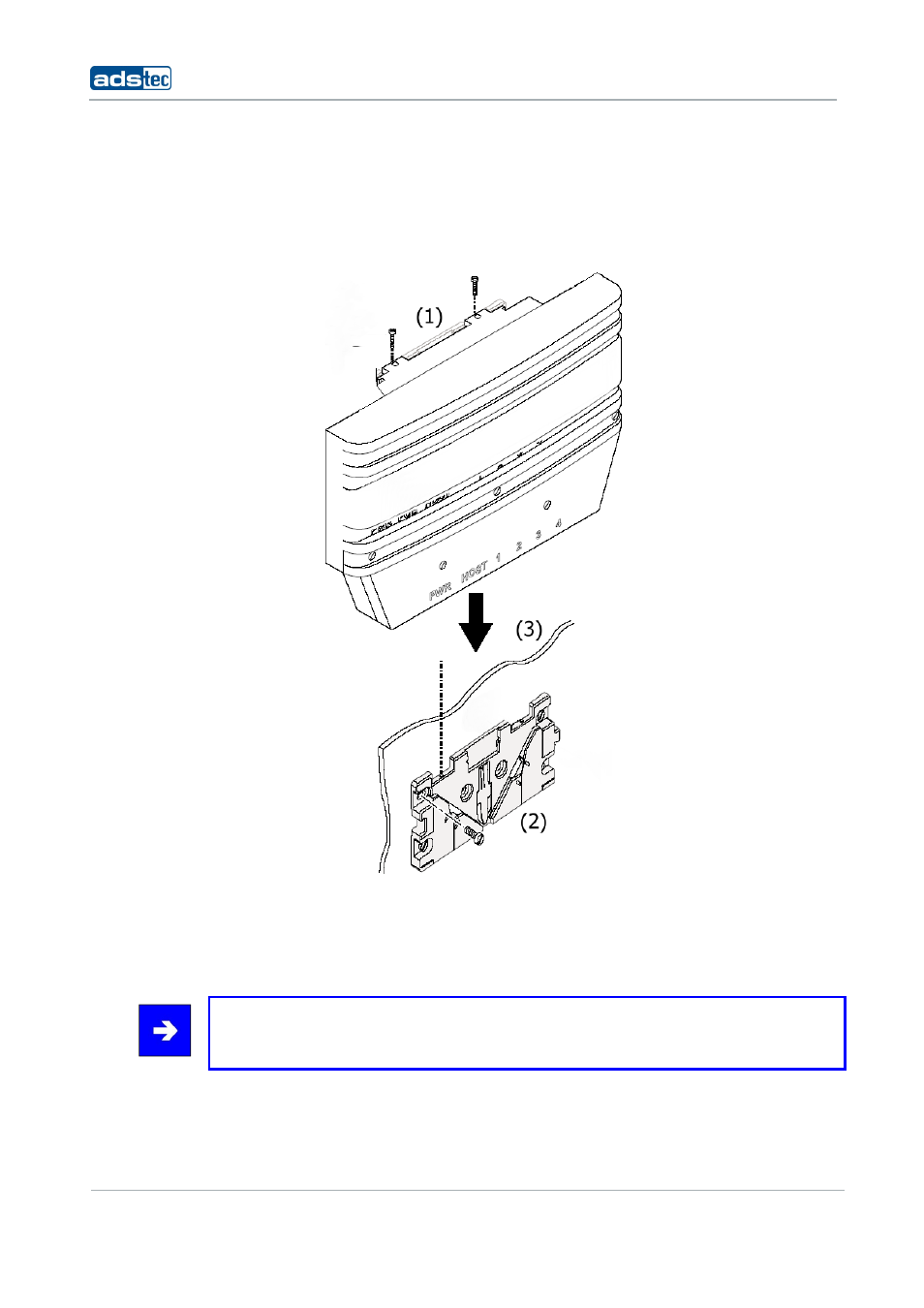

1) To install the device in the desired location, loosen the Allen screws (M4x12). (1)
2) Fix the mounting plate (w/o device) in the desired location. Ensure that the plate is held
by at least two opposing screws. (2)
3) Place the device onto the mounted fixture and make sure that device and fixture are
flush with each other. (3)
4) Secure the device inside the fixture using the previously removed Allen screws. (1)
Note:
Please ensure that the device is not mounted behind or next to another object as this
may impair the unit’s transmission performance and connectivity.
