IT Infrastructure RAP/RAC1000
28
© ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen
5.3
I
NTERFACE
O
VERVIEW

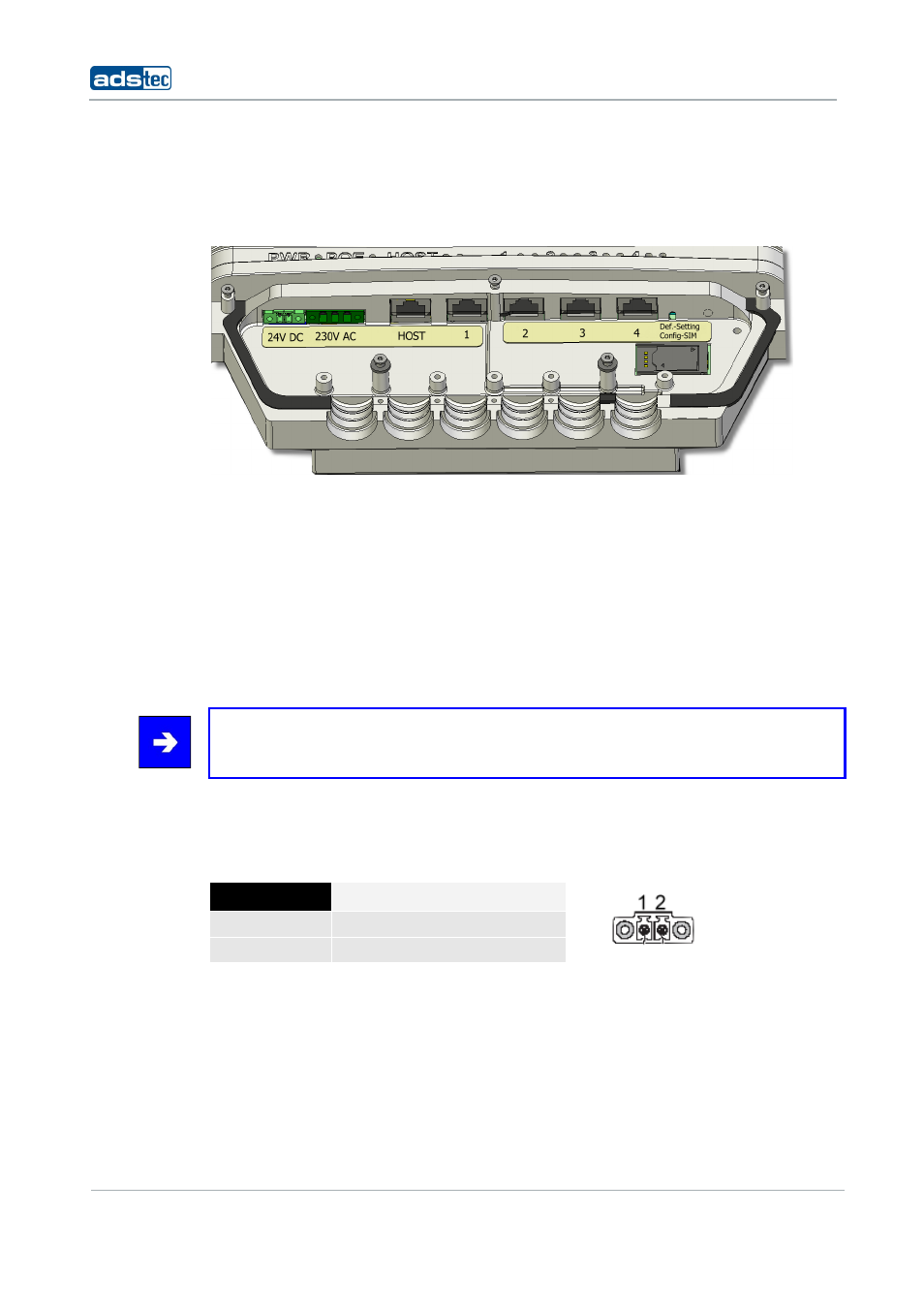

The following figure shows the available device interfaces. The exact interfaces may differ
depending on the device variant.
The device is equipped with the following interfaces:
1.
Power 24V DC power supply (two-pole COMBICON plug)
2.
Power 230V AC power supply (three-pole COMBICON plug)
3.
HOST RJ45 or Optical connector
4.
SWITCH 4x RJ45 connector (optional feature for Access Client)
5.
Default reset button
6.
SIM card reader
Note:
Input voltages may be connected redundantly (i.e. Power 24V DC, Power 230V AC).
5.3.1
P
OWER
S
UPPLY
24V
DC
A bushing terminal with threaded connector is used to establish the power supply
connection (diagram shows bushing inside device).
PIN NUMBER
SIGNAL NAME
1
24V DC
2
0V DC
PIN 1: = L+
24V DC power supply
PIN 2: = GND Ground
