SECTION 5 - HYDRAULICS

3121180

– JLG Lift –

5-5

4

5

12

24

13

13

15

18

25

20

16

19

17

7

2,3,22

23

14

1,2,21

10

26

27

8

6

6

9

6

6

1. Loctite #242
2. Locking Primer
3. Loctite RC609
4. Bolt
5. Tapered Bushing

6. Composite Bushing
7. Head
8. Barrel
9. Rod
10. O-Ring Plug

11. Not Used
12. Piston
13. Wear Ring
14. Washer Ring
15. Backup Ring

16. Wear Ring
17. Backup Ring
18. O-Ring
19. O-Ring
20. Setscrew

21. Bolt
22. Wiper
23. Seal
24. T-Seal
25. Spacer Tube

26. Valve Cartridge
27. Valve Cartridge

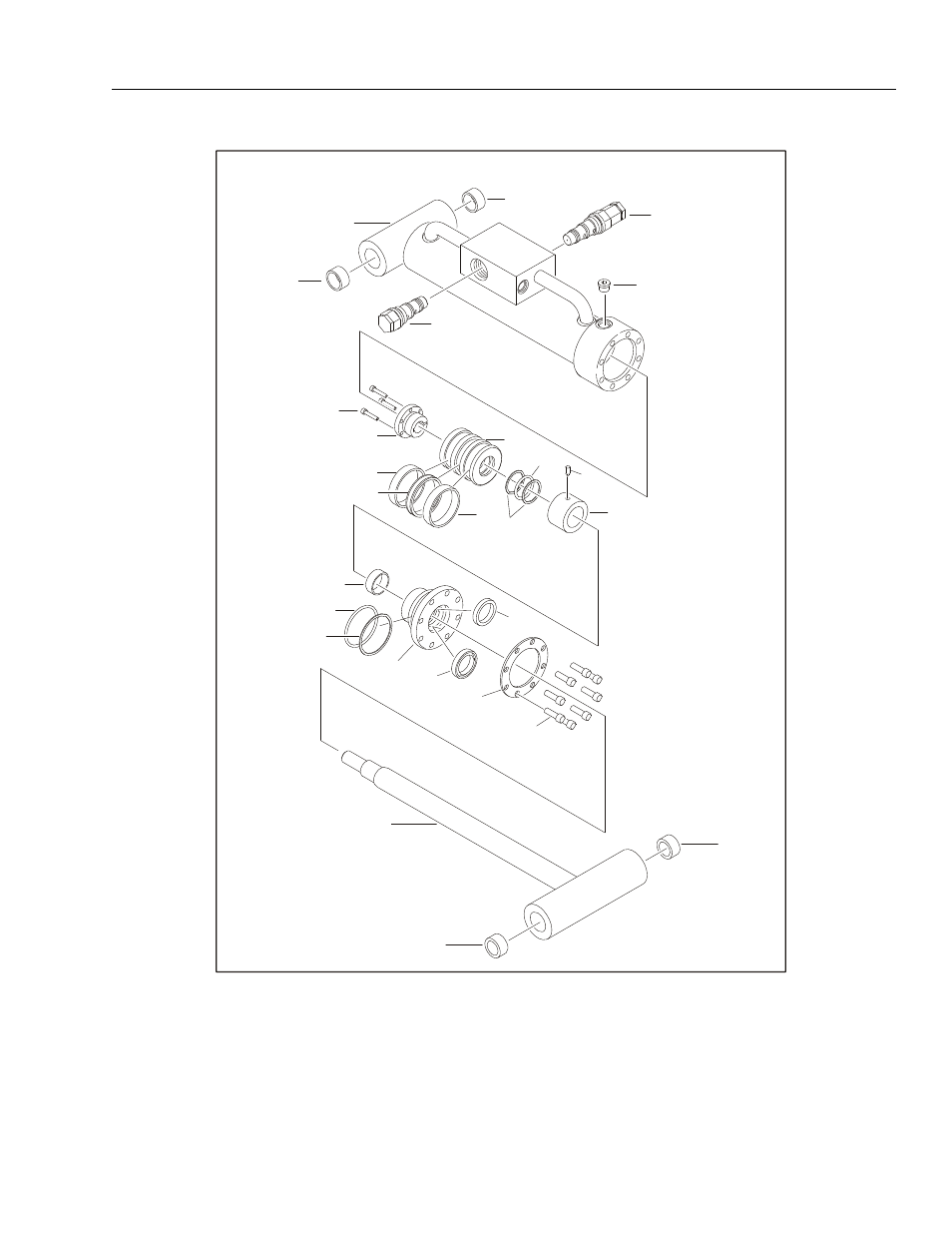

Figure 5-6. Platform Level Assembly (450A)

1684165 A
