SECTION 3 - CHASSIS & TURNTABLE
3121180 – JLG Lift – 3-53
23. Turn housing over and remove swashplate (39) by
lifting on end opposite servo lever.
24. Remove servo piston (40). Remove piston seal (41)
and O-ring (42) from servo piston. Discard seal and
O-ring.
25. Remove journal bearings (43) from housing. If bear-
ings will be reused, note location and orientation of
each bearing for reassembly.
26. Remove pistons (44) and slipper retainer (45) from
cylinder block (46).
NOTE: Pistons are not selectively fitted. Units with high
hourly usage may develop wear patterns. Number
pistons and bores for reassembly if they will be
reused.
27. Remove ball guide (47), hold-down pins (48), and
retaining ring (49) from cylinder block.
NOTE: Most repairs do not require block spring removal.
Perform this procedure only if you suspect problems
with the block spring.
41
42
40
Lift here
39
43

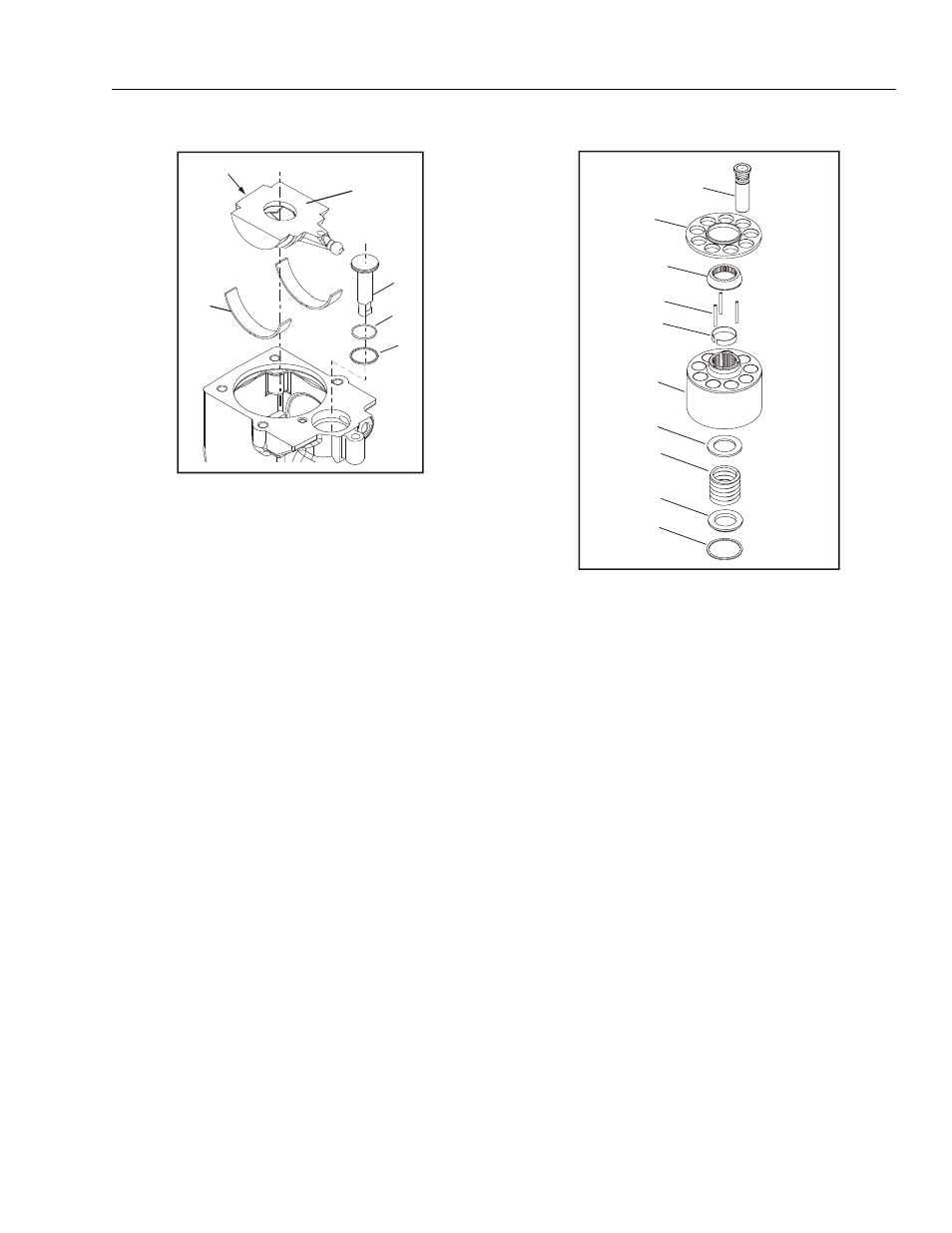

39. Swashplate
40. Servo Piston
41. Piston Seal
42. O-ring
43. Journal Bearings
Figure 3-34. Swash Plate & Servo Piston
51
50
52
53
46
49
48
47
45
44
44. Piston
45. Slipper Retainer
46. Cylinder Block
47. Ball Guide
48. Holddown Pins 49. Retaining Ring
50. Block Spring Washer
51. Spiral Retaining Ring
52. Block Spring
53. Inner Block Spring Washer
Figure 3-35. Cylinder Kit Disassembly
