SECTION 3 - CHASSIS & TURNTABLE
3-194
– JLG Lift –
3121180
DTC 643- 5 Volt External High Voltage
• Engine Control Module.
• Check Condition- Key on.
• Fault Condition- ECM 5-volt output is above the
acceptable limit.
• Corrective Action(s)- Illuminate MIL and/or sound audi-
ble warning or illuminate secondary warning lamp.
• Non-emissions related fault.
The ECM supplies 5-volt power to sensors, switches, and
actuators external to the ECM. By supplying the power to
these devices, the ECM can accurately measure their out-
put relative to its own ground reference. The ECM can
also control when devices are active and put devices in a
low or no power state based on current operating condi-
tion of engine or vehicle.
If this fault sets, something other than the ECM is drawing
the 5-volt power output of the ECM above an acceptable
threshold. This may be due to a short in the wire harness,
malfunctioning device, or failure of the ECM power output
circuitry.
Diagnostic Aids
• Measure 5-volt ECM output while cycling key on and
engine stopped. Verify output is lower than fault thresh-
olds configured in diagnostic calibration.
• Inspect 5-Volt output circuit in wire harness and look
for shorts to ground or other harness circuits.
• Disconnect each device powered by the ECM 5-volt
output one-at-a-time. Powered devices may include
the throttle actuator, smart sensors, smart actuators,
etc. After disconnecting device, observe system fault
and determine if fault has cleared. If fault clears, trou-
bleshoot disconnected device for failures.
• With all 5-volt powered devices disconnected, look for a
change in fault state, measure the ECM 5-volt output
and verify it is within acceptable limits.
E
le
c
tro
n
ic
T
h
ro
ttle
A
c
tua
to
r w
/S
e
ria
l
P
o
s
itio
n
F
e
e
d
b
a
c
k
2
1
6
1
3
1
2
1
5
V
_
e
x
t
V
s
=
+
5
V
D
C
5
V
_
rtn
T
P
S
1
T
P
S
S
E
R
+
+
-M
o
to
r
D
B
W
-
D
B
W
+
E
C
M
H
-B
rid
g
e
1
9
T
P
S
S
E
R
-
S
e
ria
l x
m
itte
r

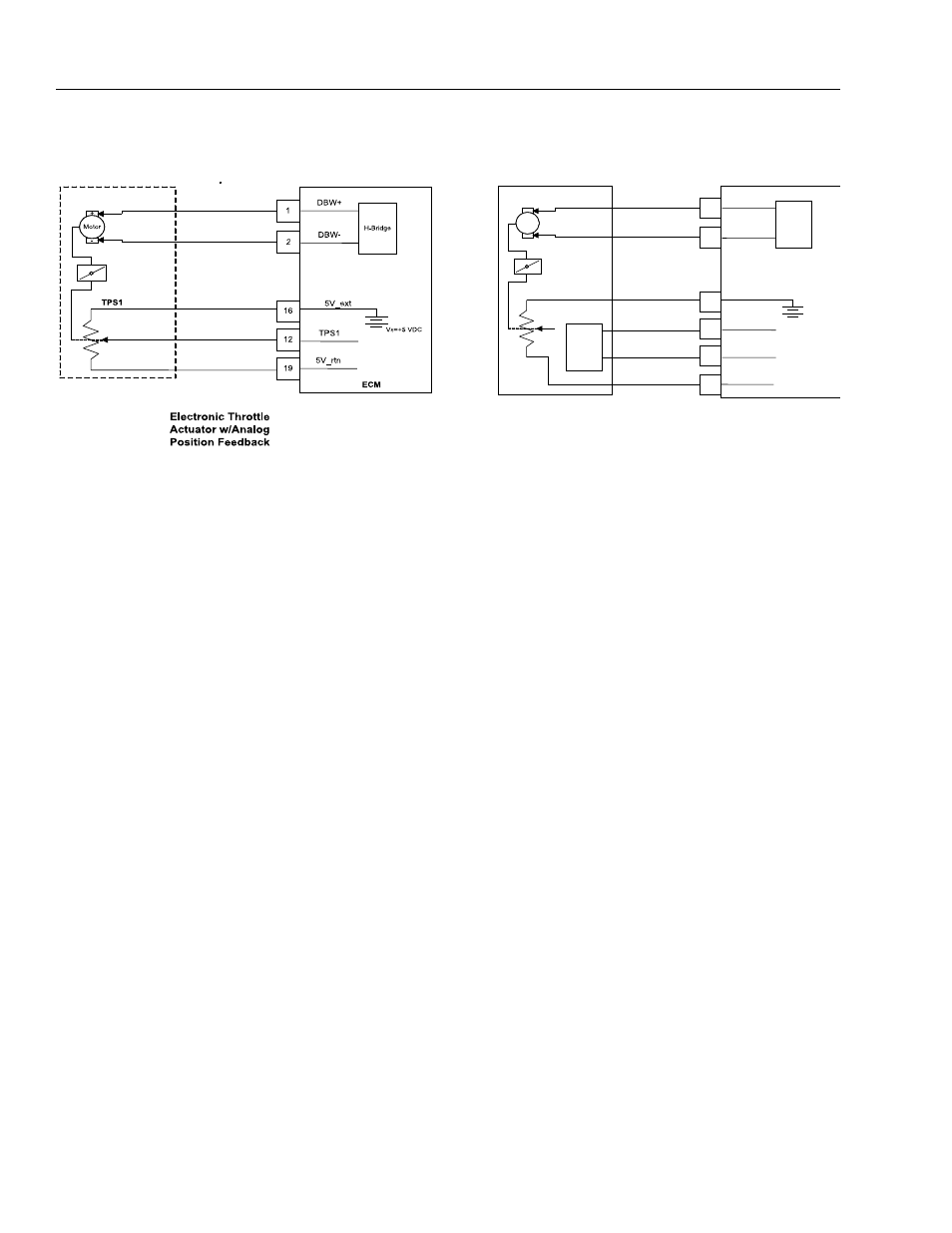

Electronic Throttle
