SECTION 3 - CHASSIS & TURNTABLE
3-60 – JLG Lift – 3121623

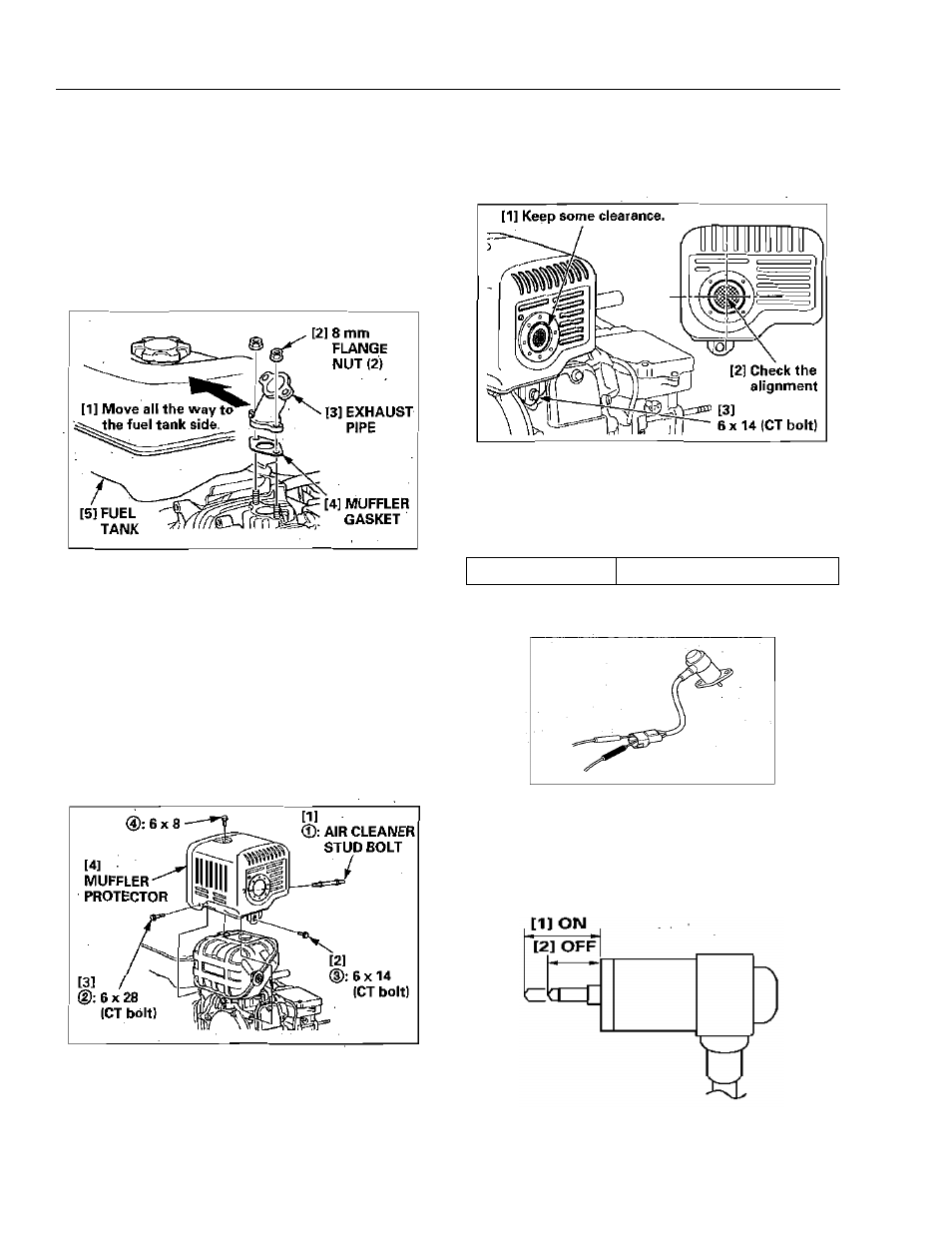

EXHAUST PIPE/MUFFLER PROTECTOR
INSTALLATION:
1. Attach a new muffler basket and exhaust pipe to the
cylinder head.
2. Move the exhaust pipe all the way to the fuel tank
side and tighten the 8 mm flange nuts.
3. Attach a new muffler gasket B and muffler to the
exhaust pipe. Tighten the I x 14 mm CT bolt on the
muller stay.
4. Tighten the 8 mm flange nuts to install the muffler on
the exhaust pipe.
After tightening the flange nuts. be sure the muffler
gasket and exhaust pipe are closely attached
together.
5. Put the muffler protector on the muffler and then
loosely tighten the bolts in the numbered sequence
as shown.
6. Align the center of the muffler' protector exhaust slot
wit) the reenter of. the spark arrester, and tighten the
6 x 14 mm CT bolt under the echoed! slot securely.
7. Keep some clearance between the exhaust slot and
the spark arrester, and tighten the other three bolts
securely.
FUEL CUT SOLENOID
Measure the resistance between the terminals.
When 12V battery voltage is applied, check that the fuel
cut solenoid operates normally.
Check the extended length of the needle at ON (battery
connected) position and OFF (battery removed) position.
Specified resistance 3.8 - 5.8 Ω
