SECTION 3 - CHASSIS & TURNTABLE
3121623 – JLG Lift – 3-127

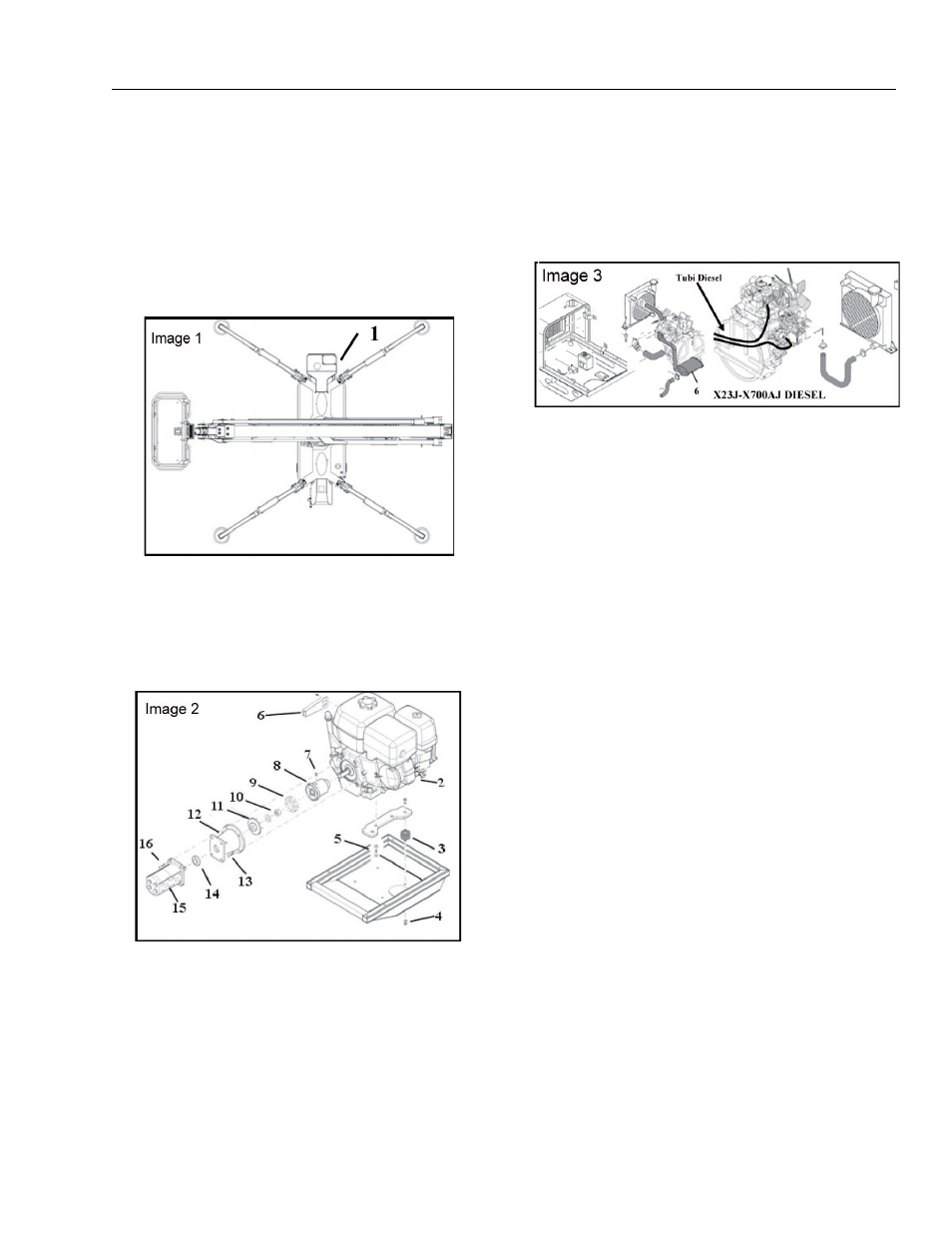

3.10 ENGINE REMOVAL
1. Stabilize and turn the machine on level surface at
90° (image 1).
2. Remove the key ignition, and a tag with warning do
not start the machine.
3. Remove the cover 1. (image 1)
4. Disconnect, tag and isolate the wires from the
engine.
NOTE: On X23J-X700AJ diesel disconnect the oil pipes and cool-
ing lines, than drain the 2 circuities.
5. Unscrew the screws (13-5 image 2).
6. Remove the engine (Kg 70), remove the joint (8-9
Image 2) .
7. Remove the muffler (6 Image 2).
8. Replace the engine and tighten the screws (13-5
Image 2) respectively with the copies of tightening of
22Nm and 25Nm.
9. Connect the wires to the motor.
10. Replace guard on motor (1) and test the machine.
