NOTE: The following are general procedures that apply to all of
the cylinders without sensor. Procedures that apply to a
specific cylinder will be so noted

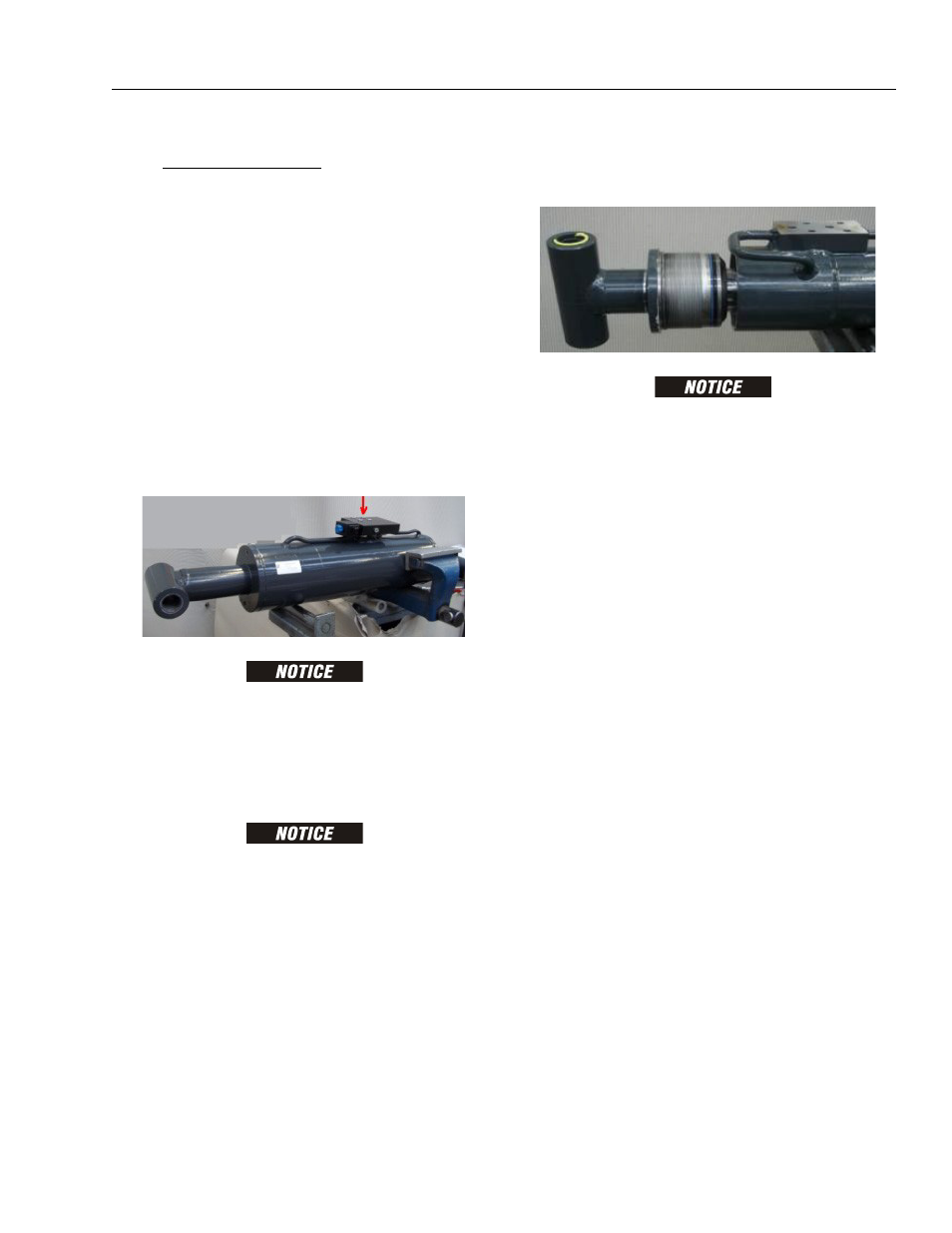

CYLINDER REPAIR WITHOUT SENSOR
Rod Removing
General Cylinder Disassembly
1. Clean the cylinder with a suitable cleaner before dis-
assembly. Remove all dirt, debris and grease from
the cylinder.
2. Clamp the barrel end of the cylinder in a soft-jawed
vise or other acceptable holding equipment if possi-
ble.
AVOID USING EXCESSIVE FORCE WHEN CLAMPING THE CYLIN-
DER IN A VISE. APPLY ONLY ENOUGH FORCE TO HOLD THE CYL-
INDER SECURELY. EXCESSIVE FORCE CAN DAMAGE THE
CYLINDER TUBE.
Remove the counterbalance valve from the side of the cyl-
inder barrel.
DO NOT TAMPER WITH OR ATTEMPT TO ADJUST THE COUNTER-
BALANCE VALVE CARTRIDGE. IF ADJUSTMENT IS NECESSARY,
REPLACE THE COUNTERBALANCE VALVE WITH A NEW PART.
NOTE: Cylinder can have residual pressure inside.
When the cylinder has been emptied pull out the rod ~
15mm and loosen the head until ~ 15mm.
WHEN SLIDING THE ROD AND PISTON ASSEMBLY OUT OF THE
TUBE, PREVENT THE THREADED END OF THE TUBE FROM DAM-
AGING THE PISTON. KEEP THE ROD CENTERED WITHIN THE
TUBE TO HELP PREVENT BINDING.
