SECTION 4 - BOOM & PLATFORM
4-16
– JLG Lift –
3121623
Installation and maintenance manual
TECHNICAL DATA

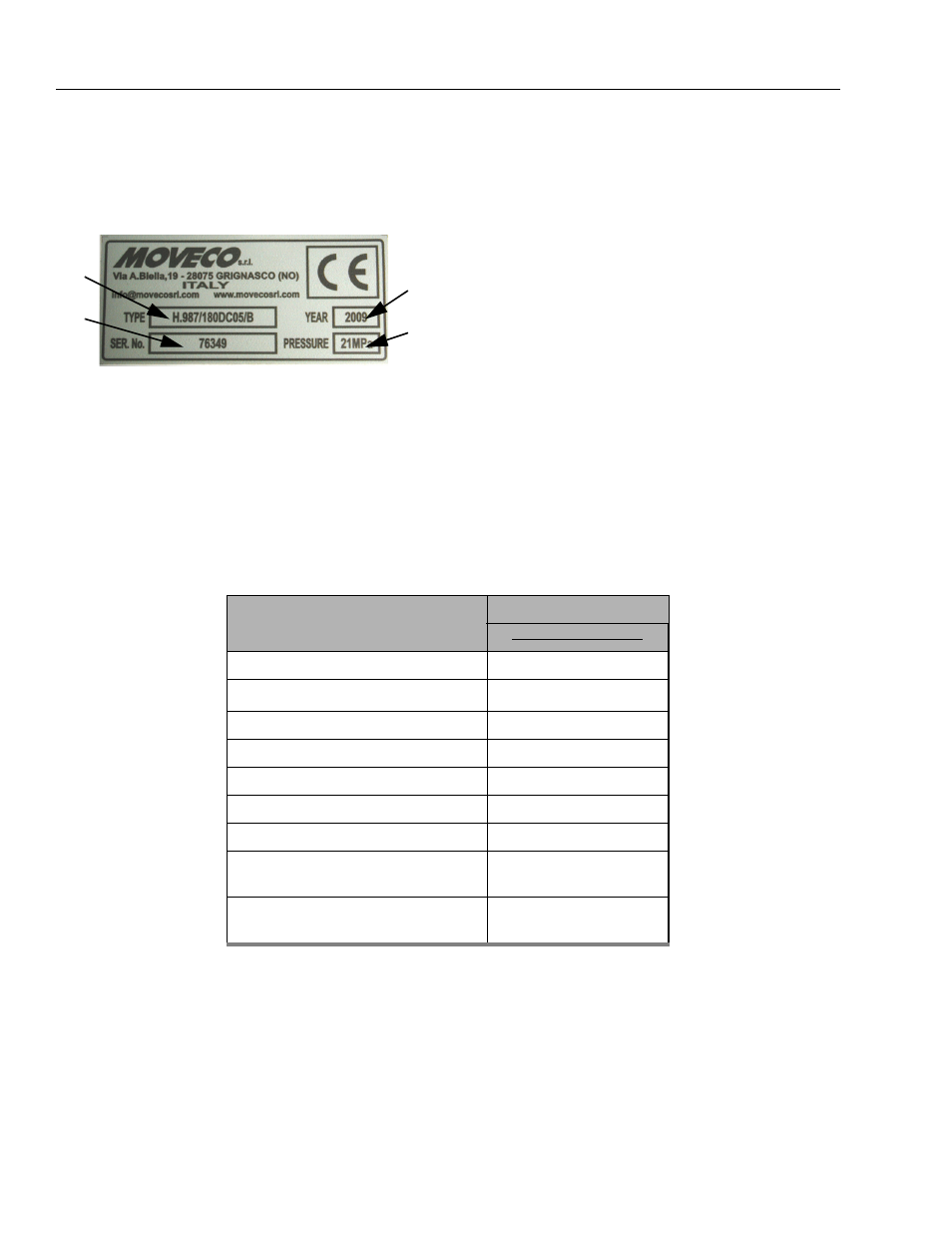

a. Rotary actuator model.
b. Construction year.
c. Serial number. Please refer to this number in
order to obtain every further details from our
technical department.
d. Max working pressure.
For more information and other details see technical draw-
ing.
a
c
b
d
Technical Data
Actuator Model
RP.17/L25H1D2VPH
Rotation Angle
124°
Displacement (cm
3
)
~ 81
Weight (kg)
~ 16
Ports
¼ G
Working temperature (°C)
- 20 / + 80
Max. torque at 210bar (Nm)
505
Max. working pressure (bar)
210
Max. Capacity straddle mount / canti-
lever mount (Nm)
2800 / 1400
Max. capacity:
thrust / radial (N)
5000 / 14000
