SECTION 6 - JLG CONTROL SYSTEM
3121623
– JLG Lift –
6-59
2 - MOTION ALARM (BEEPER)
This menu allows the set ON or OFF of the motion alarm
with upper fame and undercarriage movements, or for
boom down only.
1. Press button 7 "SETUP“.
2. Press button 5 “PASSWORD”.
Using the remote control buttons to enter the pass-
word "Level 2": 8365.
NOTE: password above allow to choose the options shown on the
screen.

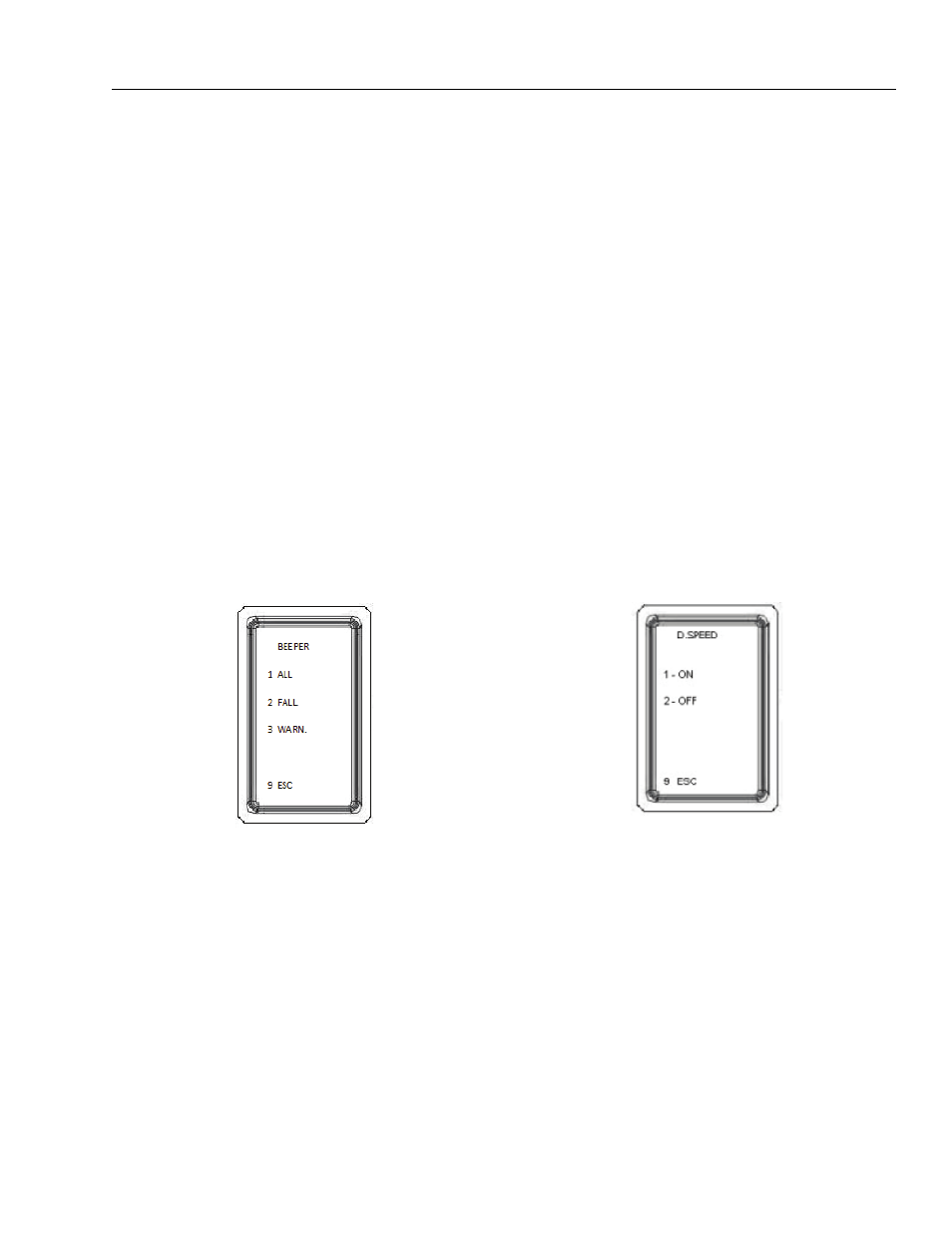

Once the correct password is accepted the display
shown “OK”.
3. Press button 9 “ESC”.
Repeat the above steps if “NO” appear on the dis-
play.
4. Press button 3 ”EXTRA”
5. Press button 1 "OPTIONAL"
6. Press button 2 “BEEPER”.
7. Press button 1 ALL to activate all movements.
8. Press button 2 “FALL to activate the descent move-
ments only”.
9. Button 3 "WARN" spare (not available)
Press 5 times button 9 Esc to escape.
NOTE: Using the password "Level 3" 3336 to read the values
only
3 - 2
ND
DRIVE SPEED
This menu allows to set ON or OFF of the high drive
speed on models with this option.
1. Press button 7 SETUP “.
2. Press button 5 “PASSWORD”.
Using the remote control buttons to enter the pass-
word "Level 2": 5216.
NOTE: password above allow to choose the options shown on the
screen.
Once the correct password is accepted the display
shown “OK”.
3. Press button 9 “ESC”.
Repeat the above steps if “NO” appear on the dis-
play.
4. Press button 3 ”EXTRA”.
5. Press button 1 "OPTIONAL"
6. Press button 3”D.SPEED”2 “.
7. Press button 1 ON to activate 2
ND
DRIVE SPEED.
8. Press button 2 “OFF to deactivate the 2
ND
DRIVE
SPEED.
Press 5 times button 9 Esc to escape.
