SECTION 6 - JLG CONTROL SYSTEM
6-106 – JLG Lift – 3121623
RAMHINO LITHIUM SETTING PROCEDURES

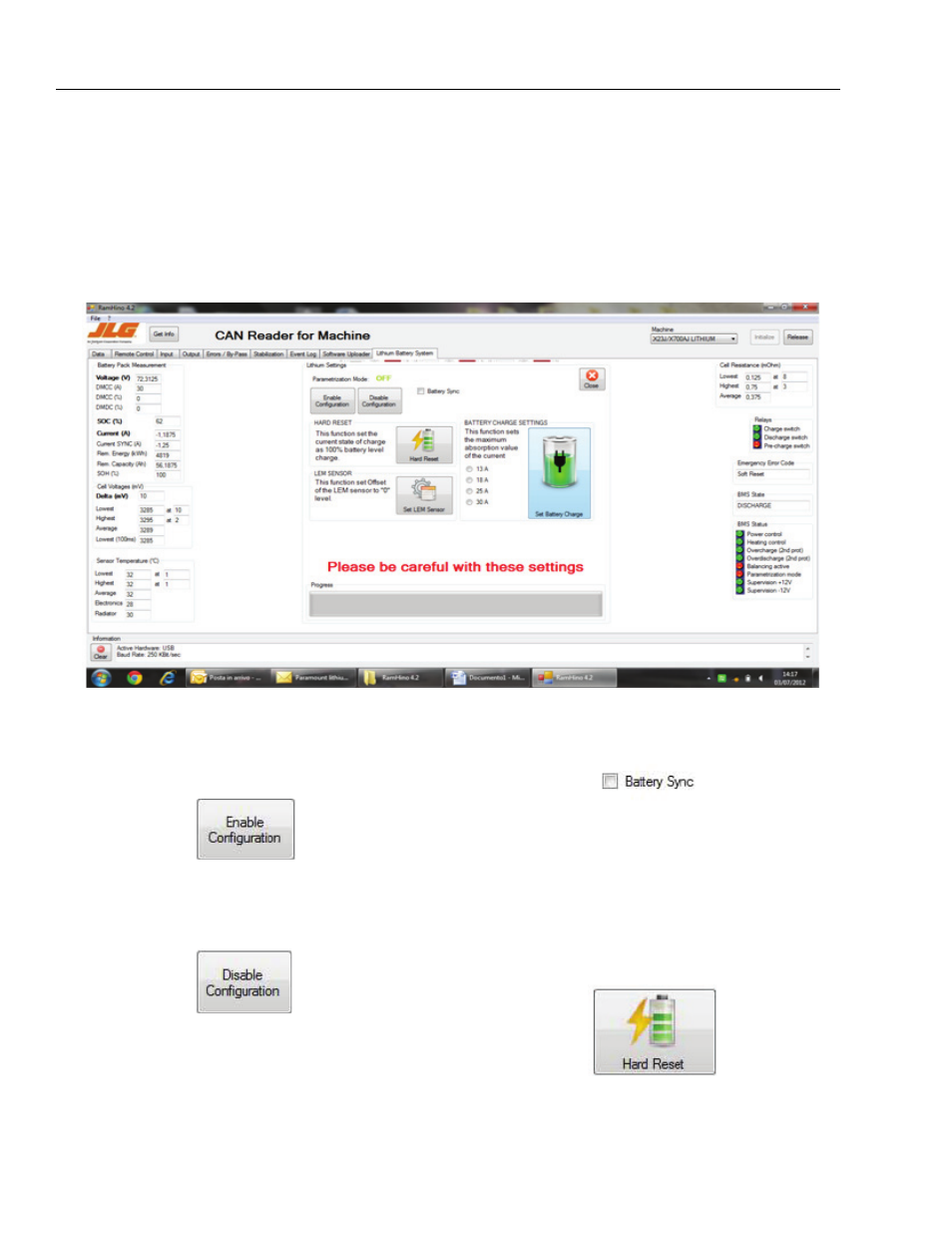

Once the Rahmino tool is connected and initialized, open
the lithium battery system folder.
Press Z + P at the same time. Password is h1n0w4. The
settings screen below will appear:
ENABLE CONFIGURATION: Button for the lithium pack
contactor opening. Opening the contactor the state
“parametrization” become ON.
Figure 6-106.
DISABLE CONFIGURATION: Button for the lithium pack
contactor closing.
Figure 6-107.
BATTERY SYNC: Flag to restart the can bus communica-
tion if interrupted.
Figure 6-108.
SOC RESET PROCEDURE:
SOC indicates the charge percentage of the pack consid-
ering the total pack capacity.
BE CAREFUL: pressing that button the process of SOC
reset is automatically starting. The current status of pack
charge is becoming the 100% of the pack capacity.
Figure 6-109.
