SECTION 3 - CHASSIS & TURNTABLE

3-118

– JLG Lift –

3121623

BMS CONNEXION BOARD

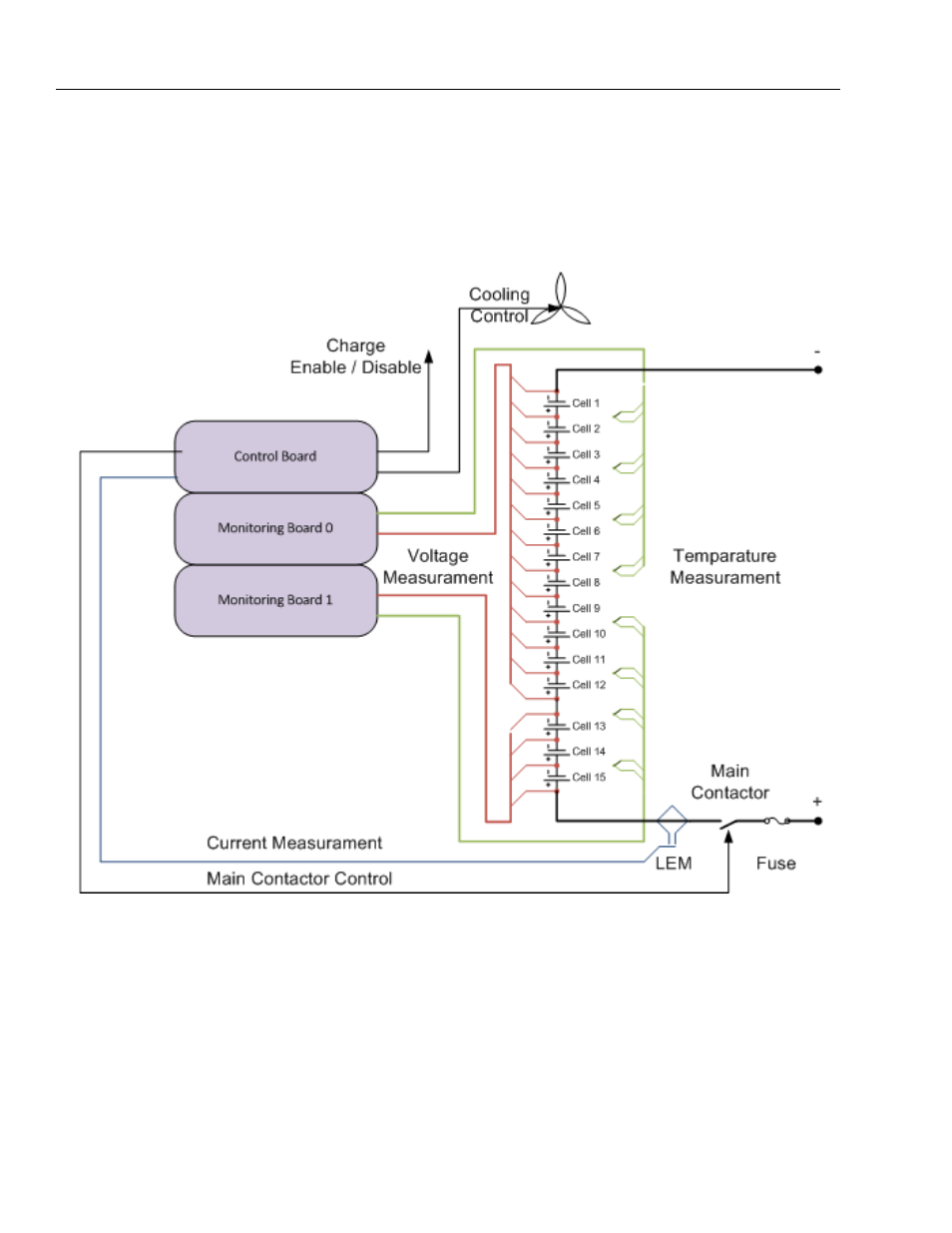

Figure below shows the wiring interface between battery
pack and BMS. In particular temperature, voltage of the
single cells and the system power absorption controls are
highlighted.

Figure 3-46.
