Seventh Group (BMS Status)
The following parameters are internal the BMS, so we can-
not manage them.
However their status can be helpful at the BMS supplier in
case of failure.

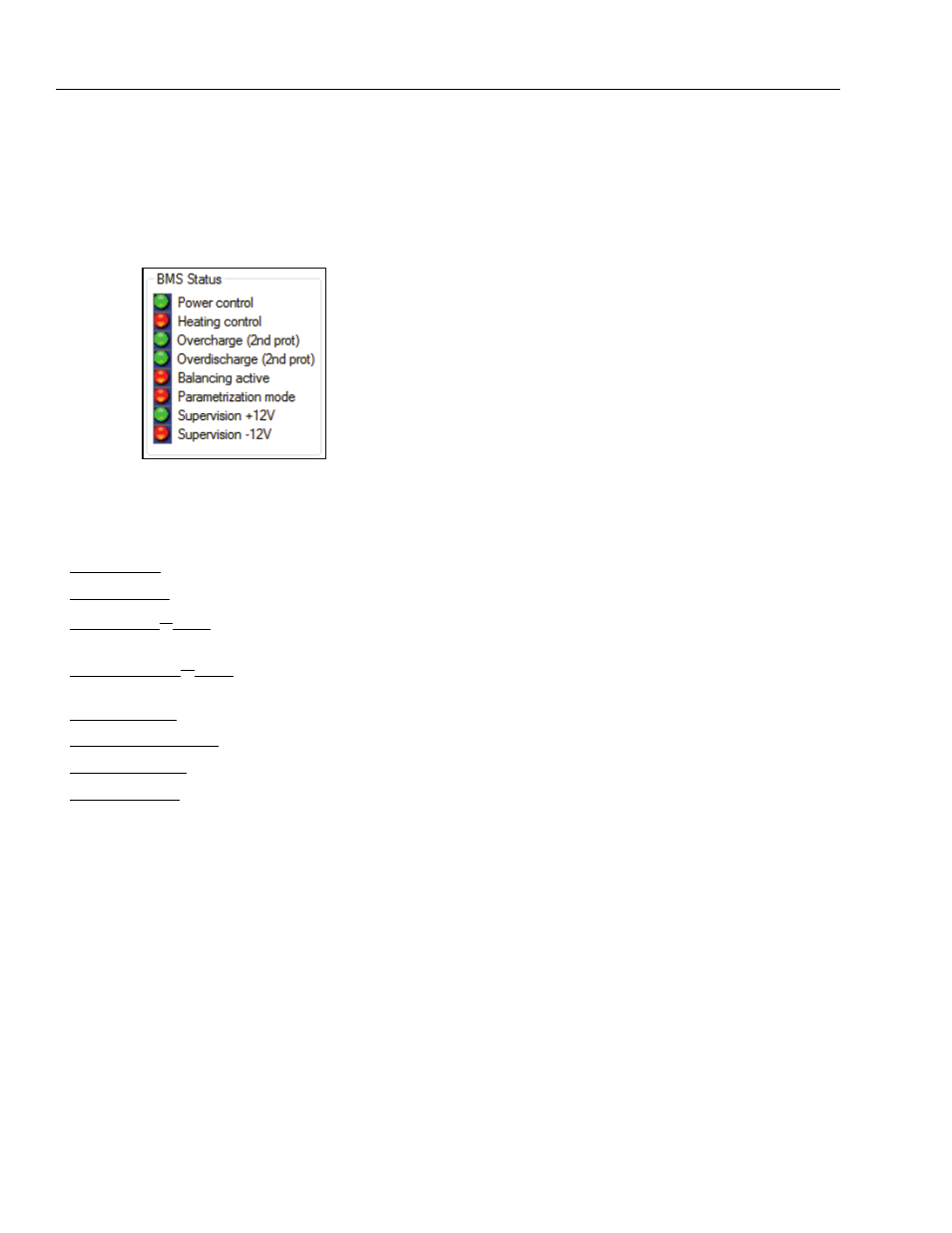

Figure 6-105.
Power control: Microcontroller supply ON/OFF.
Heating control: Heating control ON/OFF.
Overcharge (2 nd prot): Secondary protection overcharged
reached.
Overdischarge (2 nd prot): Secondary protection overdis-
charged reached.
Balancing active: Balancing active on at least one cell.
Parameterization mode: Parameterization mode ON/OFF.
Supervision +12V: +12 Volt confirmation.
Supervision -12V: - 12 Volt confirmation.
