FUEL FILTER BASE - REMOVE AND INSTALL
REMOVAL PROCEDURE
DO NOT ALLOW DIRT TO ENTER THE FUEL SYSTEM. THOR-
OUGHLY CLEAN THE AREA AROUND A FUEL SYSTEM COMPO-
NENT THAT WILL BE DISCONNECTED. FIT A SUITABLE COVER
OVER DISCONNECTED FUEL SYSTEM COMPONENT.
CARE MUST BE TAKEN TO ENSURE THAT FLUIDS ARE CON-
TAINED DURING PERFORMANCE OF INSPECTION, MAINTE-
NANCE, TESTING, ADJUSTING AND REPAIR OF THE PRODUCT.
BE PREPARED TO COLLECT THE FLUID WITH SUITABLE CON-
TAINERS BEFORE OPENING ANY COMPARTMENT OR DISASSEM-
BLING ANY COMPONENT CONTAINING FLUIDS. DISPOSE OF ALL
FLUIDS ACCORDING TO LOCAL REGULATIONS AND MANDATES.
KEEP ALL PARTS CLEAN FROM CONTAMINANTS. CONTAMI-
NANTS MAY CAUSE RAPID WEAR AND SHORTENED COMPONENT
LIFE.
NOTE: Place identification marks on all hoses for installation
purposes. Plug all hoses and all the ports in the fuel filter
base. This helps prevent fluid loss, and this helps to keep
contaminants from entering the system.

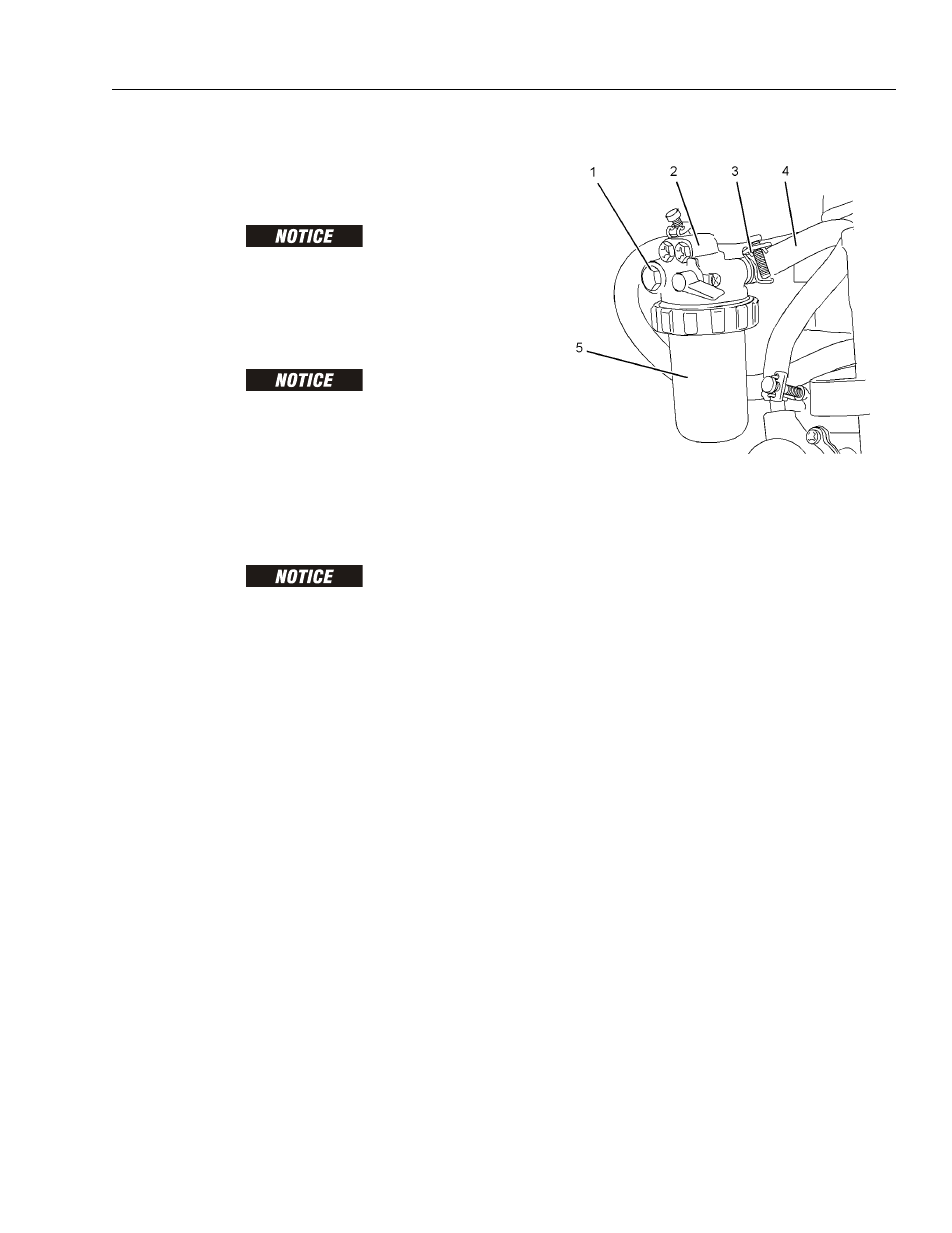

1. Turn the fuel supply to the OFF position.
2. Loosen hose clamps (3) and disconnect hoses (4).
3. If necessary, remove fuel filter element (5). Refer to
Operations and Maintenance Manual, “Fuel System
Filter - Replace”.
4. Remove bolt (1) and remove fuel filter base (2) from
the mounting bracket.
