SECTION 6 - JLG CONTROL SYSTEM
3121623
– JLG Lift –
6-7
PUSH BUTTONS
The buttons have a dual function: they can be used to
select machine functions or as numerical keys in the ser-
vice submenus.
They in fact feature an icon that represents their meaning
and a number for use as a numerical keypad.
An emergency STOP button is also available which, when
pressed, stops the motor and brings the machine to a
standstill.
The pressed position of the emergency STOP button is
represented on the display in position 7.
To make the machine operational again, the button must
be turned and released.
For the description of the individual functions, see para-
graph 6 Using the machine.

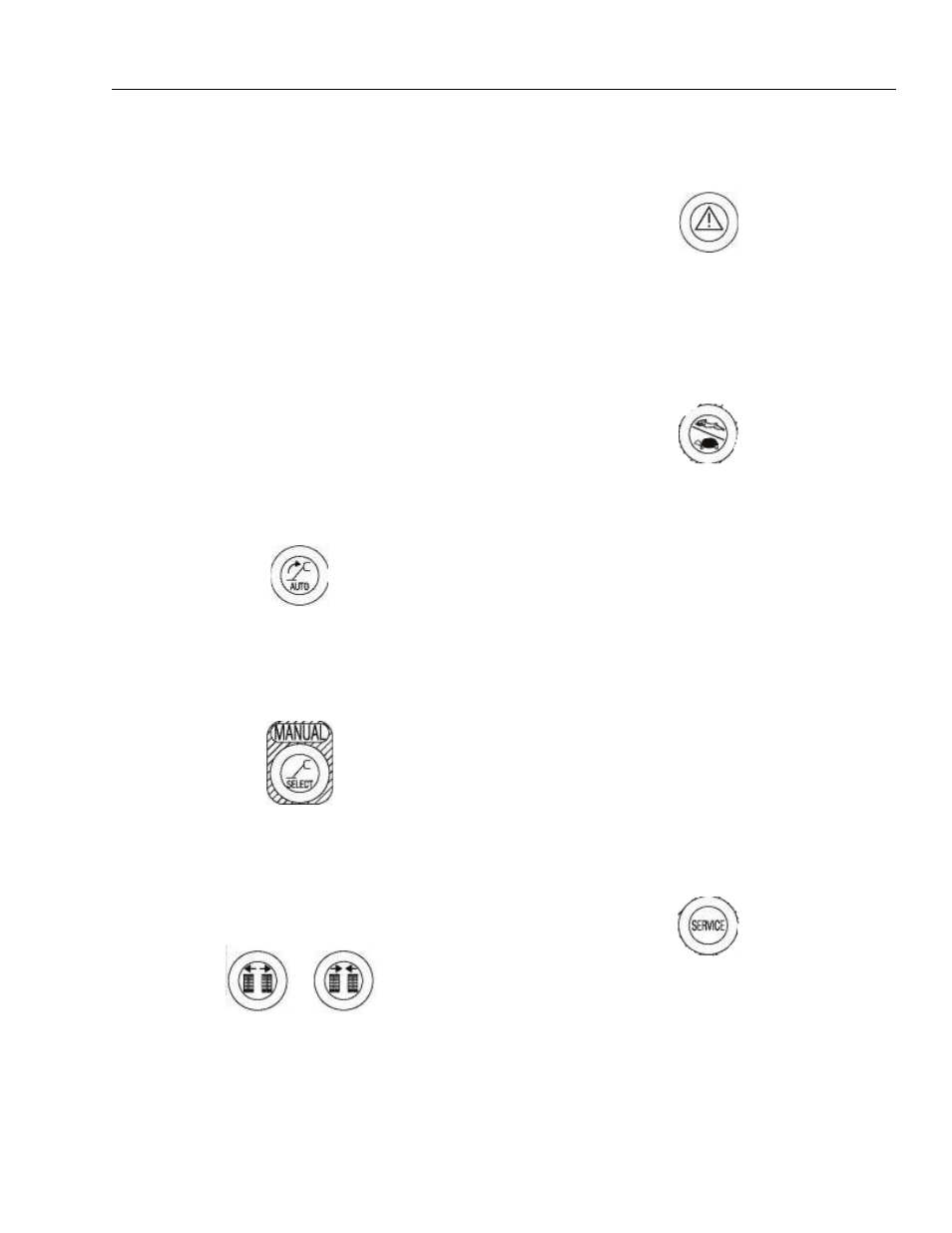

BUTTON 1:
Figure 6-22. Used to automatically raise the stabilizers.
BUTTON 2:
Figure 6-23. Enters the menu for the manual movements
of the individual stabilizers.
BUTTONS 3-9:
Figure 6-24. Used to extend and narrow the tracked
undercarriage.
BUTTON 4
Figure 6-25. Used to enable control of the emergency
descent from the basket. Confirmation that the operation
is enabled is displayed on the screen in position 8.
BUTTON 5:
Figure 6-26. Used to select the travel speed and the
engine/motor speed.
There are three speeds available:
• SLOW: engine at idle for the operation of the aerial part,
at medium for the operation of the drive. Lowest drive
speed.
•NORMAL: variable rpm according to the selected move-
ment. Travel motors always with maximum displacement,
therefore medium travel speed
•FAST: variable rpm according to the selected movement.
Travel motors in automatic displacement variation mode,
therefore maximum travel speed.
The three speeds are selected by pressing button 5 in
sequence, with a cyclical routine. The selected speed is
displayed on the screen in position 4.
BUTTON 6:
Figure 6-27. Enters the auto service menu
