SECTION 3 - CHASSIS & TURNTABLE
3121623 – JLG Lift – 3-109
Hereby the features and functioning of the different com-
ponents of the system will be analyzed:

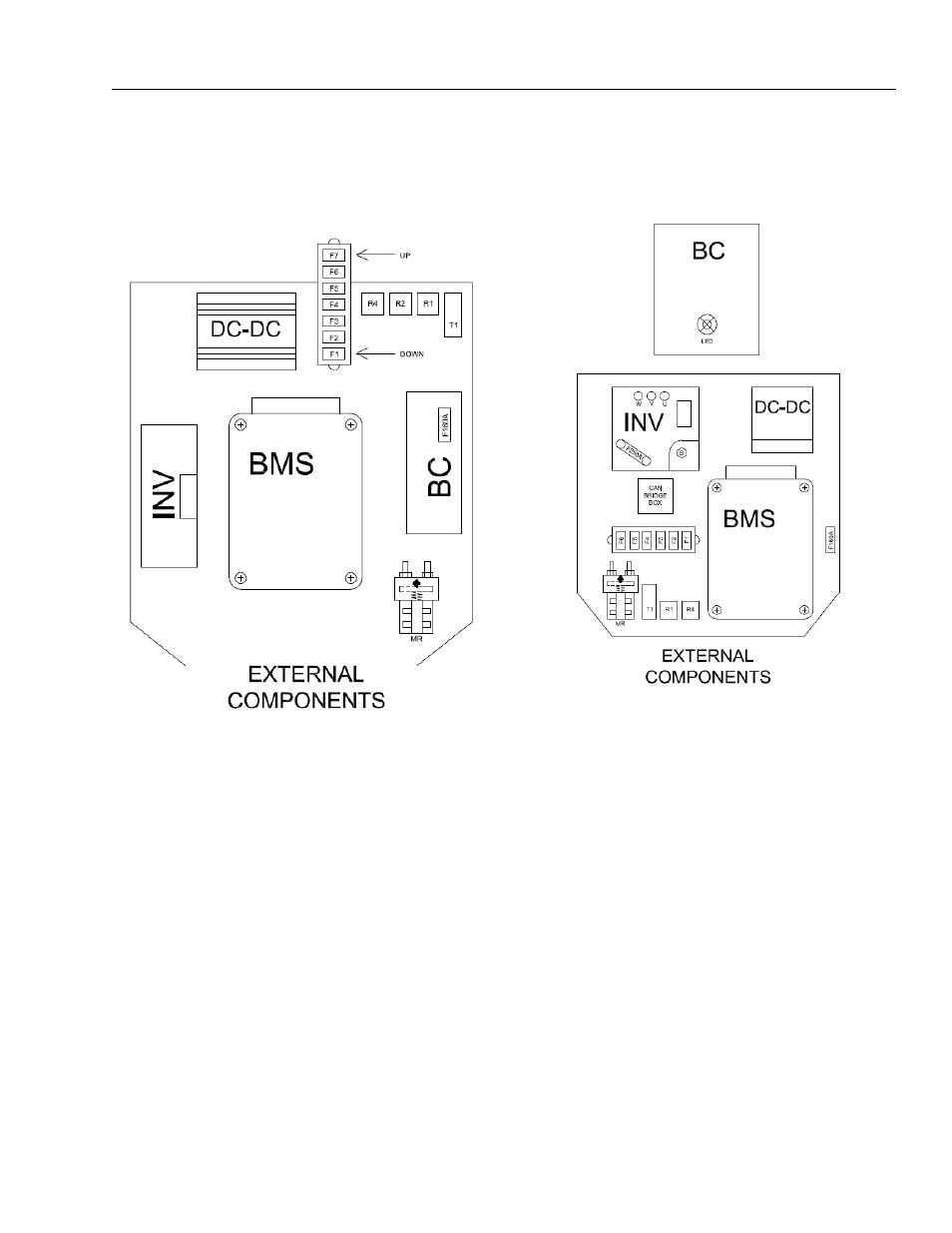

LITHIUM BATTERY PACK COMPONENTS
Figure 3-39. 48 Volt Battery Pack
Caption:
BC = Battery Charger
BMS = Battery Management System
Can Bridge Box = Can Bus Lines Bridge
DC-DC = Electronic Current Transformer, from 48/72 Volt
DC to 12 Volt
F N° = Fuse Number Identification
INV = Inverter
Led = Battery Charger Lamp
MR = External main contactor
R N° = Relay Number Identification
T1 = Timer for Fans
Figure 3-40. 72 Volt Battery Pack
