SECTION 6 - JLG CONTROL SYSTEM
6-2 – JLG Lift – 3121623
6.2 PLATFORM/REMOTE CONTROL STATION
LCD DISPLAY
At machine start-up and during machine operation the
main LCD display screen (Figure
6.1) is activated. There
are eight (8) display positions which indicate machine sta-
tus during various stages of operation.
The remote control is made up of buttons, joysticks, a key
selector switch and a display.
The display is used to view the status of the machine and
the operating information necessary or useful for the oper-
ator.
When the machine’s main control board is powered via
the engine key, the information to be shown on the display
is sent to the remote control.
1 2 3 4 5 6 7 8
9

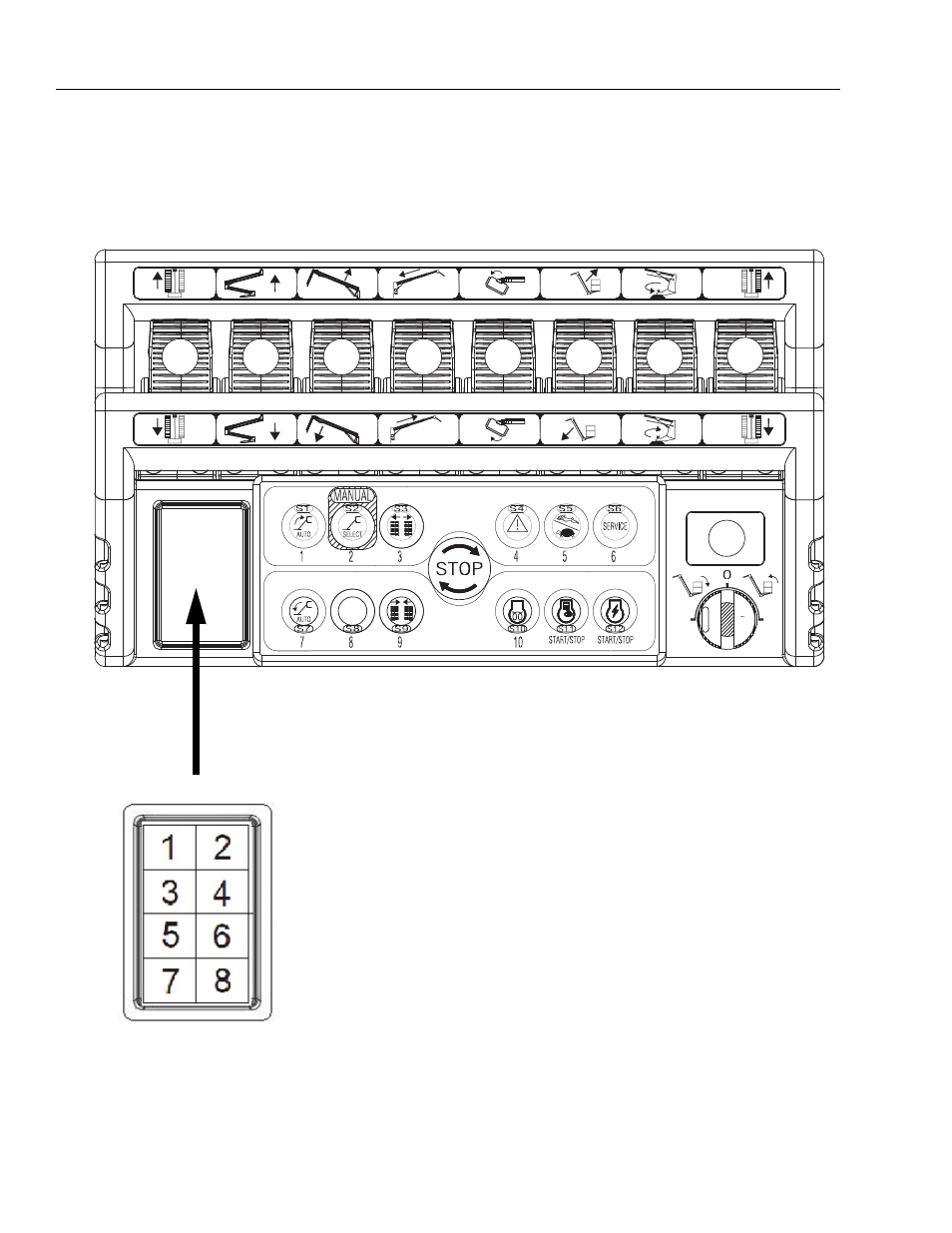

Figure 6-1. REMOTE CONTROL
