SECTION 5 - HYDRAULICS
3121623 – JLG Lift – 5-35
5.5 PRESSURE SETTING PROCEDURE
Cold temperatures have a significant impact on pressure
readings. JLG Industries Inc. recommends operating the
machine until the hydraulic system has warmed to normal
operating temperatures prior to checking pressures. JLG
Industries Inc. also recommends the use of a calibrated
gauge. Pressure readings are acceptable if they are within
± 5% of specified pressures.
Control Valve (Chassis functions)

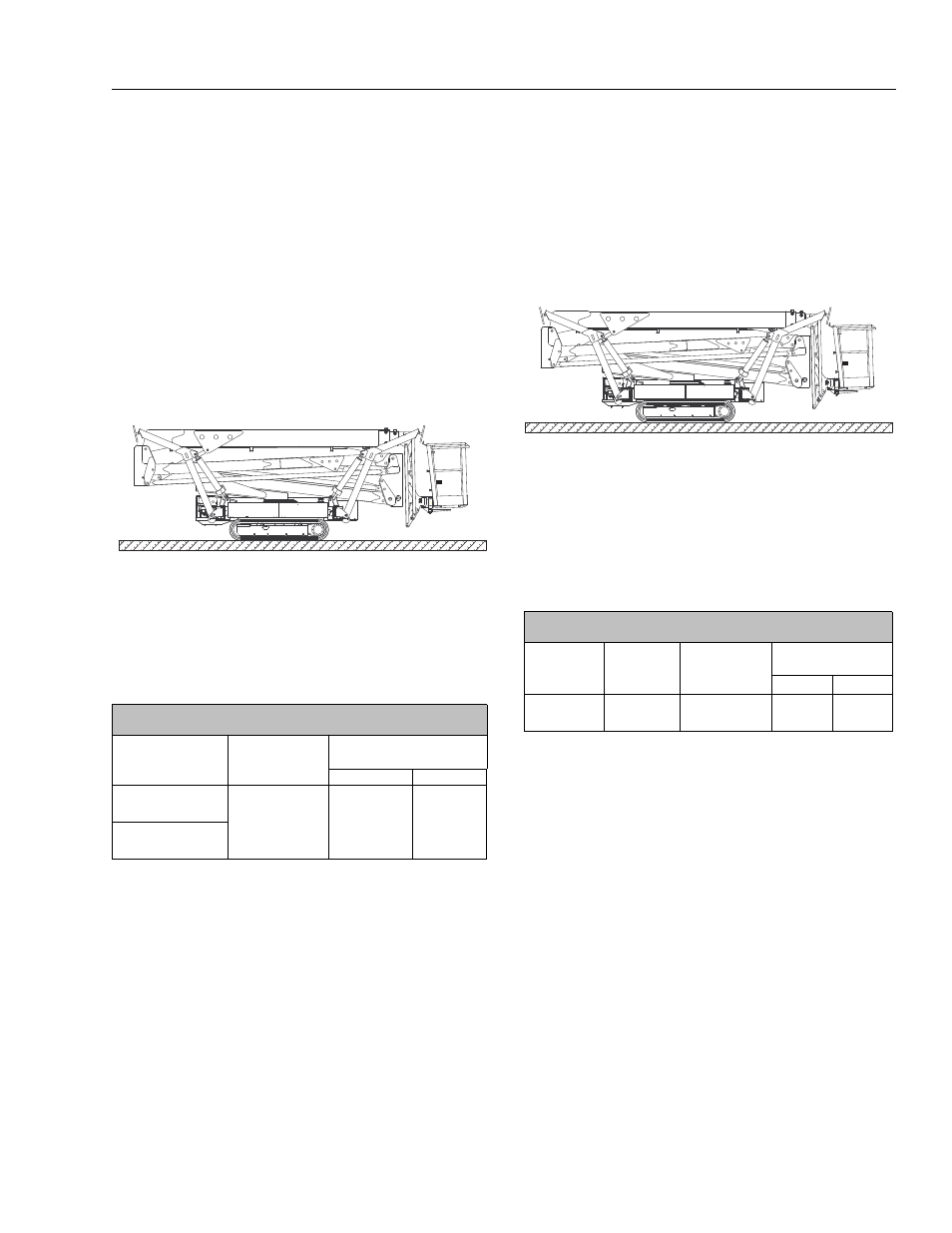

1. Machine completely closed.
2. Install the pressure gauge at the port marked MA
Figure xx.
3. Activate the function outrigger IN on remote control.
4. Verify that the pressure is as on Table below.
Figure 5-5.
To adjust the relief valve, turn clockwise to increase, turn
counterclockwise to decrease the pressure.
Automatic reductions drive speed (X17JP-
X500AJ only)
Adjust pressure reducing valve (only X17JP - X500AJ)
1. Adjust the pressure when the machine is
completely closed.
2. Install the pressure gauge at the port 5.
3. Activate the function outrigger IN on remote control
1.
4. Verify that the pressure is as on Table below.
5. Pressure adjust on relief valve point 6
Control Valve Left Side (Chassis functions)
Model Pressure Port Pressure setting
Bar PSI
X17JP
X500AJ MA 165 2400
X20JP
X600AJ
0,2 A 3,23,2
B B B B
APPOGGIO_POST
Automatic reductions drive speed
Model Pressure
Port
Function Pressure setting
Bar PSI
X17JP
X500AJ
Point 5 Function
Outrigger IN
26 380
0,2 A 3,23,2
B B B B
APPOGGIO_POST
