SECTION 6 - JLG CONTROL SYSTEM
3121623 – JLG Lift – 6-3
This operation has a variable duration. Normally a few
seconds are sufficient, however the following screen may
appear on the display:

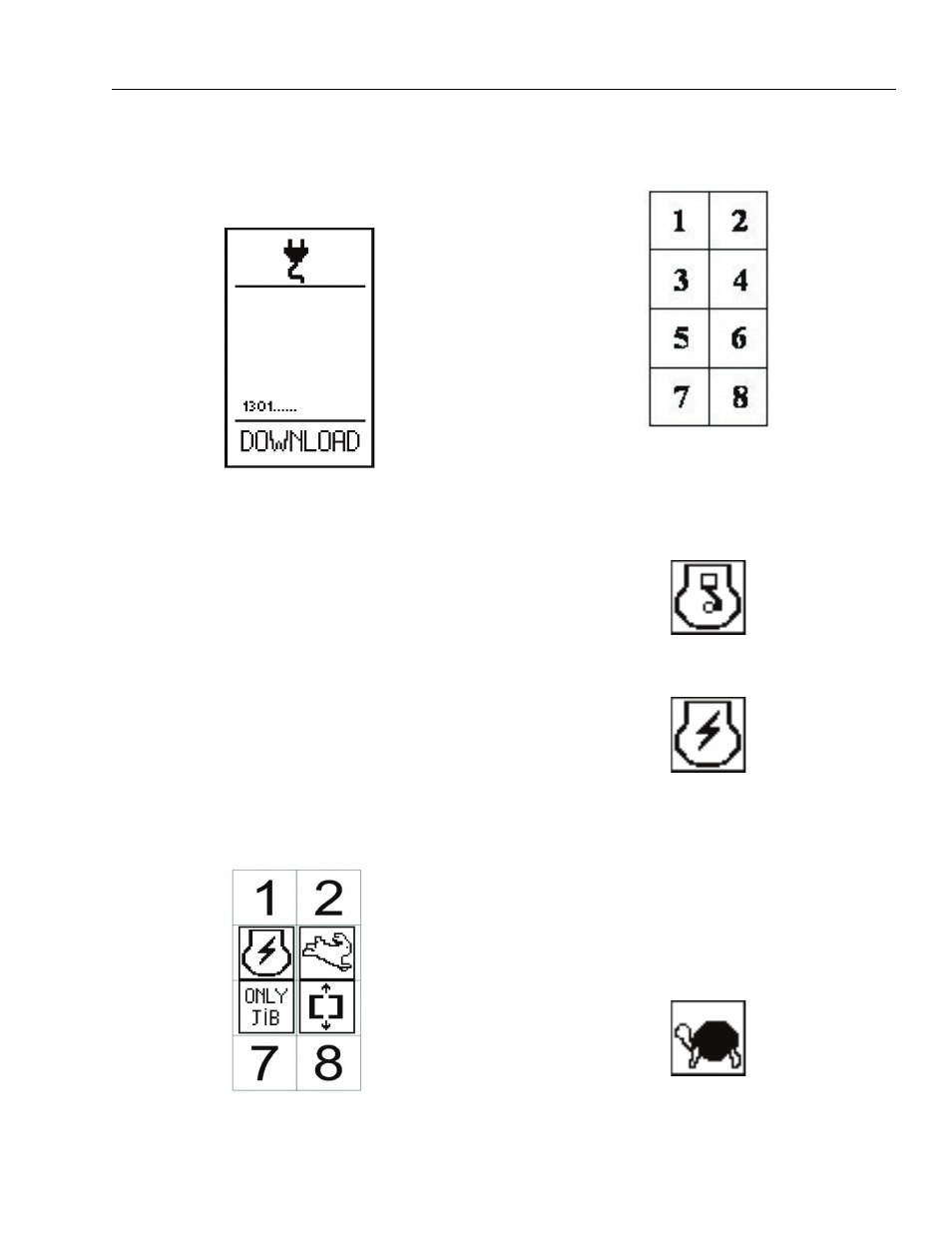

Figure 6-2.
In this case about 5-10 minutes are needed to send all the
information from the main board to the remote control.
The machine cannot work during this period.
Do not stop the machine or operate it during this period.
NOTE: The numbers shown above DOWNLOAD are the data
transferred. The Download will be completed when about
more that 18000 steps are transferred.
Display main screen
When the machine is started, the main screen is dis-
played, giving a general overview of the machine status.
For the sake of simplicity and clarity a layout is provided
with 8 icon display positions.
Example of the main screen:
Figure 6-3.
Icon position diagram:
Figure 6-4.
POSITION 3:
Position 3 displays the engine/motor selection and the
engine status
Figure 6-5. Petrol/diesel engine
Figure 6-6. Electric motor
An X on the icon indicates that the engine/motor is off, no
X indicates that it is on.
POSITION 4:
Position 4 displays the selected speed or the reduced
speed for the Lithium:
Figure 6-7. Slow
