SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
3121166 – JLG Lift – 7-35
Electrical Components - Sheet 2 of 2

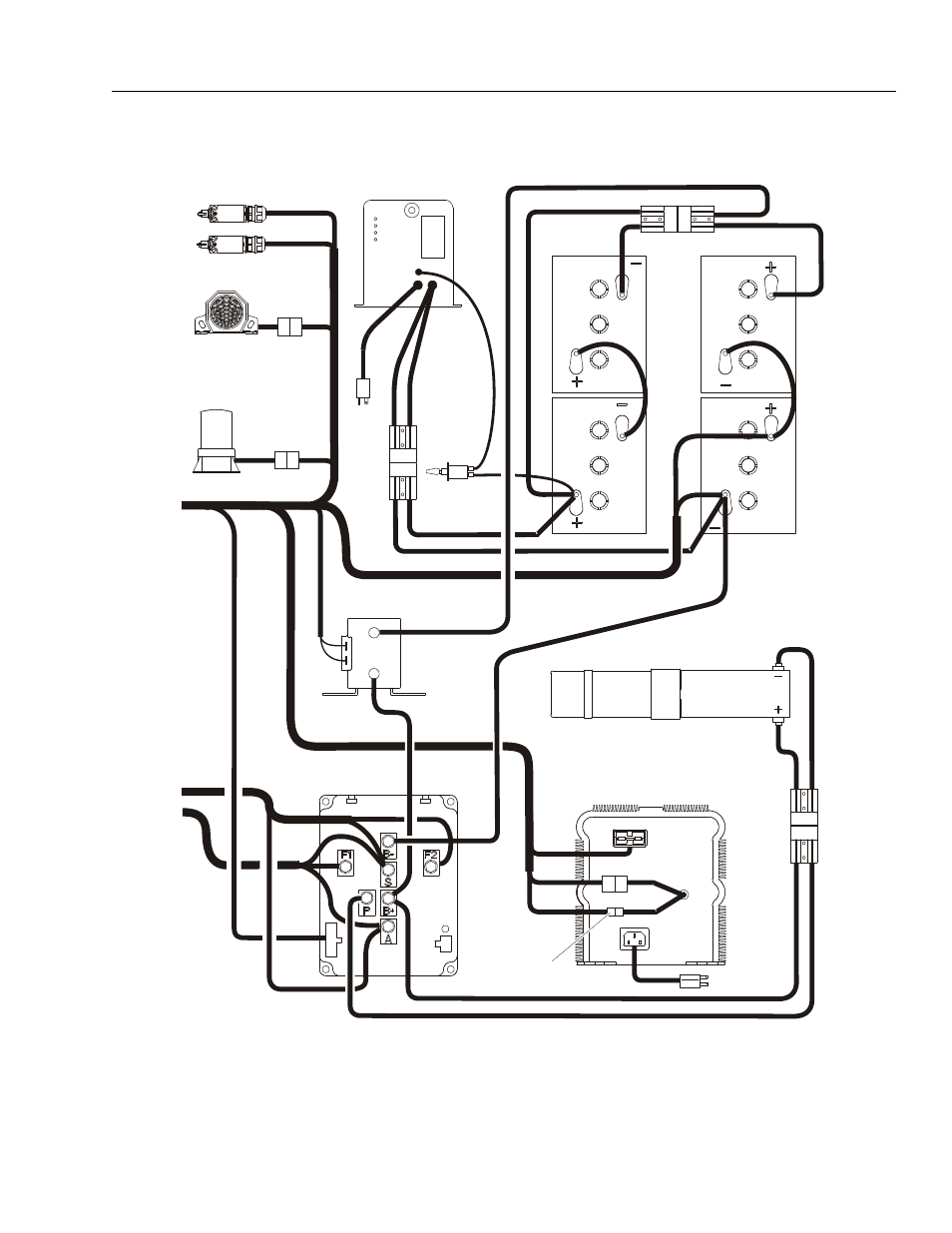

Figure 7-33. Electrical Components - Sheet 2 of 2
NOTE: 1930ES: USA Built Machines S/N 0200135154 to S/N 0200151266, Belgium Built Machines S/N 1200004293 to SN
1200007882; 2030ES/2630ES: USA Built Machines S/N 0200135154 to S/N 0200152528, Belgium Built Machines S/N
1200004293 to S/N 1200008481; 2646ES/3246ES: USA Built Machines S/N 0200135154 to S/N 0200151606, Belgium
Built Machines S/N 1200004293 to S/N 1200008265
* NOTE: THIS CONNECTION USED ONLY WHEN FOOTSWITCH OR BATTERY CHARGER INTERLOCK OPTIONS ARE REQUIRED.
POTHOLE
PROTECTION
SWITCHES
ALARM
INVERTER
INVERTER
POWER
SWITCH
BEACON LIGHT
BATTERIES
CONTACTOR
RELAY
POWER
MODULE BATTERY
CHARGER
PUMP/MOTOR/RESERVOIR
*
