SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
3121166 – JLG Lift – 7-19

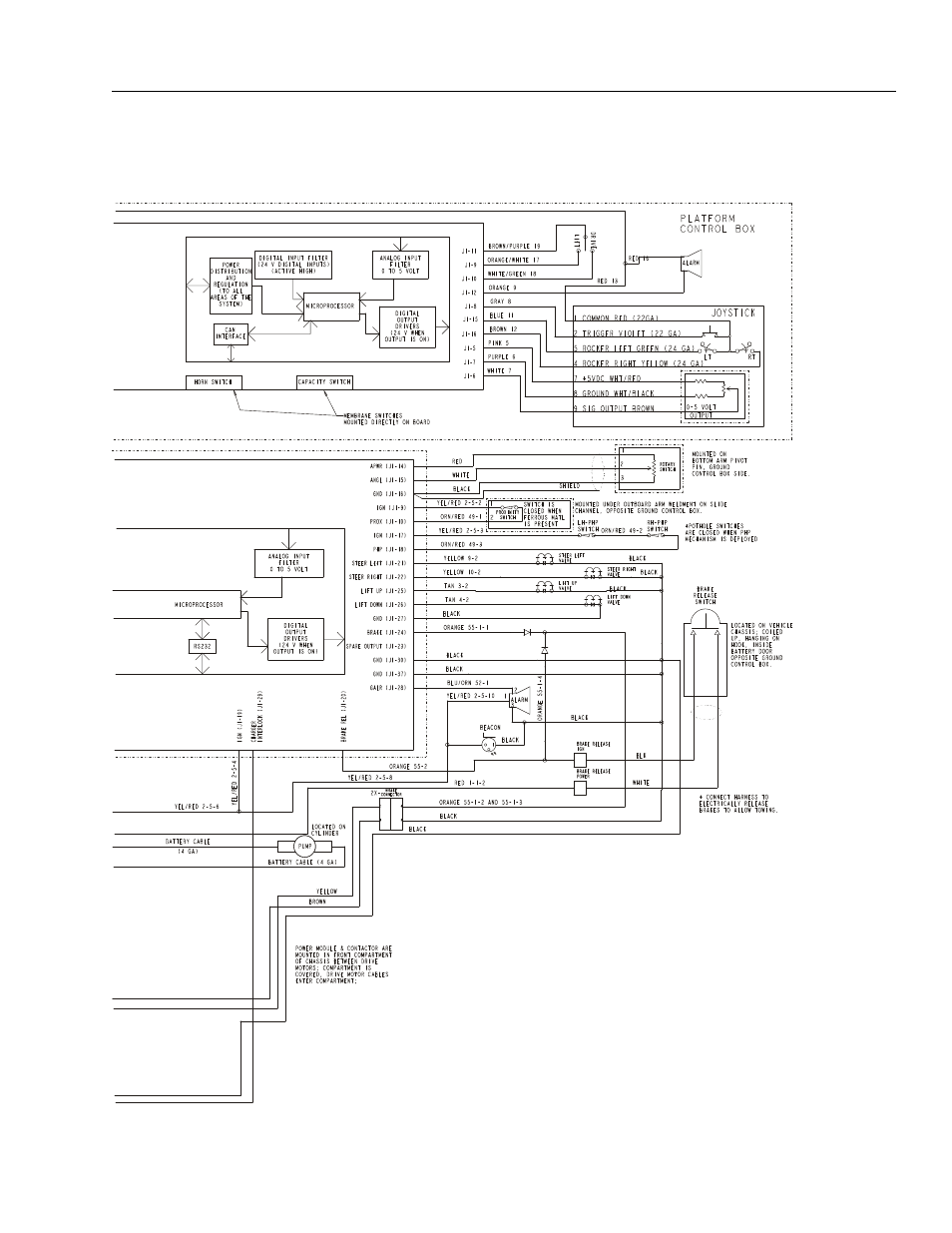

Electrical Schematic - 1870164G - Sheet 2 of 2
Figure 7-19. Electrical Schematic - 1870164 G - Sheet 2 of 2
1870164 G
1930ES USA Built Machines Prior to S/N 0200150266
1930ES Belgium Built Machines Prior to S/N 1200007882
2030ES/2630ES USA Built Machines Prior to S/N 0200152825
2030ES/2630ES Belgium Built Machines Prior to S/N 1200008481
2646ES/3246ES USA Built Machines Prior to S/N 0200151606
2646ES/3246ES Belgium Built Machines Prior to S/N 1200008265
