SECTION 7 - GENERAL ELECTRICAL INFORMATION & SCHEMATICS
7-6 – JLG Lift – 3121166
Assembly
Check to be sure the wedge lock is in the open, or as-shipped, position (See Figure 7-6. Connector Assembly (1 of 4)).
Proceed as follows:

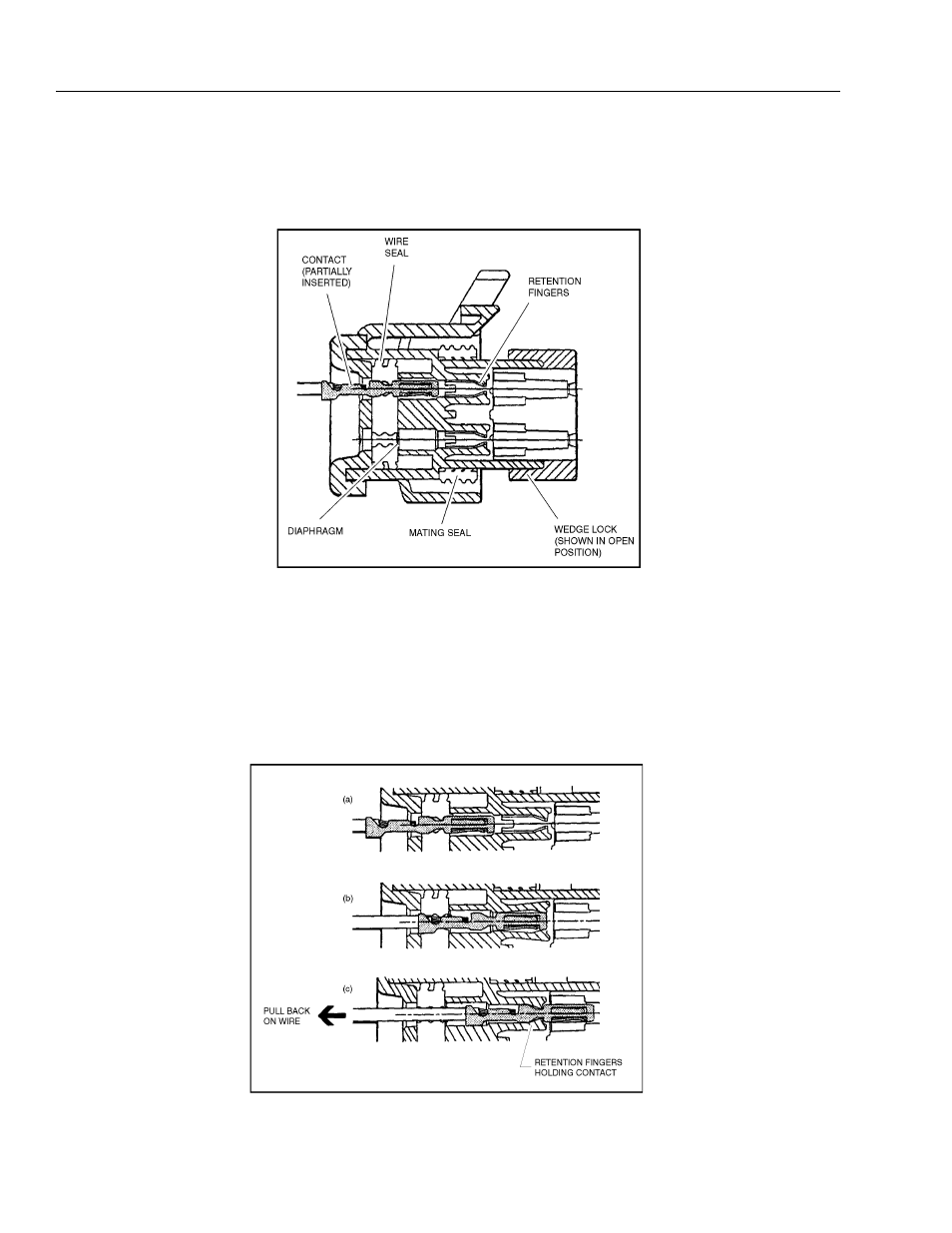

Figure 7-6. Connector Assembly (1 of 4)
1. To insert a contact, push it straight into the appropriate circuit cavity as far as it will go (See Figure 7-7. Connector
Assembly (2 of 4)).
2. Pull back on the contact wire with a force of 1 or 2 lbs. to be sure the retention fingers are holding the contact (See
Figure 7-7. Connector Assembly (2 of 4)).
3. After all required contacts have been inserted, the wedge lock must be closed to its locked position. Release the
locking latches by squeezing them inward (See Figure 7-8. Connector Assembly (3 of 4)).
4. Slide the wedge lock into the housing until it is flush with the housing (See Figure 7-9. Connector Assembly (4 of
4)).
Figure 7-7. Connector Assembly (2 of 4)
