Switch wiring - low side, high side, 6 circuit boards: inputs and outputs, Switch wiring - low side, high side -13 – JLG 3246ES Service Manual User Manual

Page 189: Circuit boards: inputs and outputs -13, Ground board j1 (1600346 power module only) -13

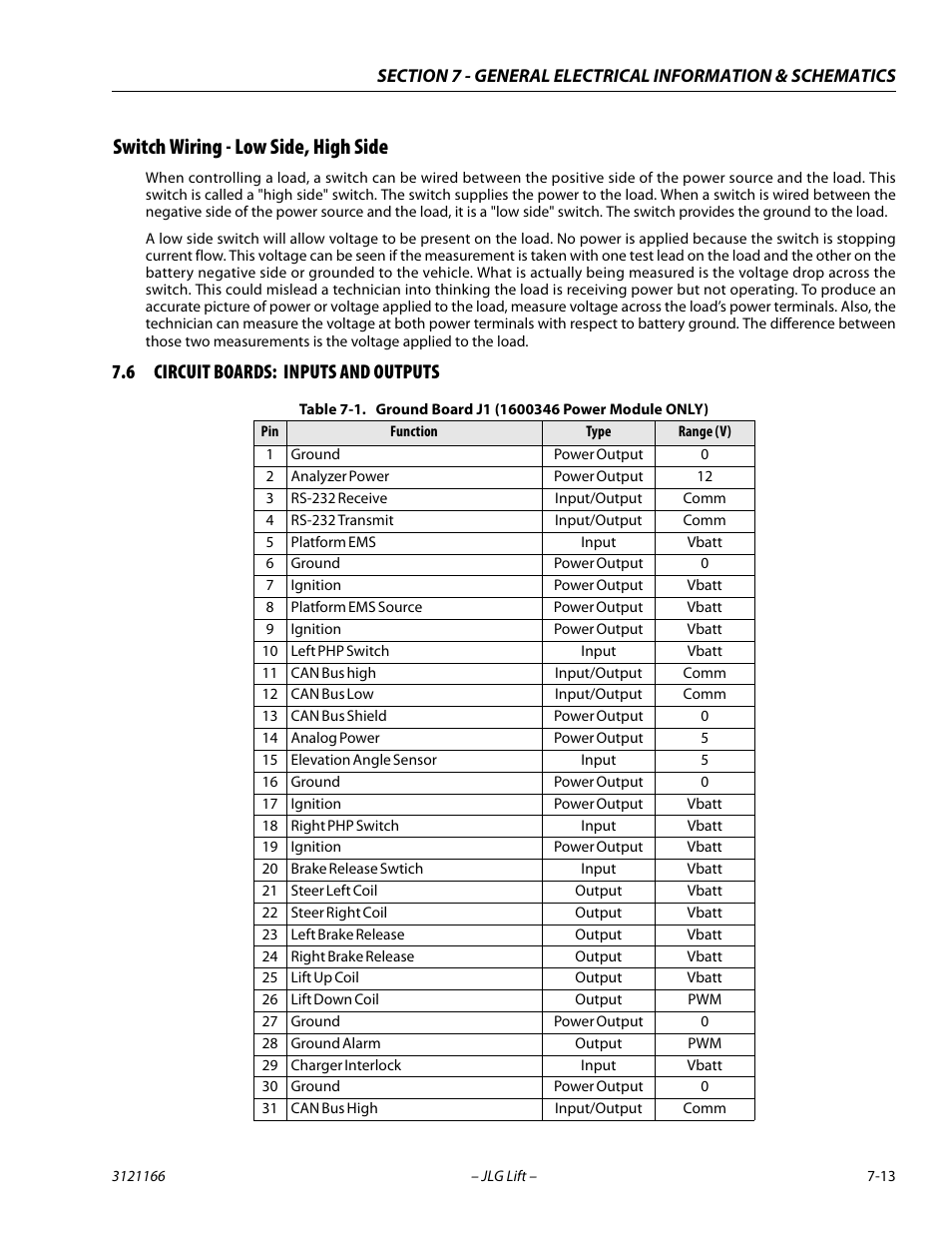

Switch wiring - low side, high side, 6 circuit boards: inputs and outputs, Switch wiring - low side, high side -13 | Circuit boards: inputs and outputs -13, Ground board j1 (1600346 power module only) -13 | JLG 3246ES Service Manual User Manual | Page 189 / 222 Switch wiring - low side, high side, 6 circuit boards: inputs and outputs, Switch wiring - low side, high side -13 | Circuit boards: inputs and outputs -13, Ground board j1 (1600346 power module only) -13 | JLG 3246ES Service Manual User Manual | Page 189 / 222
