SECTION 2 - OPERATION
2-25
Ground Speed Display (Speedometer)
NOTE: The electronic instrument panel is set at the
factory to display either English (MPH & FT.) or
Metric (km/h & METERS.) If required, the display
may be reprogrammed to show the desired values by

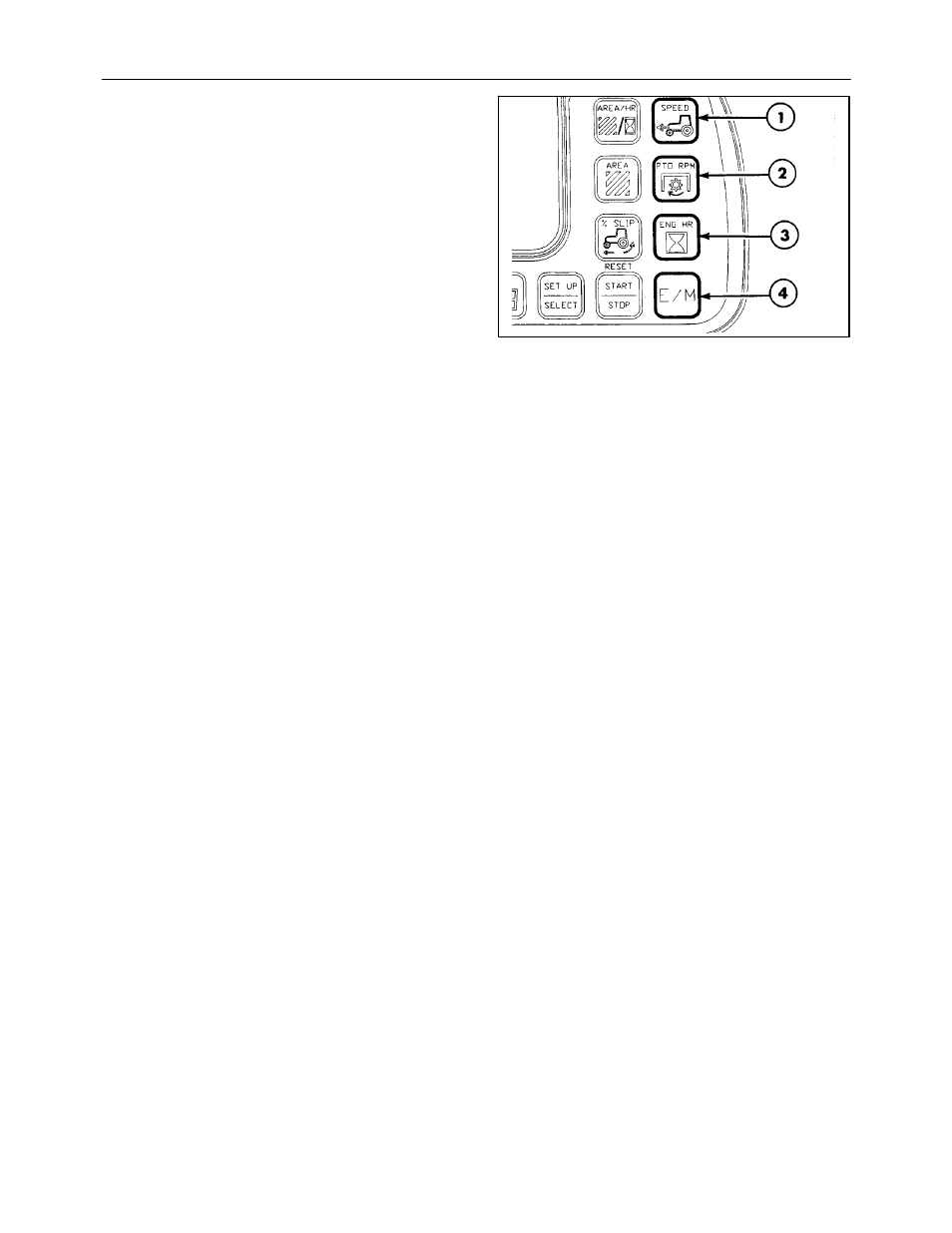

holding the E/M switch, 4, for three seconds. The
display will change and convert the digits to the new
values.
Touch switch, 1, to show the ground speed in the
main display. The MPH or km/h legend, 5, Figure 34,
as appropriate, will also be displayed.
NOTE: The speedometer senses rotation of the rear
axle and may be subject to errors caused by the
effects of wheel slip, tire pressures/condition, etc. If
the optional radar sensor is installed, the tractor
senses true ground speed for greater measurement
accuracy.
NOTE: The lower central display will automatically
show ground speed if the tractor is traveling at more
than 20 km/h (12.4 MPH ). If required to display any
other function, the appropriate selector switch must
be continuously depressed.
Power Take-Off Display
540/1000 RPM PTO-Equipped Units
(Model 2145)
Touch switch, 2, and the PTO 540 legend, 4, Figure
34, will display, together with the PTO speed in the
LCD. If the 1000 rev/min PTO shaft is in use, touch
the selector switch again and the PTO 1000 legend
will display together with a digital display of PTO
speed.
The PTO has a non-critical overspeed alert. If 540
PTO speed is greater than 630 RPM or 1000 PTO
speed is greater than 1152 RPM, the “PTO ON”
status lamp will flash and a second audible alarm will
occur. The green system status lamp will also flash
when the PTO status “overspeed” alert occurs.
1000 RPM PTO Equipped Units
(Models 2160, 2180, 2210)
Touch switch, 2, and the PTO 1000 legend will
display, together with the PTO speed.
35
