Upgrading the VS-1616D Firmware
44
To install an I/O card as shown in Figure 15 :
1. Power off the VS-1616D and all devices connected to it.
2. Using a Phillips screwdriver, loosen the screws at the top and bottom of the
blanking plate (see Figure 16 ).

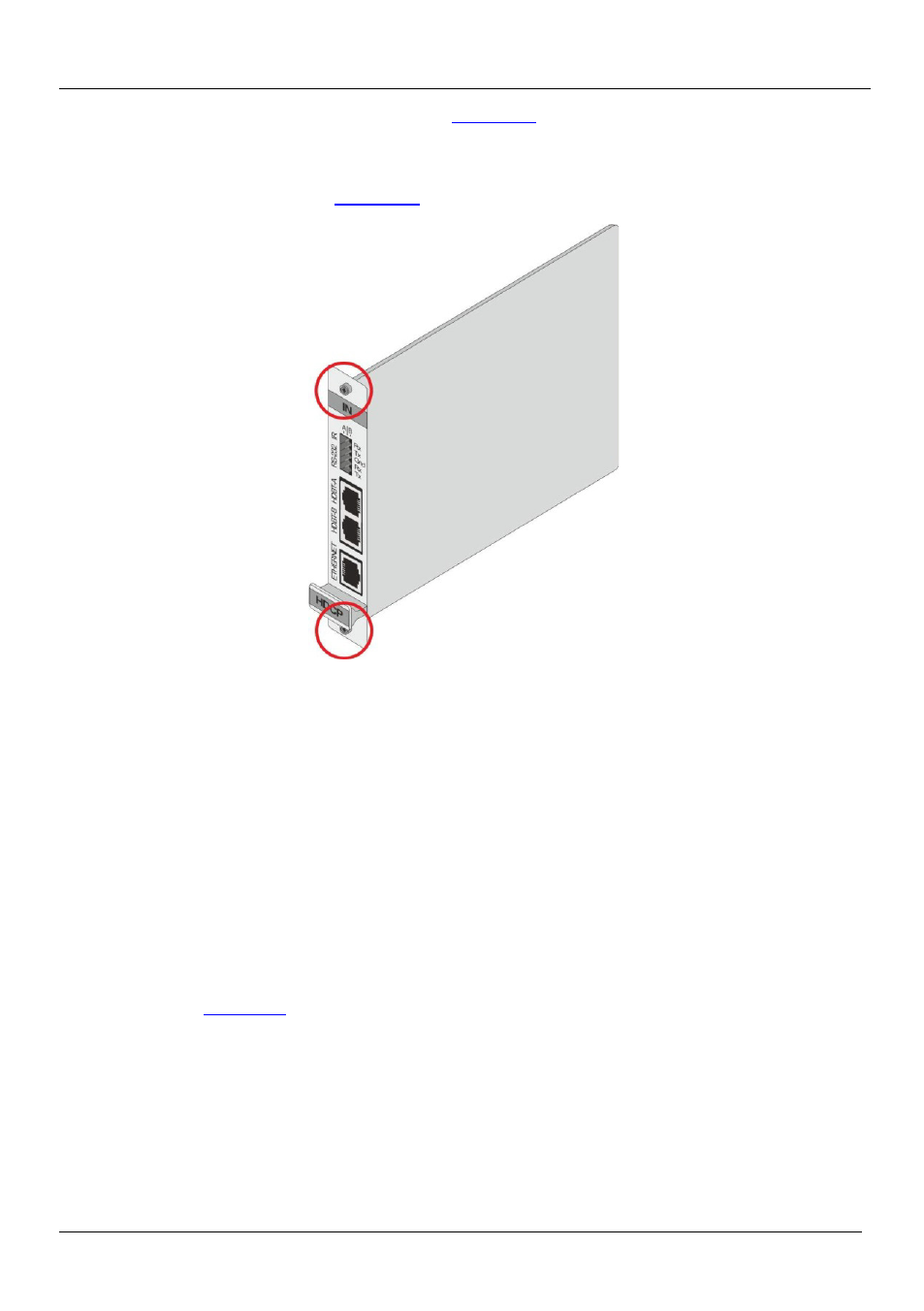

Figure 16: Card Handles
3. Remove the blanking plate from the slot and store it for possible future use.
4. Remove the new card from its shipping box and anti-ESD bag.
5. Holding the card by the lower handle, align the card with the plastic guide
rails.
6. Slide the card into the chassis until the front of the card makes contact with
the connector inside the chassis.
7. Press the card firmly into the slot until the connector plate is flush with the
rear panel of the chassis and the connector is fully seated.
8. Using a Phillips screwdriver, tighten the retaining screws at the top and
bottom of the card to secure it to the chassis.
9. Power on the VS-1616D and follow the procedure to configure the new card
(see Section 9
10. Power on the peripheral devices.
).
12 Upgrading the VS-1616D Firmware
Upgrading the firmware on the VS-1616D can be done only by authorized service
personnel.
