Installing and Using the Test Module to Troubleshoot Video Problems
42

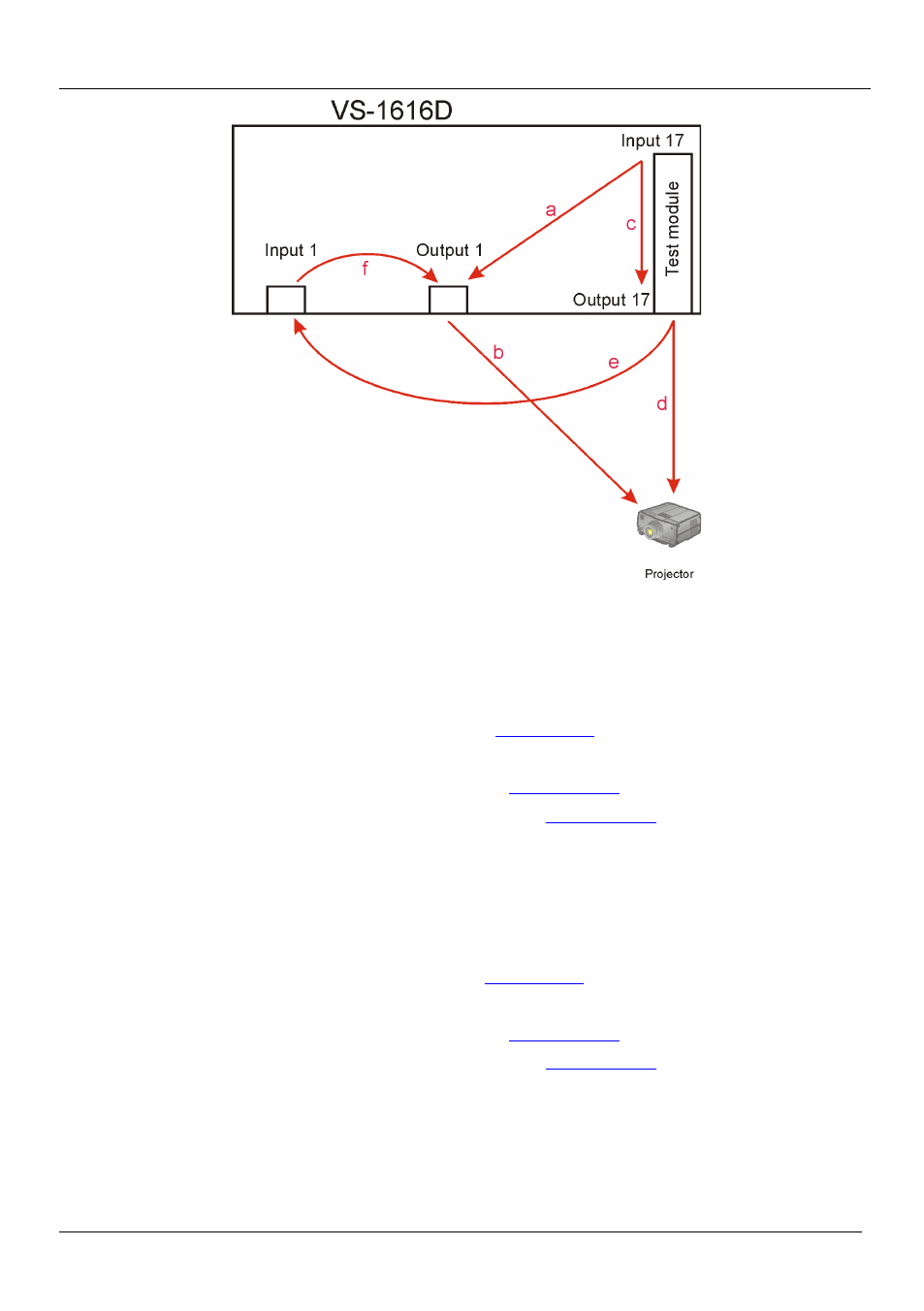

Figure 14: Signal Paths for Isolating problems
10.4.1 Testing the Projector Output
Signal path: c to d; d to projector
To test the projector output:
1. Configure Input 17 to Output 17 (see Section 7.4
2. Connect Output 17 to the projector.
).
3. Set the generated video resolution (see Section 10.2
4. Set the pattern for the generated video (see
).
Section 10.3
5. Verify that the projector output is as expected.
).
10.4.2 Testing the Output Signal Path to the Projector
Signal path: a to b; b to projector
To test the output signal path to the projector:
1. Configure Input 17 to Output 1 (see Section 7.4
2. Connect Output 1 to the projector.
).
3. Set the generated video resolution (see Section 10.2
4. Set the pattern for the generated video (see
).
Section 10.3
5. Verify that the projector output is as expected.
).
