Installing and Using the Test Module to Troubleshoot Video Problems
41
41
Table 7: Available PC Resolutions for Generated Video (Jumper off)
DIP-switch Position Resolution
1 2
OFF OFF 1024 x 768 @60Hz
ON OFF 1280 x 1024 @60Hz
OFF ON 1600 x 1200 @60Hz
ON ON 1920 x 1200 @60Hz
Table 8: Available HD Resolutions for Generated Video (Jumper on, default)
DIP-switch Position Resolution
1 2
OFF OFF 480p (default)
ON OFF 720p
OFF ON 1080i
ON ON 1080p

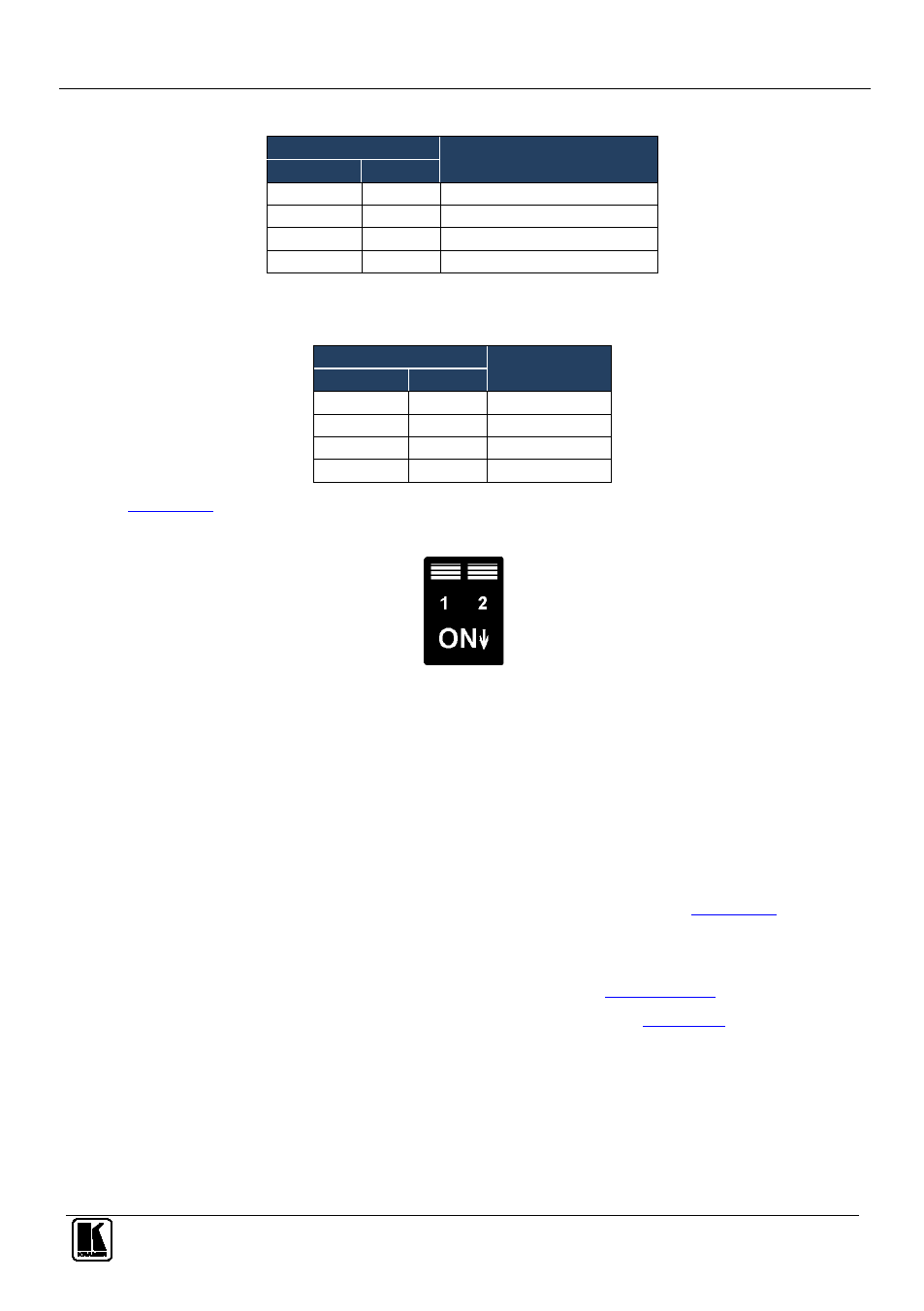

Figure 13 shows the Resolution DIP-switch with both switches off (up, default,
480p).
Figure 13: Resolution DIP-switch
10.3 Setting the Pattern of the Generated Video
The Pattern button is used to set the pattern of generated video. There are 32
available patterns. Press the button repeatedly to cycle through the patterns.
10.4 Using the Test Module to Troubleshoot Video Problems
The test module may be used in various ways to isolate video problems.
The following examples are based on the signal paths shown in
Figure 14 and a
VS-1616D device installed as follows:
• 16 inputs and 16 outputs
• The test module is installed and configured (see Section 10.1
• 17 configured inputs and 17 configured outputs (see
)
Section 9 )
