Figure 12: menu tree, Figure 12 – Kramer Electronics VS-1616D User Manual
Page 29
Using the Configuration Menus
25
25

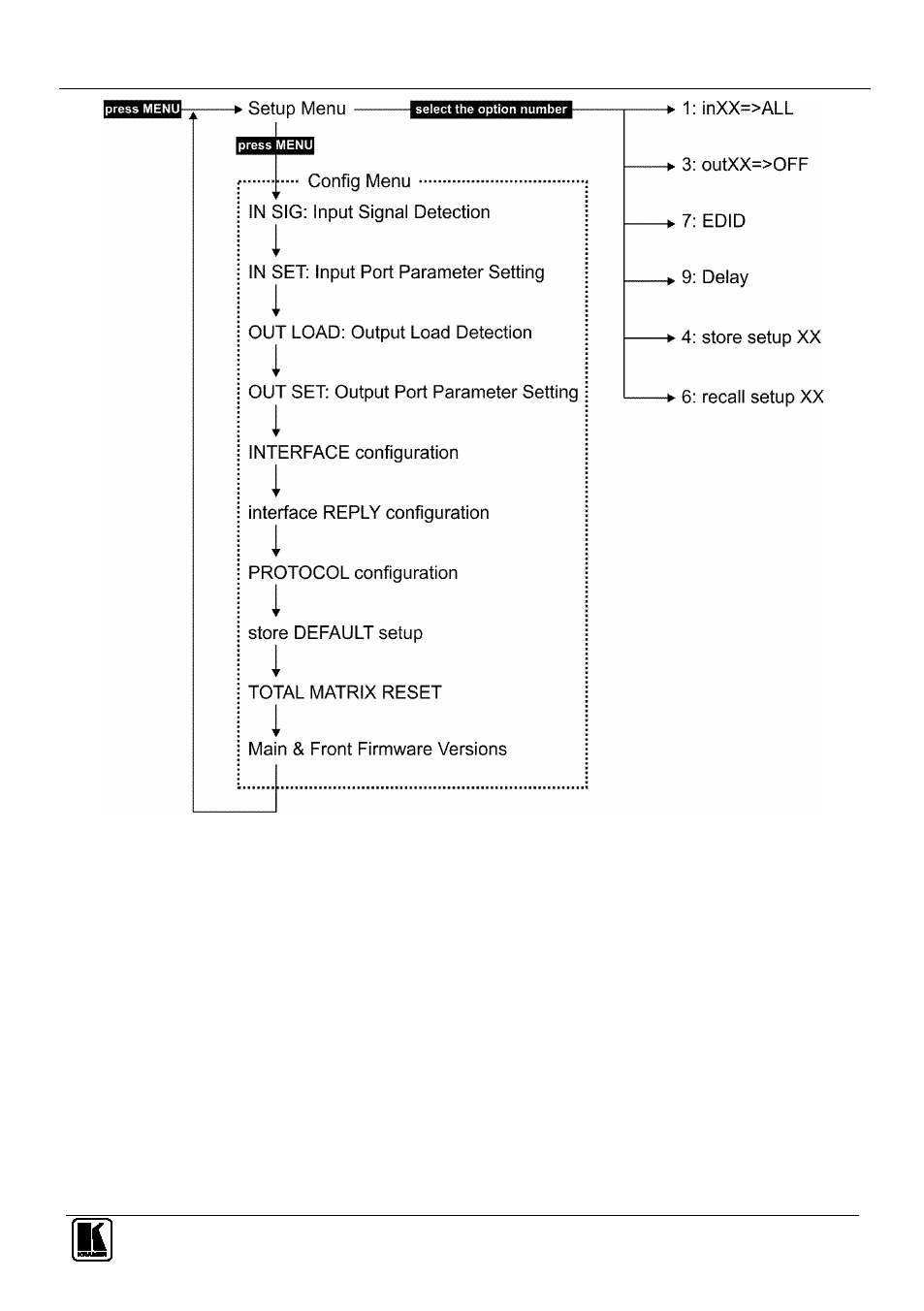

Figure 12: Menu Tree
The following rules apply to the menu operation:
•
If no selection is made within approximately 15 seconds, the operation
times-out and the display reverts to the output/input display
•
At any point in the Menu, press ESC to move up one level or press
BREAKAWAY to exit the Menu altogether
•
At any point in the Menu, only buttons that are active light or flash
•
All of the procedures in this section assume that you are starting the
procedure from the standard, operational output/input display
