1 testing the projector output, 2 testing the output signal path to the projector, Testing the projector output – Kramer Electronics VS-1616D User Manual

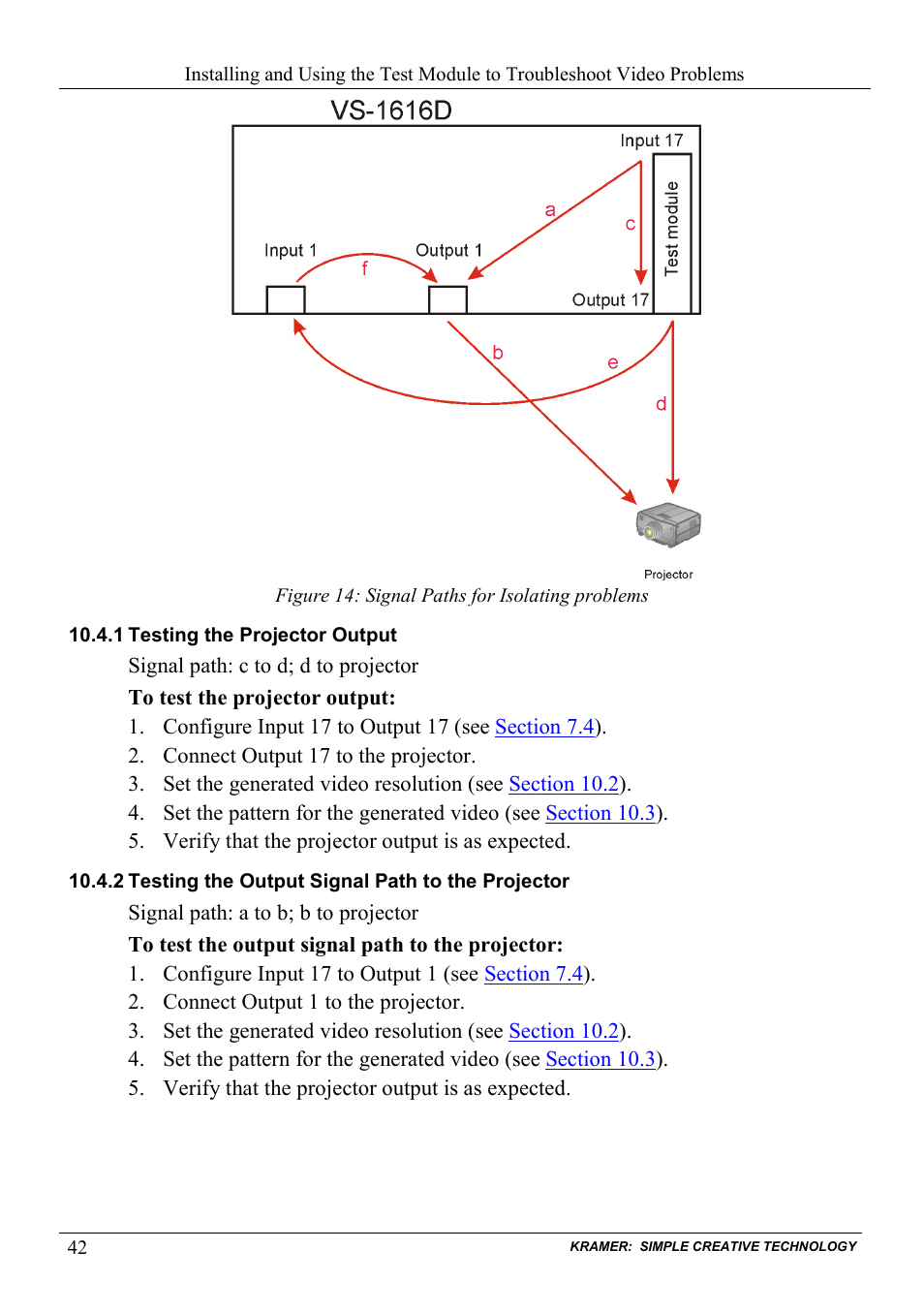

Page 46: Testing the output signal path to the projector, Figure 14: signal paths for isolating problems, Figure 14
