3 audio mode selection on hdmi plus audio cards, 4 connecting to the vs-1616d via rs-232, Audio mode selection on hdmi plus audio cards – Kramer Electronics VS-1616D User Manual

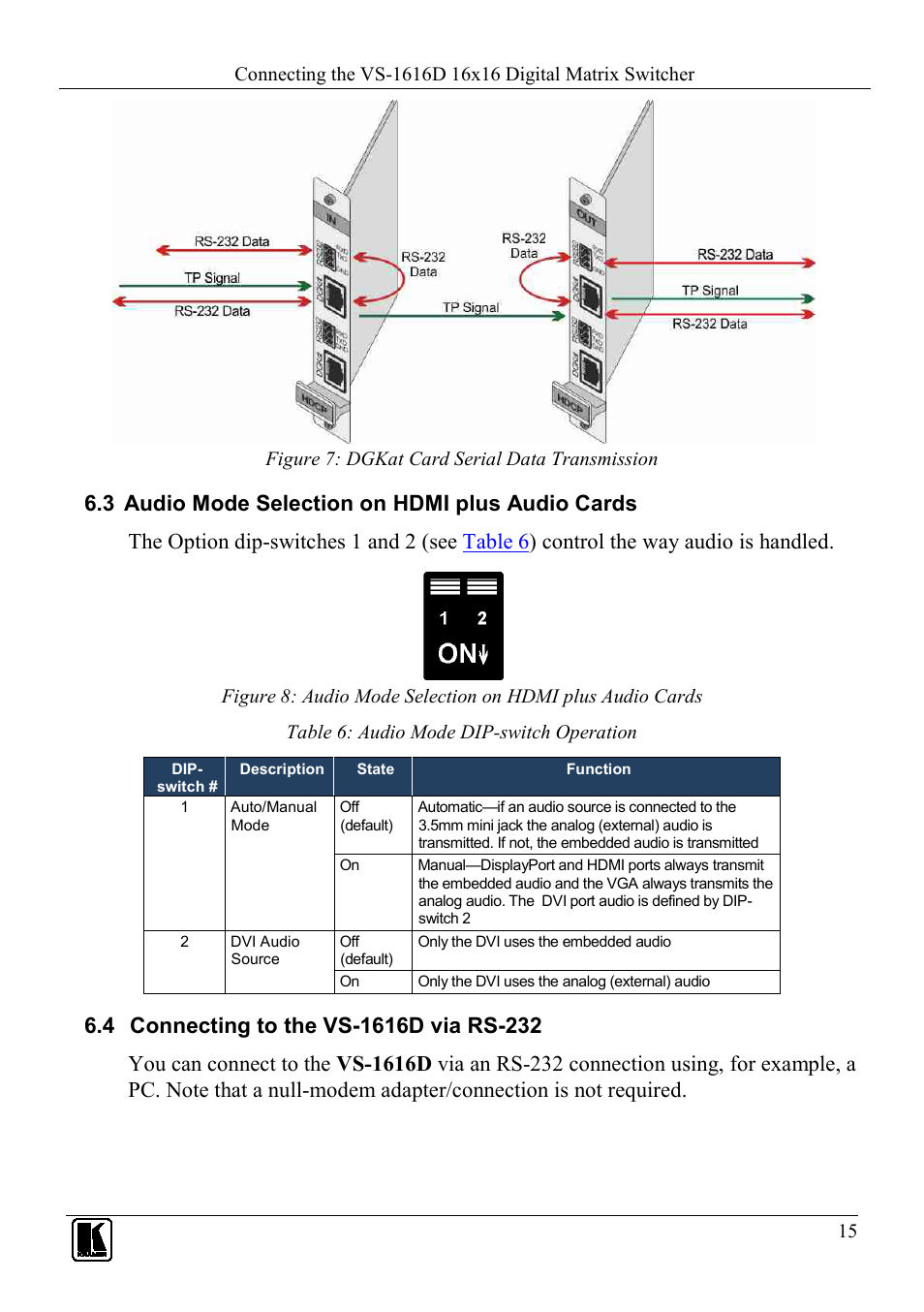

Page 19: Connecting to the vs-1616d via rs-232, Figure 7: dgkat card serial data transmission, Table 6: audio mode dip-switch operation, N 6.4, Figure 7
3 audio mode selection on hdmi plus audio cards, 4 connecting to the vs-1616d via rs-232, Audio mode selection on hdmi plus audio cards | Connecting to the vs-1616d via rs-232, Figure 7: dgkat card serial data transmission, Table 6: audio mode dip-switch operation, N 6.4, Figure 7 | Kramer Electronics VS-1616D User Manual | Page 19 / 70 See also other documents in the category Kramer Electronics Routers:
