AT-S29 Management Software User’s Guide
77
Configurable parameters have a dialog box or drop-down list. Once a
configuration change has been made on a page, be sure to click on the
“Apply” button at the bottom of the page to confirm the new setting.
Alternatively, you can click on “Revert” to clear any changes prior to
pressing “Apply.”
Panel Display

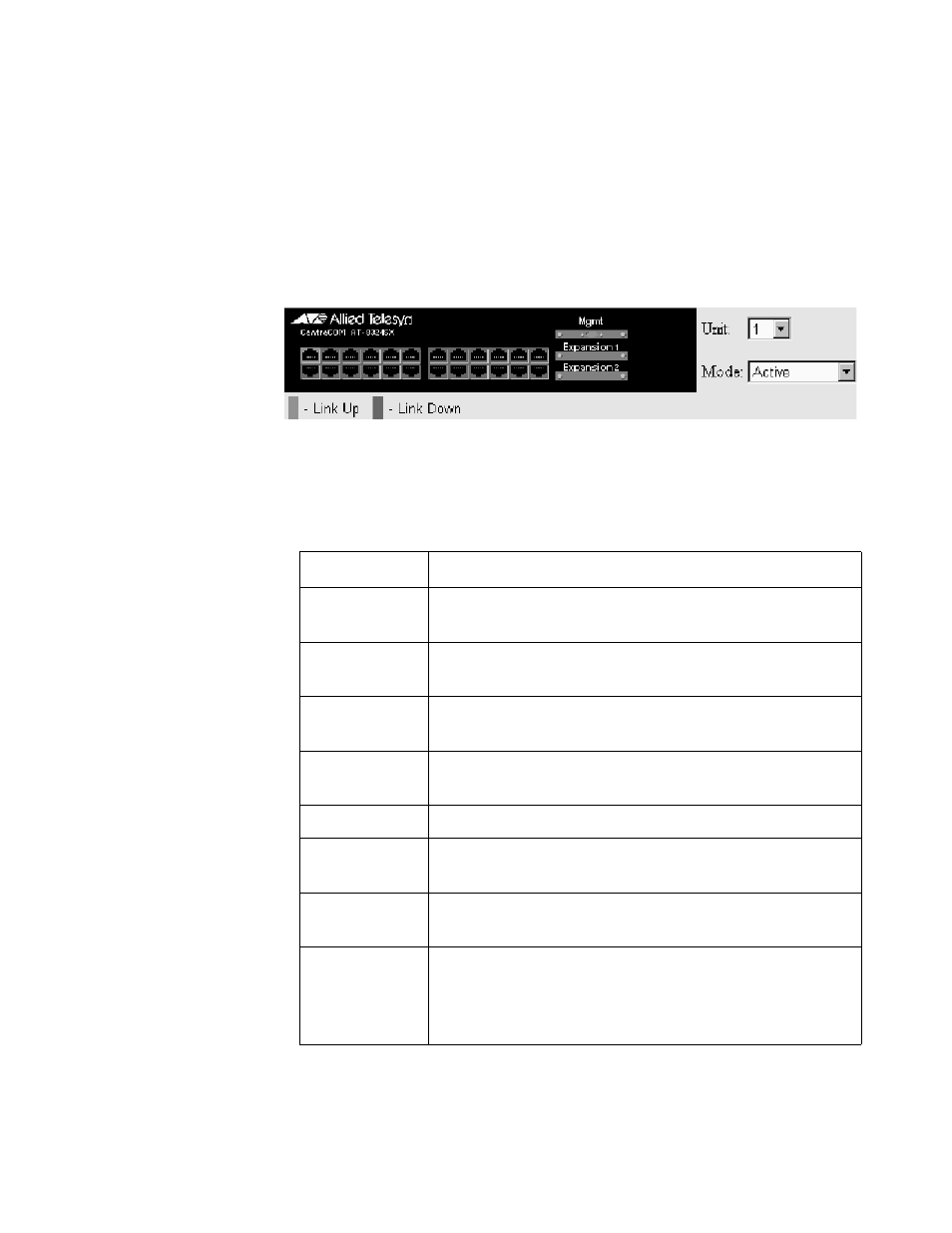

The Web Agent displays an image of the switch’s ports and expansion
modules, showing port activity, speed, or duplex mode, depending on
the specified mode. Note that clicking on the image of a port or module
will display statistics for the selected item.
Main Menu
Using the on-board Web agent, you can define system parameters,
manage and control the switch, the connected stack and all its ports, or
monitor network conditions. The following table briefly describes the
selections available from this program.
Menu Description
System Provides basic system description, including contact
information.
Switch Shows hardware/firmware version numbers, power
status, and expansion modules in use.
IP Includes boot state, IP address, and Telnet session
count.
SNMP Configures communities and trap managers; and
activates traps.
Security Sets passwords for system access.
Upgrade Downloads new version of firmware to update your
system.
Address Table Provides full listing of unicast addresses, sorted by
address or VLAN.
STA Enables Spanning Tree Algorithm; also sets
parameters for switch priority, hello time, maximum
message age, and forward delay; as well as port
priority and path cost.
