7330
Specifications
Operating Voltage 13.5 to 30 VDC
Output
Operating Output
Diagnostic Output 4 to 20mA
3.9mA and 20.1mA, float outside of span
3.8mA, no signal received
(Note: Diagnostic Tolerance +/- 0.02mA)
Operating Temperature -40° to 70° C, (-40° to 158° F)
Pressure Rating 316SS Probe: 1000 psi max.
Float Dependent. Consult Factory.
Resolution 0.025% of span or 0.014”
(Whichever is Greater)
Repeatability 0.014” + 0.05% of span typical,
0.014” + 0.4% of span maximum
Accuracy 0.1% of span or 0.050”
(Whichever is Greater)
Null Zone 8”
Dead Band 2”
Enclosure Material
Rating
Probe: 316 SS
IP68
Probe Length
Stainless Steel D, S 18” to 288”
* Consult Factory
APPROVED
C US
FM
Approvals
FM (US & Canada)
XP Class I, Div I, Group A, B, C, D, T4
DIP Class II, III, Group E, F, G, T4
Specifications are subject to change without notice. Patented.
Accessories
Item Part Number
Float Kit, 316 SS, 2.05” Diameter w/ E Clip and Spacer 0.54s.g. SD0515000
Float Kit, Nitrophyl, 2.02” Diameter w/ E Clip and Spacer 0.40s.g. SD0536500
Cable Assembly, 4 pin, 6 feet long (M style only) 01533141
Adjustable Tube Coupling 5/8” x 3/4” NPT 04283800
Meter, 4 1/2 digit display, panel mount, 2 output relays 04541069
Bushing, 3/4” x 2” NPT 316SS 04587241
Wiring Diagram
733 0 X D E XXX F1 XXX H XX
Overall Length *
Mounting Style
H
= Condulet
Connector Style
D
= 3/4” NPT Dual
S = 3/4” NPT Single
Fittings
E
= English
M = Metric**
7330
Pro-Stik II
Output
0
= 4 to 20mA
1 = 20 to 4mA
Span*
# of Floats
F1
= 1 Float
Special Mounting
EX
= FM/CSA
Explosion Proof
Style/Material
X
= 316 Stainless Steel
* Specified in whole 1” increments.
See Specifications for ranges.

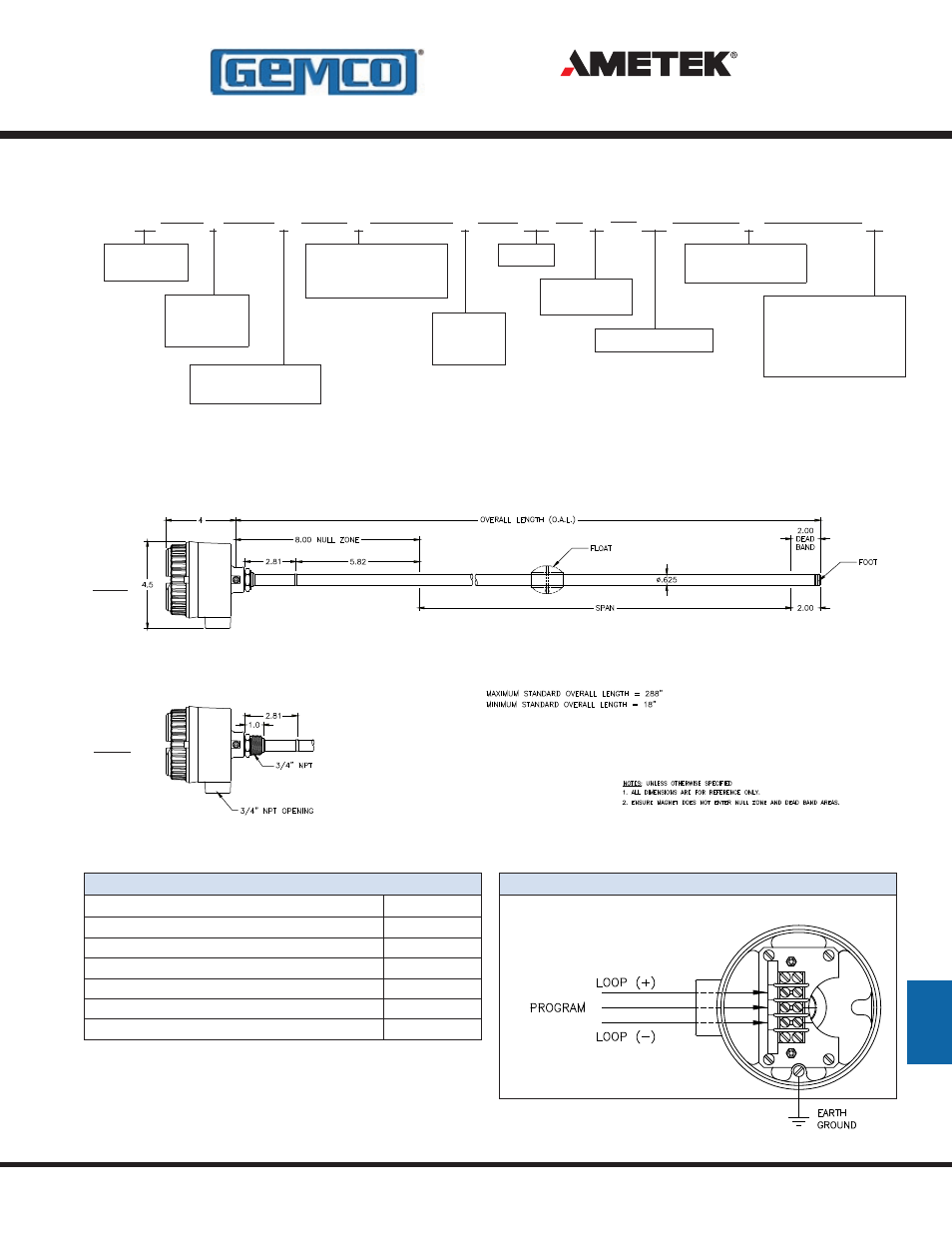

Dimension Drawing
Part Numbering
XS STYLE
XD STYLE
S PA
N
ZE
R O
LO
O P
+
LO
O P -
P R G M
REMOTE SETTING OF SPAN
7330EX/ED Pro-Stik II
