955
Accessories
Item Part Number
Slide Magnet SD0521800
Floating Magnet SD0522100
Wide Floating Magnet SD0551500
Mounting Foot SD0522000
6 Ft. Cable (Option H) SD0527700L6 - Obsolete, consult factory
12 Ft. Cable (Option H) SD0527700L12 - Obsolete, consult factory
25 Ft. Cable (Option H) SD0527700L25 - Obsolete, consult factory
6 Ft. 12 Pin (Option E Connector ) 949023L6
12 Ft. 12 Pin (Option E Connector) 949023L12
Control Arm 955ARMXX ( X = Length in Inches )
Plastic Rod End 04-570252
For non-standard lengths, consult factory.

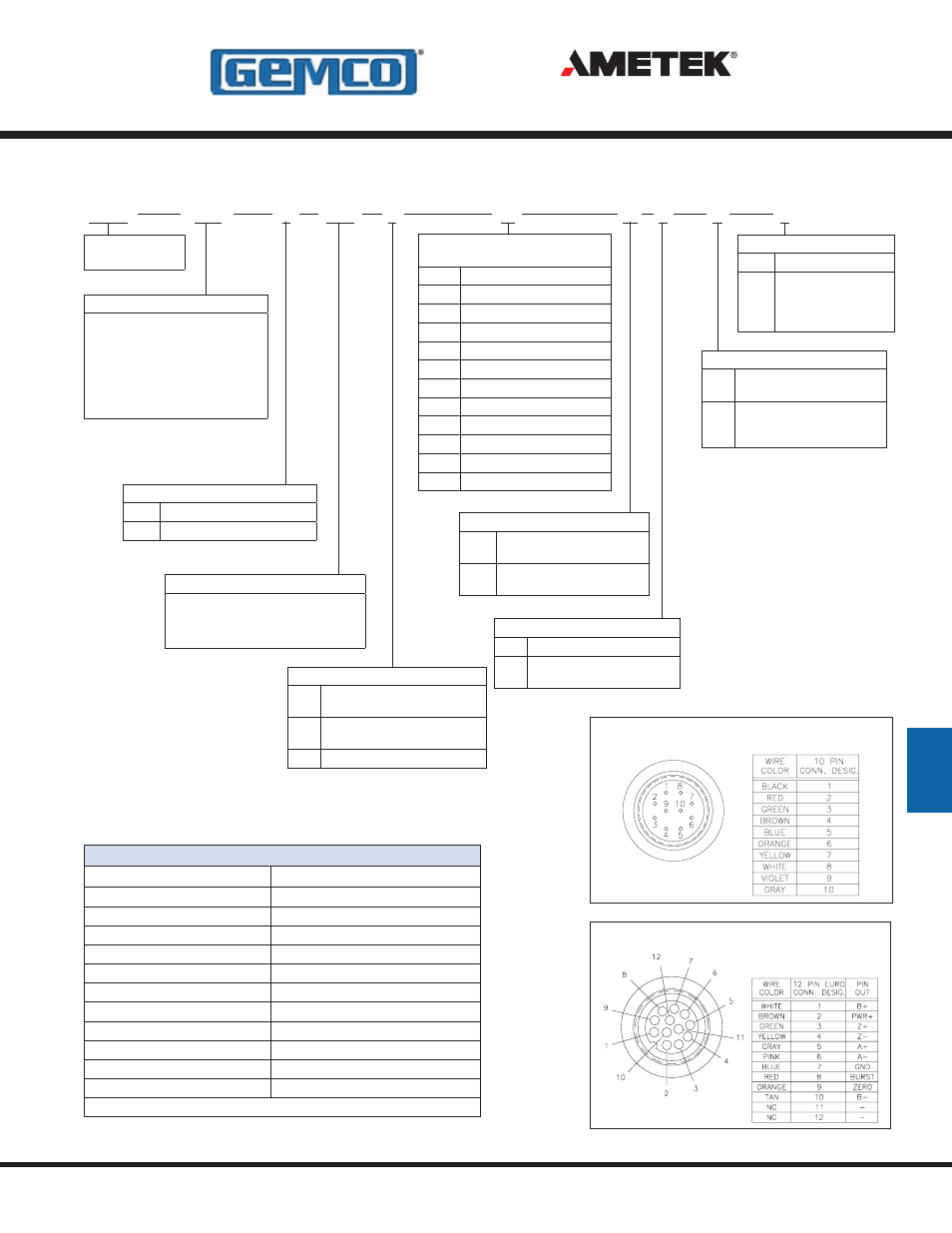

12 PIN CONNECTOR VIEW
Wiring Diagram ( Connector Option E )
Wiring Diagram ( Connector Option H )
10 PIN HIROSE CONNECTOR VIEW
Part Numbering
955DQ 0120 E
Connector Option
H HRS environmental connector
E Euro 12 Pin, 12mm connector
955DQ
Quadrature
1000
Output Resolution
Cycles per inch, maximum internal
resolution is 0.001 inches 1000 standard
(available range is 0001 through 9999)
X1 F7 E
Input
E
Sinking (typically used with
sourcing output type)
C
Sourcing (typically used with
sinking output type)
T TTL Level
Output Mode
X1
X1 quadrature, consult factory
for other output modes
D1
Dual magnet, difference
between magnets
Quadrature Cycle Output
Frequency Range
A1 1 kHz
A2 2 kHz
A3 5 kHz
F1 10 kHz
F2 25 kHz
F3 50 kHz
F4 75 kHz
F5 100 kHz
F6 150 kHz
F7 250 kHz
F8 500 kHz
F9 1 MHz
N X D
Output Drivers
D
Differential RS422 line driver,
TTL compatible
L
Differential line driver
10 to 30 VDC, V out = V in
(LDT Power) -1 Volt
Options
X None
E
Wet environment,
electronics sealed to
IP68 rating, connector
option E only
Zero Offset Storage
V Volatile (non retentive)
N
Nonvolatile (retentive, 100,000
storage cycles maximum)
Stroke Length
Insert stroke to 0.1” as a four-place
number, enter 12.0” stroke as 0120.
OR
Insert stroke in millimeters to 1mm.
Enter as a four-place number
followed by ‘M’. Example: 305mm
stroke entered as 0305M.
955DQ BRIK Gen III
