AUTOMATION & PROCESS
TECHNOLOGIES

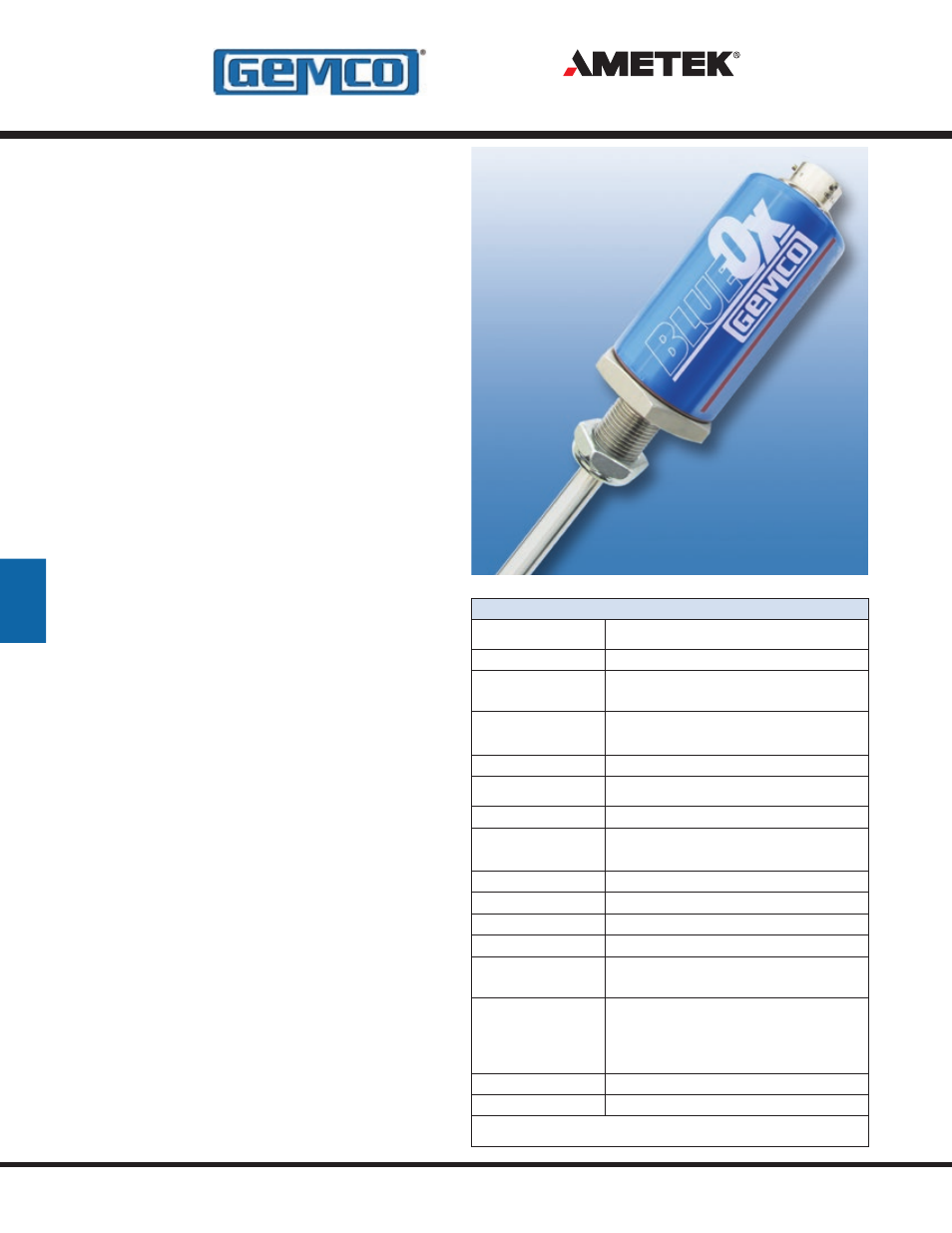

952
Magnetostrictive LDT
for High Shock and Vibration Areas
Gemco brand position sensing products have been
known for survival in harsh industrial environments.
We have taken over twenty years experience in
magnetostrictive linear sensors and married it with
our understanding of rugged industrial sensors to
develop the BlueOx LDT as the industry’s first truly
rugged magnetostrictive linear transducer.
The BlueOx LDT is lab tested and field proven to
stand up to high shock and vibration. With test
results of 2,000 Gs of shock and 30 Gs of random
vibration without false signals or mechanical
damage, the BlueOx LDT is ready to perform on the
most demanding applications.
In addition to its ability to withstand shock and
vibration, the BlueOx LDT is rugged in other ways.
Sensing tube construction is welded stainless
steel, suitable for insertion in 5000 PSI hydraulic
cylinders. The electronics are enclosed behind an
aluminum housing with O-ring seals for IP67 indoor
applications (Type Nema 6 rating and stainless steel
covers and connectors are available as a special
option).
The 952 BlueOx is available with Analog, Control
Pulse, Variable Pulse or RS422 Start/Stop outputs.
The 952 is compatible with PLC interface cards
and our 1746 LDT Interface Card. The 16 bit
resolution analog output is programmable over the
entire active stroke length. The units can easily be
changed in the field from a 0 - 10 VDC to a 10 - 0
VDC or a 4 - 20mA to a 20 - 4mA. As an added
feature, the optional differential analog output allows
the distance between two magnets to be measured.
The BlueOx, with its high resolution and rugged
construction, is at home in heavy duty areas such as
lumber mills, steel mills, stamping plants, assembly
automation, material handling, robotics and any
other industry where highly accurate and reliable
continuous linear position sensing is needed.
Specifications
Input Voltage
Analog: 13.5 to 30 VDC
Digital: 13.5 to 26.4 VDC, or +/- 15 VDC
Current Draw
< 200mA at 15 VDC
Output
Analog: 0 to 10 VDC or 10 to 0 VDC, 4 to 20mA or 20 to 4mA
Digital: Start/Stop, Control Pulse or Pulse-Width Modulated/
Variable Pulse (PWM/VP)
Resolution
Internal
Analog Output
0.001”
16 Bit (1 part in 65,535)
Linearity
+/-0.05% of Full Scale
Repeatability
+/-0.006% of Full Scale
(+/- .002 inch min.)
Hysteresis
+/-.02% of Full Scale
Operating Temperature
Head Electronics
Guide Tube
-40° to 158° F (-40° to 70° C)
-40° to 221° F (-40° to 105° C)
Operating Pressure
5000 psi Operational, 10,000 psi Spike
Span Length
2” to 168”
Null Zone
2”
Dead Band
2.5”
Connectors
12mm Micro 5 Pin, CE Approved (Analog Only),
10 Pin 1/4 Turn MS Connector, Potted Pigtail Assembly,
Optional Temposonics II & III Connectors
Update Time
Analog
Digital
1ms (Stroke Lengths 1” to 50”)
2ms (Stroke Lengths 51” to 100”)
3ms (Stroke Lengths 101” to 150”)
4ms (Stroke Lengths 151” to 168”)
Controller Dependent
Enclosure
IP67
Approvals
CE ( Analog 12mm Micro 5 Pin Connector Only )
Specifications are subject to change without notice.
Specifications are based on a typical 36” LDT .
952 BlueOx
