950IS
NOTE 1:
A complete system consists of an LDT,
a Gemco Magnet, a Tranceiver and IS Barrier.
IS Barrier and Panel Mount Bracket are ordered
separately. IS Barrier P/N 04517039. Panel Mount
Bracket for Barrier P/N 04517214.
NOTE 2:
This 950IS model transducer must use a
Gemco style magnet. See pages 60-62 for magnet
options.
NOTE 3: All Intrinsically Safe LDTs include a 6 ft.
cable with a straight connector, P/N 04521210.
Consult the factory for longer lengths and right
angle versions.
NOTE 4: Specify magnet style desired as separate
line item. Model number SD0400800 is standard.
NOTE 5: The 950IS is NOT compatible with
competitive style magnets. The 950IS MUST use
Gemco style magnets.
9501446
0120
24
Input Voltage
24
24 VDC
115
115 VAC
230
230 VAC
Analog
Transceiver for
950IS LDT
Stroke Length
Insert stroke length to 0.1 inch. Enter as a four-
place number. Example: A 12.0” stroke enters
as 0120. To convert metric strokes, multiply
millimeter value by 0.03937 for inch value.
9501445
0120
950IS
Intrinsically
Safe LDT
Stroke Length
Insert stroke length to 0.1 inch. Enter as a four-
place number. Example: A 12.0” stroke enters
as 0120. To convert metric strokes, multiply
millimeter value by 0.03937 for inch value.
I.S. Barrier
Approved
Conduit
Seal
Outputs
Input
Voltage

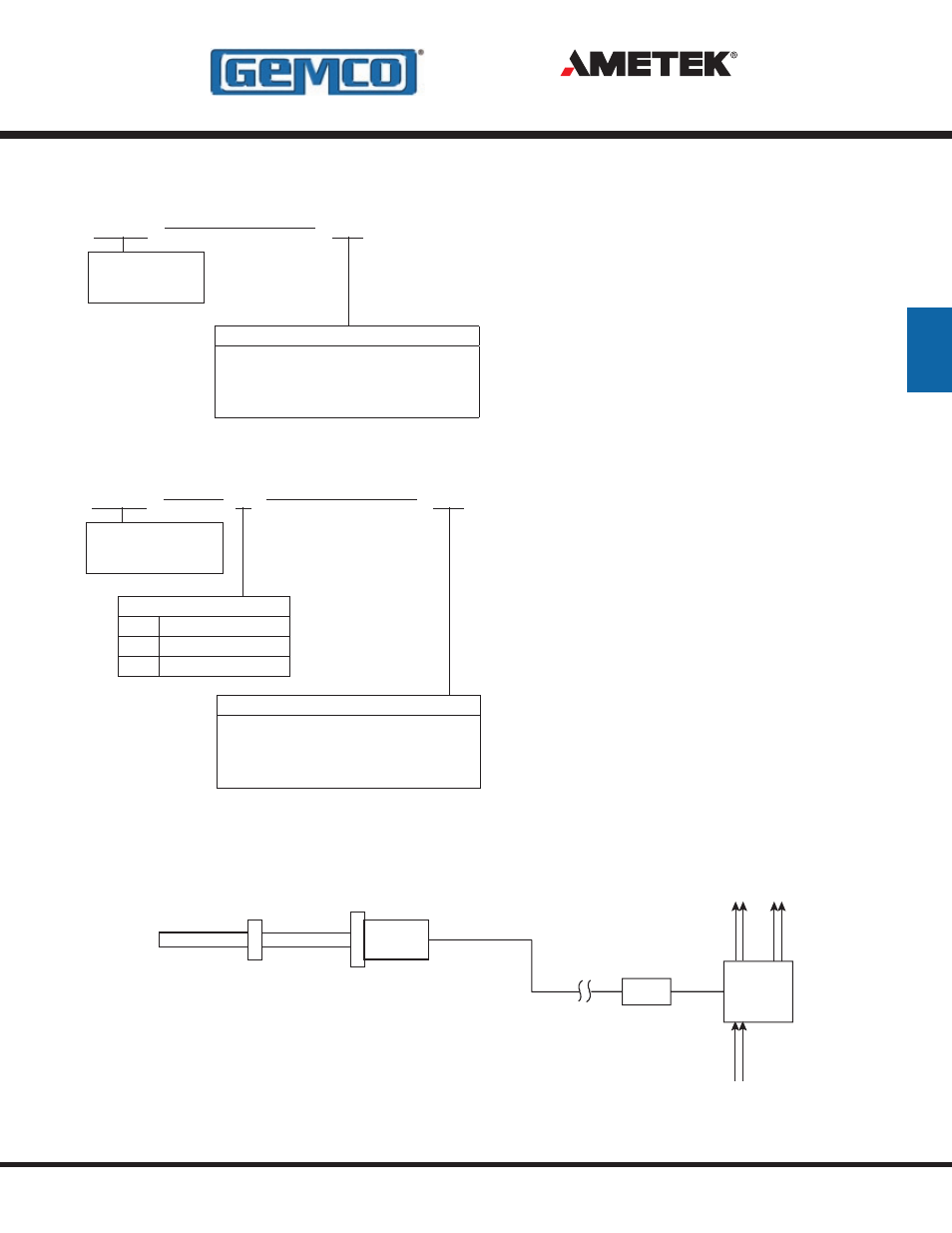

9501445 Configuration
