955

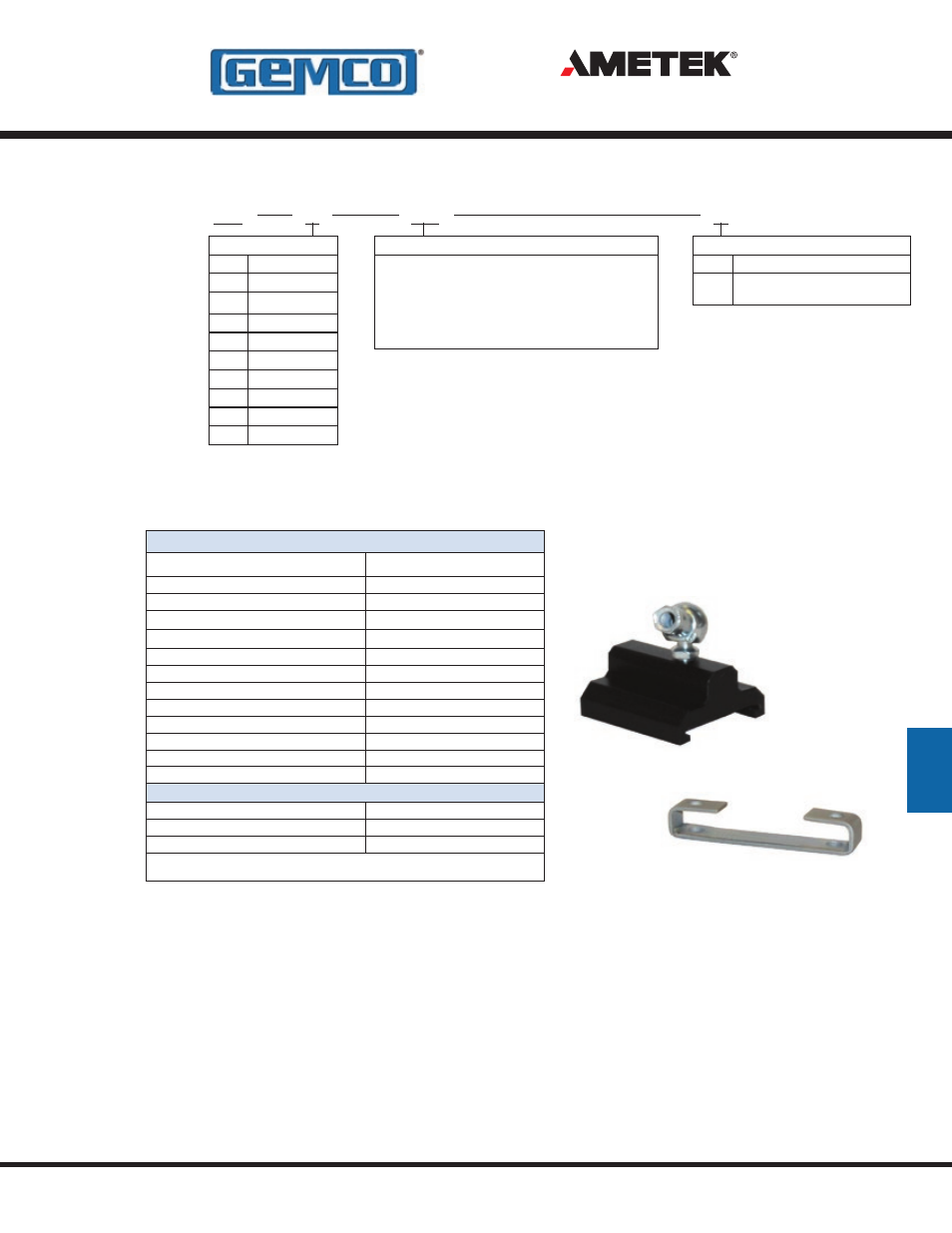

Accessories
Item Part Number
Slide Magnet SD0521800
Slide Magnet Side Adapter SD0521801
Floating Magnet SD0522100
Wide Floating Magnet SD0551500
Mounting Foot SD0522000
6 Ft., 4 Pin Cable 949001L6
12 Ft., 4 Pin Cable 949001L12
6 Ft. , 4 Pin Cable, Right Angle Connector 949002L6
12 Ft., 4 Pin Cable, Right Angle Connector 949002L12
Control Arm 955ARMXX (X = Inches)
In-Line Programming Unit 955-1409
Plastic Rod End 04-570252
FM Accessories
6 Ft., 4 Pin Straight Cable 949024L6
12 Ft., 4 Pin Straight Cable 949024L12
Connector Lock 04-521570
NOTE: FM approved cordset and connector lock must be used and installed per drawing
E0241100 when installing the 955S in Class I, Div 2, Group A, B, C, D applications.
Part Numbering
955S 0120 V0
Output
V0 0 to 10 VDC
V1 10 to 0 VDC
V2 -10 to 10 VDC
V3 10 to -10 VDC
V4 0 to 5 VDC
V5 5 to 0 VDC
V6 -5 to 5 VDC
V7 5 to -5 VDC
C4 4 to 20mA
C2 20 to 4mA
V0
Options
Leave blank for no options.
E
Wet environment, electronics sealed
to IP68 rating
Stroke Length
Insert stroke to 0.1” as a four-place number, enter 12.0”
stroke as 0120.
OR
Insert stroke in millimeters to 1mm. Enter as a four-place
number followed by ‘M’. Example: 305mm stroke entered
as 0305M.
955S Smart BRIK
