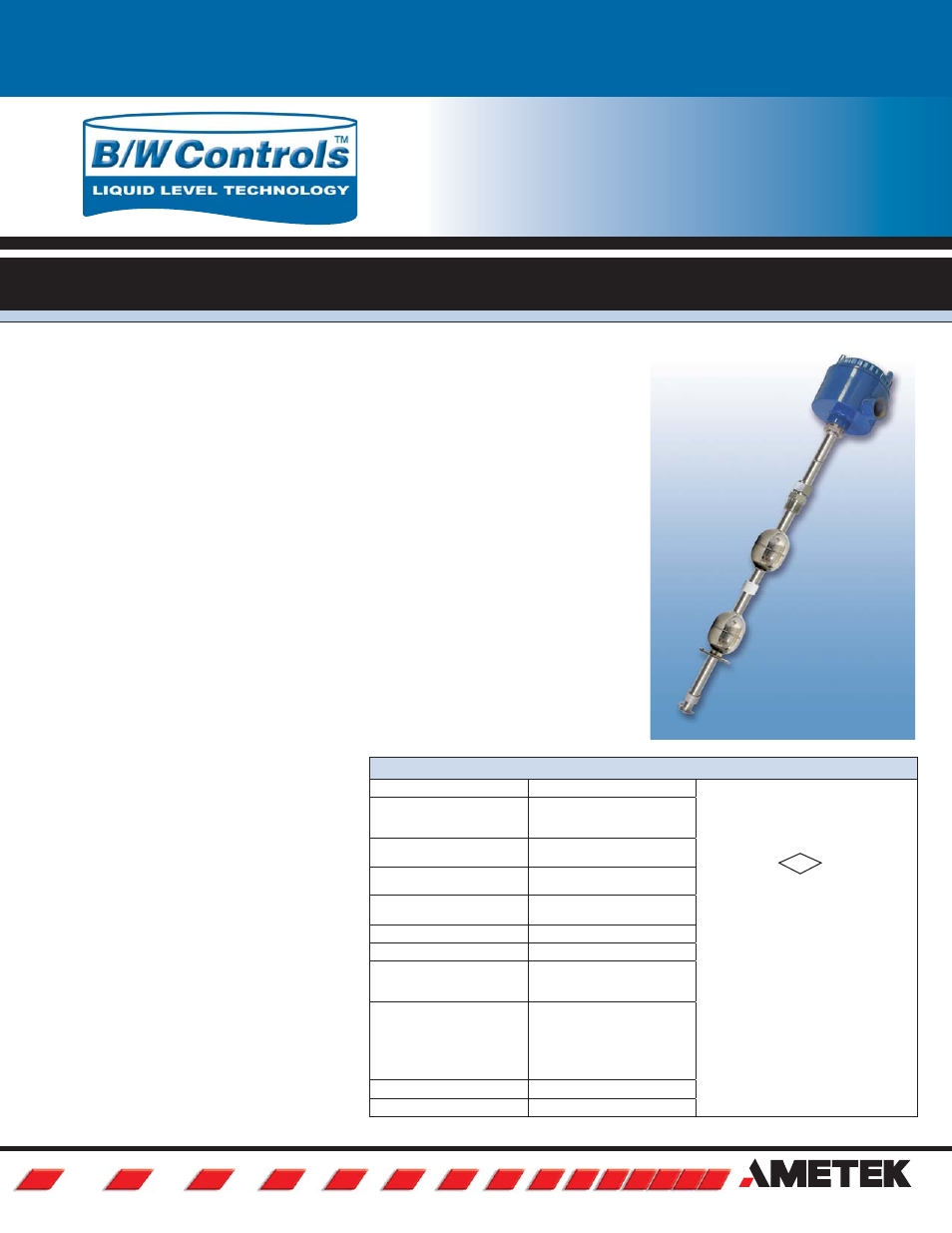

7230 HT Multivariable Digital Probe Data Sheet
7230 Series
Proven Magnetostrictive Sensing Performance
Integrated with a Modbus or ASCII Digital
Multivariable Protocol
Specifi cations
Enclosure Type
Type 4/4X IP66
Approvals
FM (US and Canada)
XP Class I, Div I, Group A, B, C, D, T4
DIP Class II, III, Group E, F, G, T4
Output Signal/Protocol
Level, Interface and Temperature
7231: RS-485, Modbus RTU
7235: TTL, Proprietary
Data
7231: Signed, Long, Binary
7235: ASCII
Range Temp.
-40°F to 257°F Process
-40°F to 158°F Ambient
Pressure Rating, Wetted Parts
316SS Probe: 1000 psi max.
Floats Dependent: Consult Factory.
Wetted Parts
316LSS
Probe Length
Up to 24 foot, 21” to 288”
Accuracy
Resolution
0.01% of Span
7231: 0.01”, 0.1 deg C
7235: 0.0001”, 0.1 deg C
Power Supply
7231: 10 to 30 VDC
40mA @ 30 VDC max.
26mA @ 24 VDC Typical
7235: 5 VDC, +/-10% Typical
3.7 VDC min.
17mA max.
Null Zone
9.25”
Dead Band
2.75”
APPROVED
C
US
FM
The 7230 HT Digital Probe is a new
magnetostrictive level measurement probe
from Ametek APT for the up-stream oil
and gas industry where multi-layer and
temperature data is critical to everyday
operations.
The 7230 Probe is a level measurement
solution that provides both total and
interface levels as well as temperature
readings from up to 5 discreet positions,
and can measure up to 257 F. All the data
is collected by installing a single sensor
through a single process connection,
eliminating the need for multiple sensors
and insertion points. The 7230 Series is
approved as Explosion Proof (without
intrinsic safety barriers) for Class I, Div. 1
and Zone 1 hazardous locations.
The 7230 is available with a choice
of either Modbus RTU or ASCII
communication protocols. An optional
analog interface module is also available
for use with the Modbus RTU output. This
option allows for multivariable 4-20mA
outputs.
All of this performance is enhanced by
Ametek APT’s patented magnetostrictive
design. Magnetostrictive technology
requires no calibration yet provides the
highest accuracy of any of the most
popular level technologies that are
currently offered in today’s market. The
7230 Probe is no exception, as it exceeds
the high accuracy of the proven 7330
Analog STIK with an impressive accuracy
of 0.01% of measured span.
Product Features
• Multivariable readings
• Modbus or ASCII Protocol
• High accuracy
• High temperature
• Reliable level measurement
• Material’s electrical characteristics and
densities do not affect readings
• Easy to install, no technician needed
• Mixed hydrocarbons will not cause level
measurement errors
• A variety of floats are available
