956
Gemco 956 BLOK Housing Option
The 956 BLOK is an optional housing for the 955 BRIK
Series of Linear Displacement Transducers. This housing
adds a chamber, magnet and piston.
The streamlined anodized aluminum extrusion
houses the sensing element and electronics. The
piston assembly moves over the sensing element that
determines the position and converts it to a readable
output.
The 956 BLOK is a self-contained unit and does not
have a can or head assembly. All of the electronics are
incorporated in the transducer which is less than 1.5
inches square. Units can be ordered in span lengths up
to 36 inches long in 0.1 inch increments. The piston is
designed to move effortlessly along the transducer. A
variety of hardware is available for attaching the LDT to
the moving portion of the process. All units are provided
with a standard quick disconnect conector.
The transducer can be mounted vertically or horizontally
using mounting feet or optional rod ends. The mounting
feet slide on the extrusion and clamp down when
tightened. This package style provides a compact and
easy method of mounting for machine builders.
The 956 BLOK is designed for applications where
economical continuous feedback is necessary. The
sensor can be a cost effective replacement to limit and
proximity sensors and linear potentiometers. Applications
include presses, blow molding, injection molding,
extrusion, roll positioning, wicket gates and many more.
Accessories
Item
Part Number
Spacer Kit
Mount feet for .45” or .75” mounting
Includes two mounting feet & spacers
SD0545100
Metal Rod End, Female for Option”F”
04-570256
Mounting Foot
SD0522000
Stainless Steel Rod End 1/4-28 Male for Option ”A”
04-570264
Specifications
Because the 956 BLOK is an optional housing for the 955, electrical specifications are dependant
on the particular 955 sensor. See the 955 BRIK pages for specifications.
Approvals
CE
Enclosure
IP67 (Optional IP68)
Specifications are subject to change without notice.

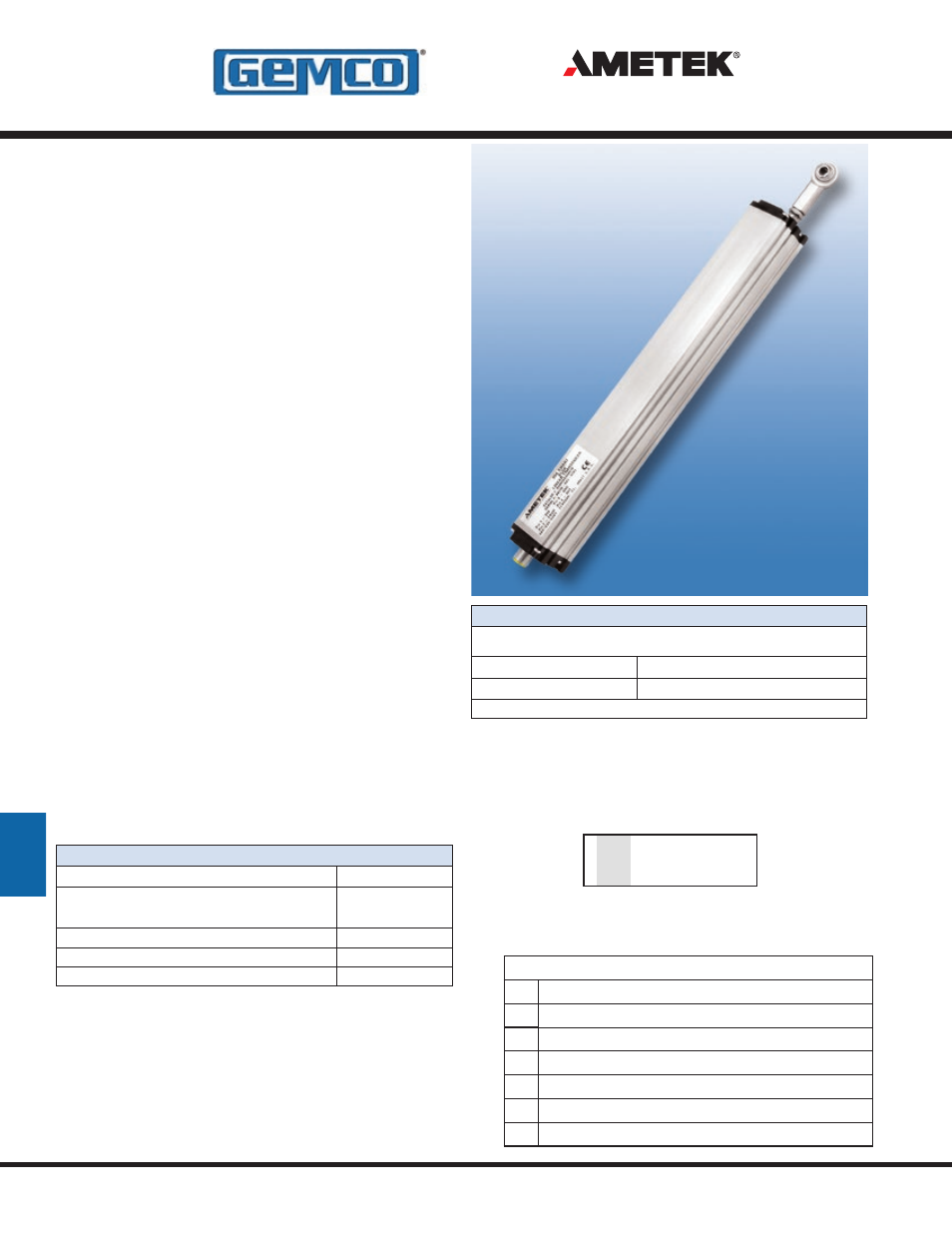

Shown with optional
Metal Rod End.
Part Numbering
To determine a 956 part number, replace the ‘955’ in a
955 BRIK part number with ‘956’. Typical span lengths
range from 6” to 36”. Consult factory for other lengths.
An option signifier from the table below must also be
added to the end of the part number.
955 -S-V0-0120
956 -S-V0-0120-X
956 Options
X
No Options - Male Piston 1/4” - 28 Threads.
E
Wet Environment. Electronics sealed to IP 68 Rating.
F
Front Metal Rod End, Female - used with option “X”.
R
Rear Metal Rod End (Connector End), Female - used with option “X”.
A
Tapped Female Piston Rod 1/4” -28 .
S
Stainless Steel Front Rod End used with option “A”.
T
Stainless Steel Rear Rod End (Connector End) used with option “A”.
