Preparing the Library for Operation
43 HP StorageWorks ESL9000 Series Tape Library User Guide
ESL9595 SCSI Cable Configurations

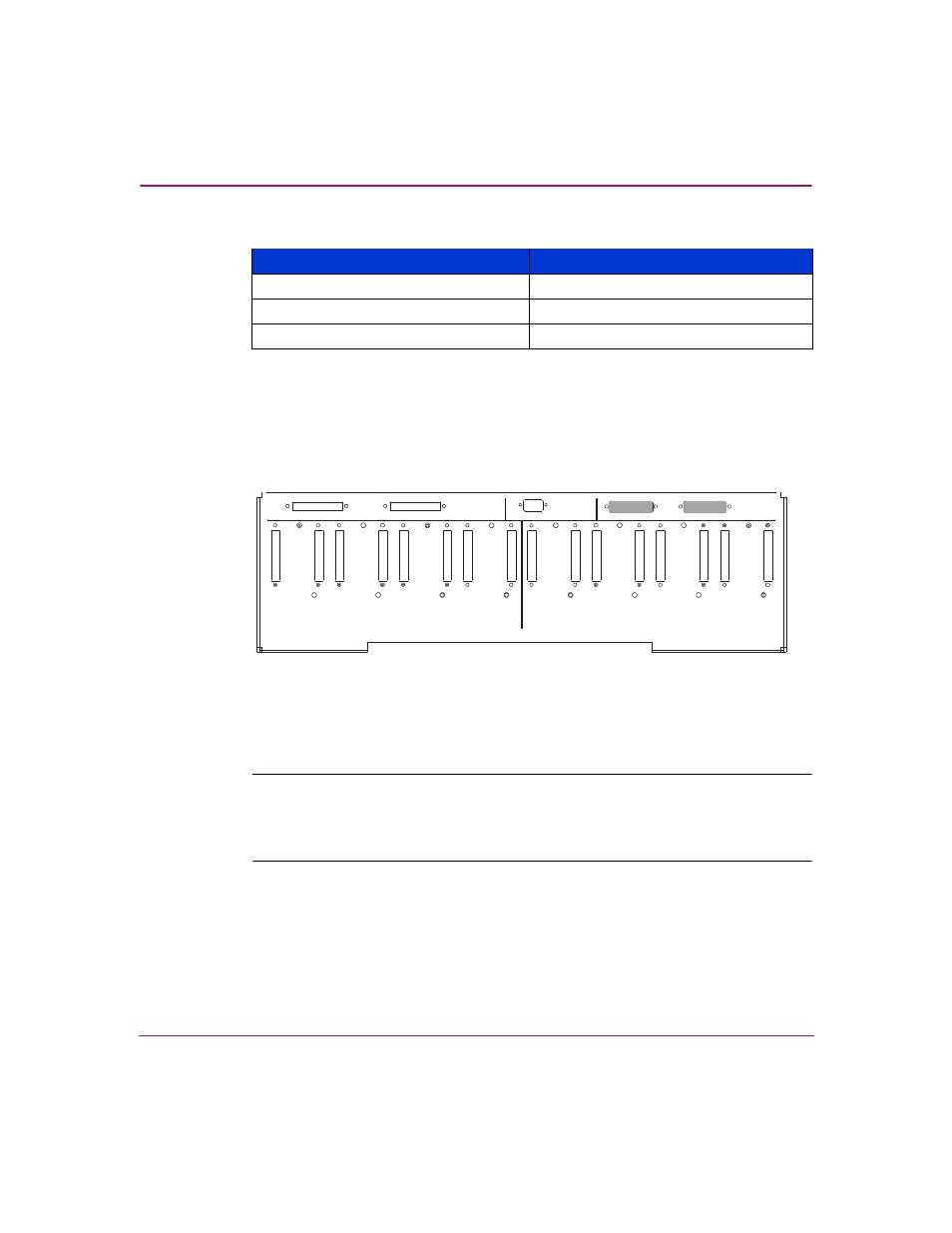

Figure 13 shows the SCSI ports as viewed from the rear of the ESL9595 tape
library.
Figure 13: SCSI ports (ESL9595)
Looking from the rear of the library, connect the SCSI cables and terminators as
shown in
Figure 14 .
Note: ESL9595 series libraries are equipped with internal SCSI cables and terminators
in place for a one drive per SCSI bus configuration. This is the recommended
configuration (and the required configuration for Ultrium 460 drives) and ensures
optimal performance.
Figure 14 shows the internal SCSI cabling. The connectors are on the SCSI ports
that are shown in Figure 13 on page 43.
J Not used
K Robot
L Host
Table 7: SCSI Ports and Device Connections (ESL9322) (Continued)
SCSI Port Identifier Device Connection
DIAG. CONT. R Q PTM
D E F G H B C A
DRIVE POSITION
3 4 5 6 7 1 2 0
I J O N M L K P
8 9 14 13 12 11 10 15
COLUMN 1 DRIVES COLUMN 0 DRIVES
