Option selection – West Control Solutions N6600 User Manual

Page 91

example, the code for a thermocouple input, relay primary output (Output 1) and

relay Output 3 would be 2101.

NOTE: It is essential that this code is changed promptly whenever there is a

change to the Controller’s hardware configuration (change of input/output

type, alarm/recorder output added/removed etc.). The Controller software

depends upon this code to ensure that the Controller operates correctly.

This code may be viewed as a Read Only display in Operator Mode (see Volume

3.2.2 Option Selection

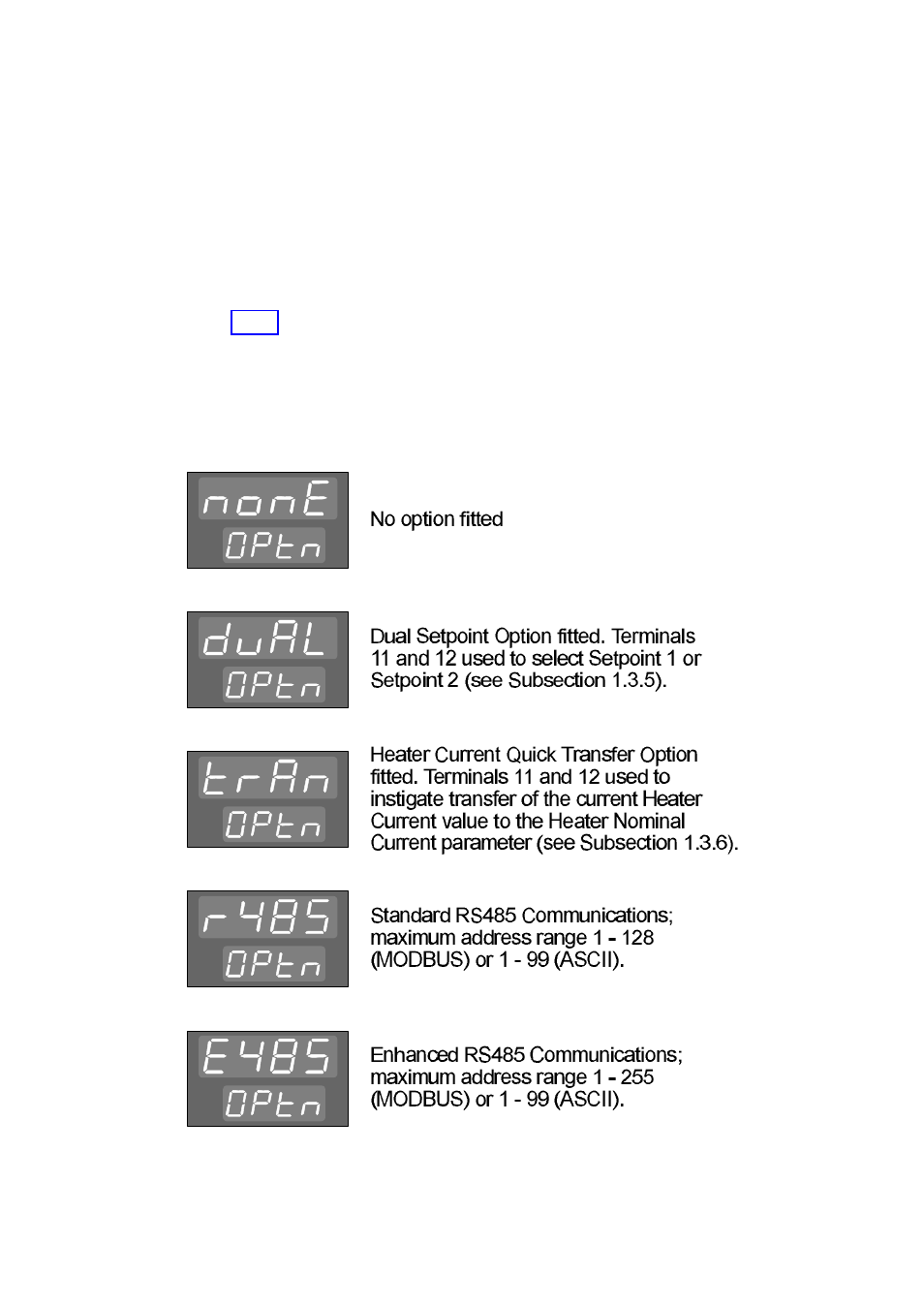

This indicates the option fitted (if any). Using the Raise/Lower keys, the display may

be set to one of:

The displayed option selection may be adjusted (and new values confirmed) as

described previously.
