2.6 OUTPUT 2 TYPE/OUTPUT 3 TYPE
The type of output for Output 2 and Output 3 is determined by the Option PCB
fitted in the appropriate position (see Figure 2-1) and, in the case of the DC
Output 3 Option PCB being fitted, the setting of Link Jumpers LJ8 and LJ9 on that
Option PCB (see Figure 2-5 and table). There are five types of option PCB
which may be used:
1. Relay Output Option PCB (Output 2 or Output 3) - no link jumpers
2. Solid State Output Option PCB (Output 2 or Output 3) - no link jumpers
3. Dual Relay Output 2 Option PCB - (with Output 4) - no link jumpers
4. SSR Drive Output 2 Option PCB - no link jumpers
5. DC Output 3 Option PCB (link jumpers as shown in Figure 2-5)
WARNING:
Do not attempt to fit the Dual Relay Option PCB into the Output 3
(upper) Option PCB position.
2-5 S075-2
PM-0075

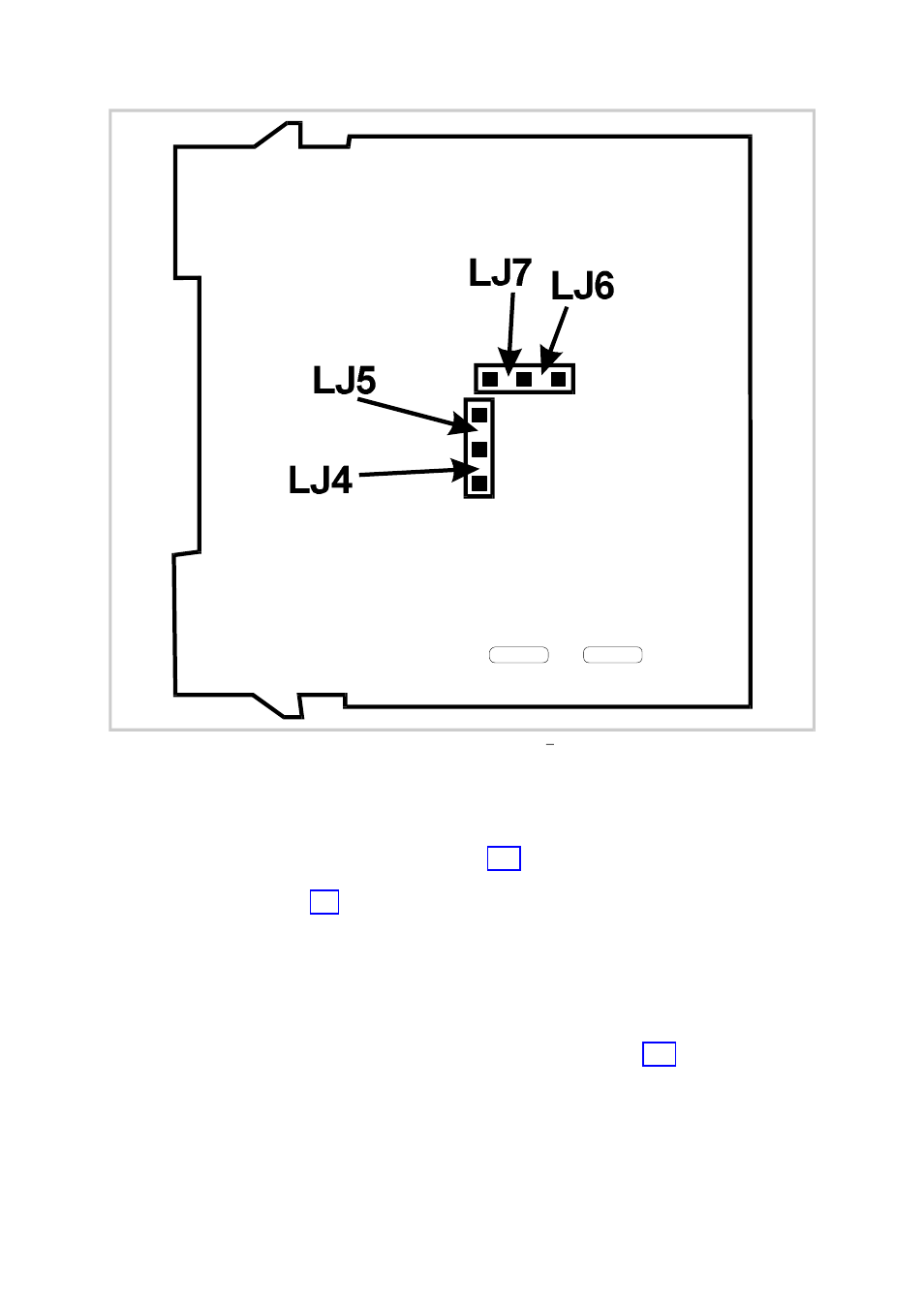

Figure 2-5 PSU PCB Link Jumpers - 1
