3.2 SET UP MODE PARAMETERS
3-2 O075-3
PM-0075
Parameter Legend Adjustment Range Default
Input Filter Time
Constant
OFF, 0.5s to 100.0s In 0.5s
increments
2.0s
Process Variable Offset ± input span of Controller 0
Output Power 0 to 100% Read Only
Output Power 2 4 0 to 100% Read Only
Proportional Band 1 0.0% to 999.9% of input span 10.0%
Proportional Band 2 14 , 0.0% to 999.9% of input span 10.0%
Reset (Integral Time
Constant) 1
1s to 99m 59s and OFF. 5m 00s
Rate (Derivative Time
Constant) 1
00s to 99m 59s 1m 15s
Overlap/Deadband 1 4 , − 20% to + 20% of Proportional
Band 1 + Proportional Band 2
0%
Manual Reset (Bias) 1 0% to 100% (single output)
− 100% to +100% (dual output)
25%
ON/OFF Differential 2 :
Output 1 only
Output 2 only 4
Outputs 1 & 2 4
0.1% to 10% of input span 0.5%
Setpoint High Limit Setpoint to Range Max. Range
Max.
Setpoint Low Limit Range Min. To Setpoint Range
Min.

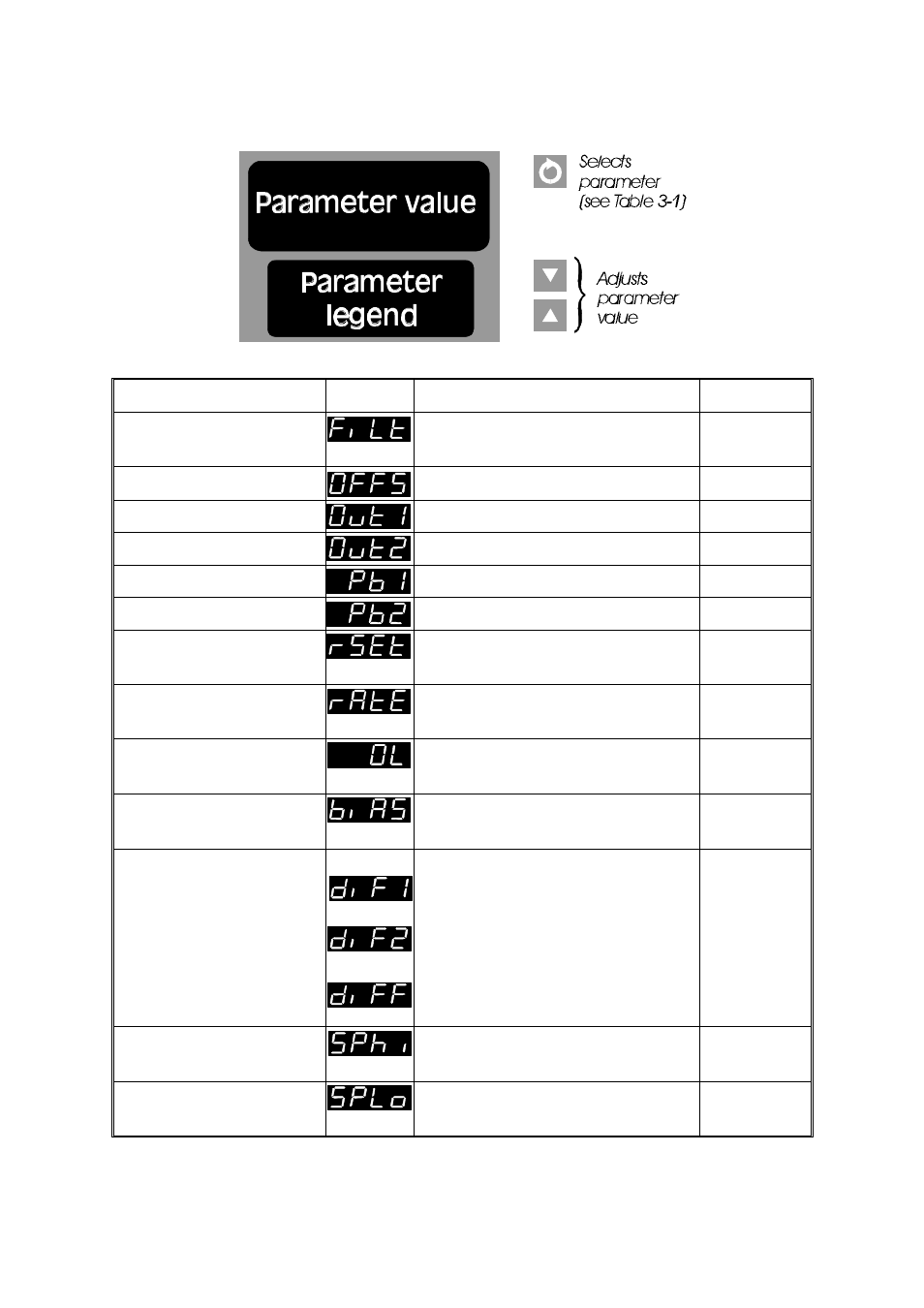

Table 3-1 Set Up Parameters
