1 INSTALLATION
1.1 UNPACKING
PROCEDURE
1. Remove the Controller
from its packing. The
Controller is supplied with
a panel gasket and
push-fit fixing strap. Retain
the packing for future use,
should it be necessary to
transport the Controller to
a different site or to return
it to the supplier for
repair/testing.
2. Examine the delivered
items for damage or
deficiencies. If any is
found, notify the carrier
immediately.
1.2 PANEL-MOUNTING THE CONTROLLER
The panel on which the Controller is to be mounted must be rigid and may be up
to 6.0mm (0.25 inches) thick. The cut-out required for a single Controller is as
shown in Figure 1-1.
Several controllers may be installed in a single cut-out, side-by-side. For n
Controllers mounted side-by-side, the width of the cut-out would be:
(48n - 4) millimetres or (3.78n - 0.16) inches
The Controller is 110mm deep (measured from the rear face of the front panel).
When panel-mounted, the front panel projects 10mm from the mounting panel.
The main dimensions of the Controller are shown in Figure 1-2.
S075-1 1-1
PM-0075

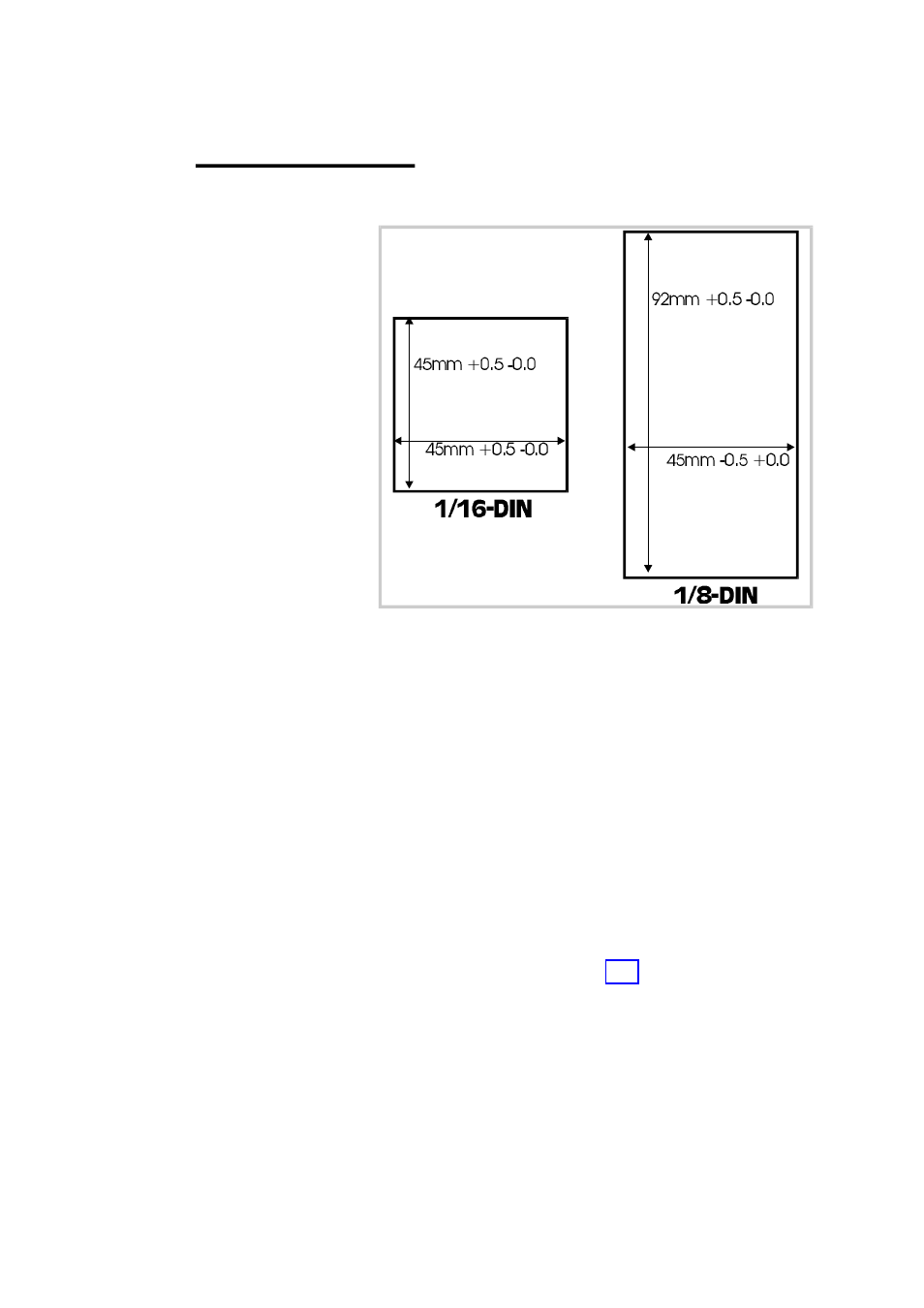

Figure 1-1 Cut-out Dimensions
