2 OPERATOR MODE
2.1 INTRODUCTION
This Section covers the routine operation of the Controller, once it has been
installed and configured. The Controller front panel indicators and keys are shown
in Figure 2-1.
2.2 SELECTING THE PARAMETER TO BE
DISPLAYED/ADJUSTED
After the Controller has performed its power-up self-test, the initial displays
appear. The Scroll key may then be used to step through the available displays.
These displays are dependent upon whether the Controller has been configured
for Single Setpoint operation or Dual Setpoint operation (see overleaf).
O075-2 2-1
PM-0075

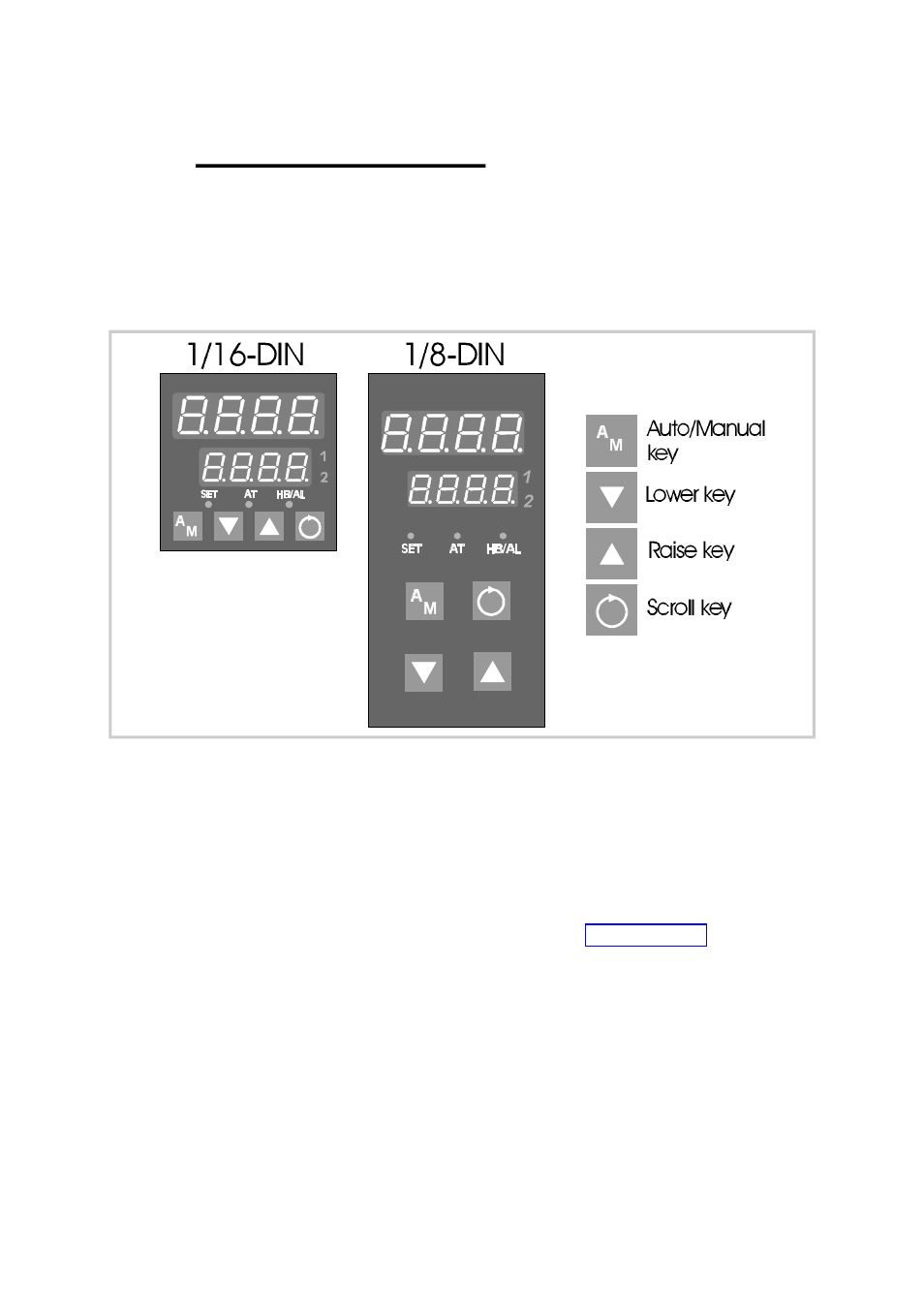

Figure 2-1 Front Panel Indicators and Control Keys
