OUR Setup: OUR Setup Screen
DO6000 and PCD6500 meters
Technology Made Easy ...
The OUR Setup screen present many options to control the operating parameters of the meter.
The meter is factory set with regard to these options, and is ready for use under most
circumstances (see ‘Appendix: 6000 Series Meters Factory Default Settings’ section for
default settings).The operating parameters of the OUR mode can be set and controlled from the
OUR setup screen. The OUR setup screens are virtually identical to the DO setup screens with
exceptions noted. The previous section on the DO Setup will guide you through the various
options available in the OUR setup mode. The main difference is the OUR has a configuration to
edit in the setup mode, see next page for details.
Function Buttons on OUR Setup Screen
Touch OK to confirm OUR Setup and return to the OUR Measure screen.
Touch Cancel to exit and return to the OUR Measure screen without confirming OUR Setup.
Touch View will bring up Select View dialog box. You will have the option of selecting the OUR
results or the all OUR data points stored in the memory.
When you touch the Help button, information about the current screen appears. This information
includes step-by-step instructions for operating the meter from the current screen and possible
applications information for that screen.
Touch Reset to reset all OUR Setup Criteria to the factory default.

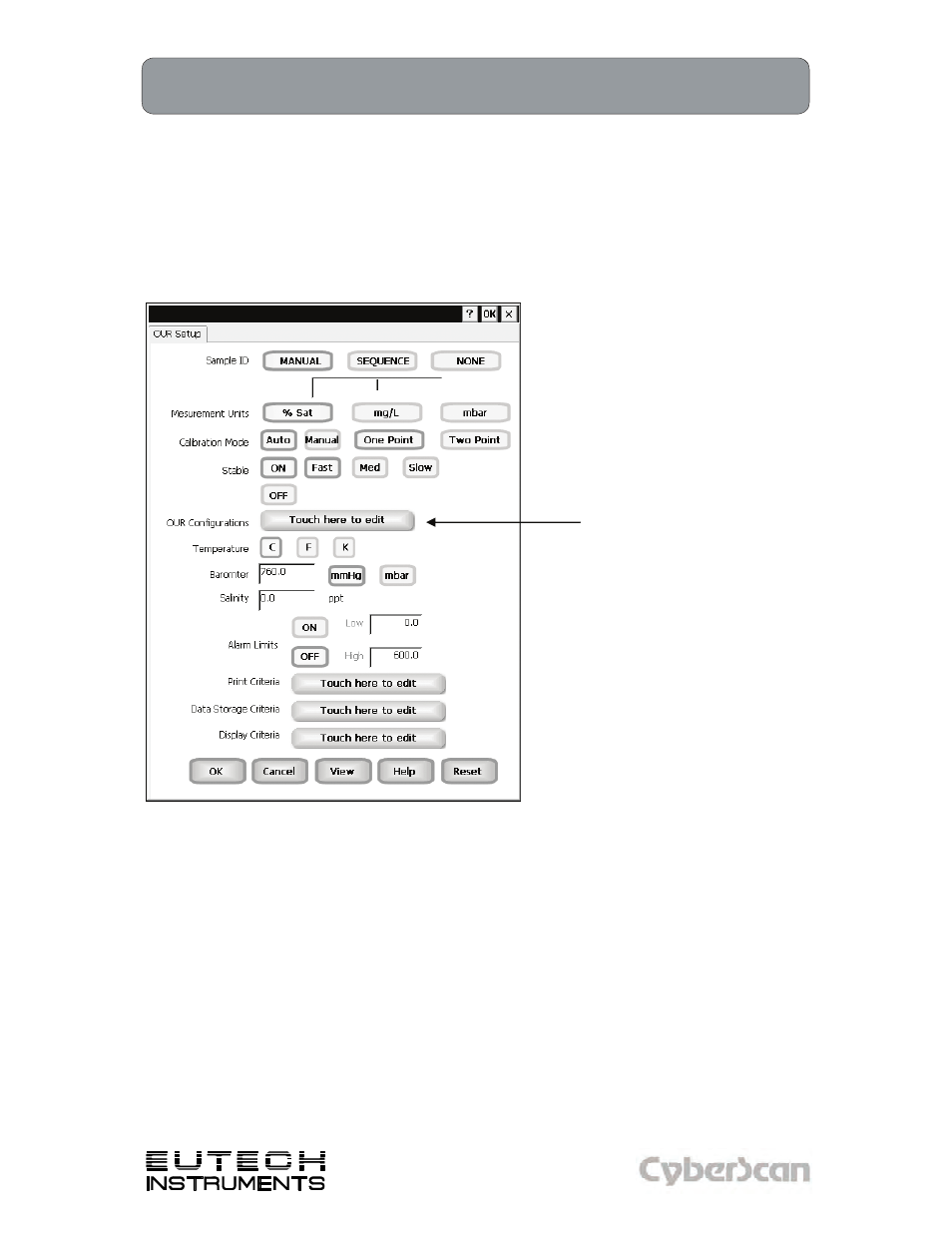

Example: - OUR Setup screen
To set OUR Configuration
