Using the 6000 Series Meter: Display Setup
PC6000, PH6500, PC6500 and PCD6500 meters
Technology Made Easy ...
Your 6000 series meters have the following display configuration:
●
PH6000 – 1 Display (Selectable from Ch1/Ch3)
●
DO6000 – 1 Display (Selection from Ch4)
●
PC6000 – Up to 2 Displays (Selectable from
Ch1/Ch3/Ch5)
●
PC6500 – Up to 3 Displays (Selectable from
Ch1/Ch2/Ch3/Ch5)
●
PH6500 – Up to 2 Displays (Selectable from
Ch1/Ch2/Ch3)
●
PCD6500 – Up to 4 Displays (Selectable from
Ch1/Ch2/Ch3/Ch4/Ch5)
●
CON6000 – 1 Display (Selection from Ch5)
According to the above configuration, the Display Setup mode lets you select which channel will
appear in each display. Access the Display Setup button from the Mode screen when multiple
channels are selected.
To configure the display:
1. Touch the desired Display box.
2. Touch any one of the Channel boxes to the right of the display box to assign the channel
to the selected display.
3. To reassign any of the displays, touch the Display box again and the allocation clears.
Touch the M. Channel button to save the configuration and return to the Measurement screen.
Touch the OK button to save the display configuration and return to the Mode screen.
Touch the Cancel button to exit and return to the Mode screen without saving changes.
When you touch the Help button, information about the current screen appears. This information
includes step-by-step instructions for operating the meter from the current screen and possible
applications information for that screen.

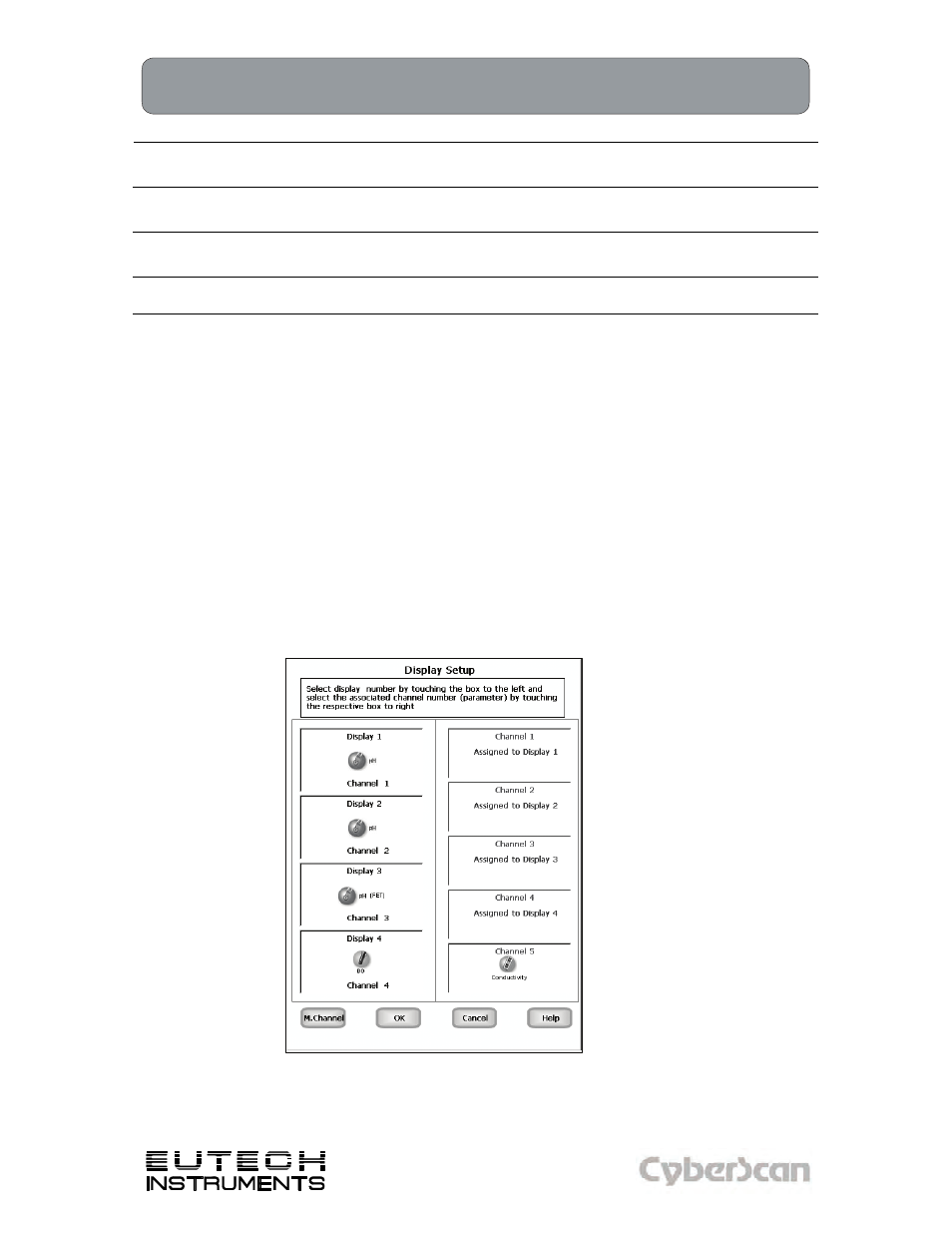

Example: - PCD6500 Display Setup screen
