50
Ion Setup: Ion Setup Screen
PH6500, PC6500 and PCD6500 meters
Technology Made Easy ...
Available in PH6500, PC6500 and PCD6500
meters, the Ion Setup screen presents many options
to control the operating parameters of the meter. The meter is factory set with regard to these
options, and is ready for use under most circumstances (see ‘Appendix: 6000 Series Meters
Factory Default Settings’ section for default settings).The operating parameters of the Ion mode
can be set and controlled from the Ion setup screen. The Ion Setup section will guide you through
the various options available in the Ion setup mode.
Function Buttons on Ion Setup Screen
Touch OK to confirm Ion Setup and return to the Ion Measure screen.
Touch Cancel to exit and return to the Ion Measure screen without confirming Ion Setup.
Touch View to view all Ion data points stored in memory. See ‘Ion Setup: View Stored Data’
section for details.
When you touch the Help button, information about the current screen appears. This information
includes step-by-step instructions for operating the meter from the current screen and possible
applications information for that screen.
Touch Reset to reset all Ion Setup Criteria to the factory default.

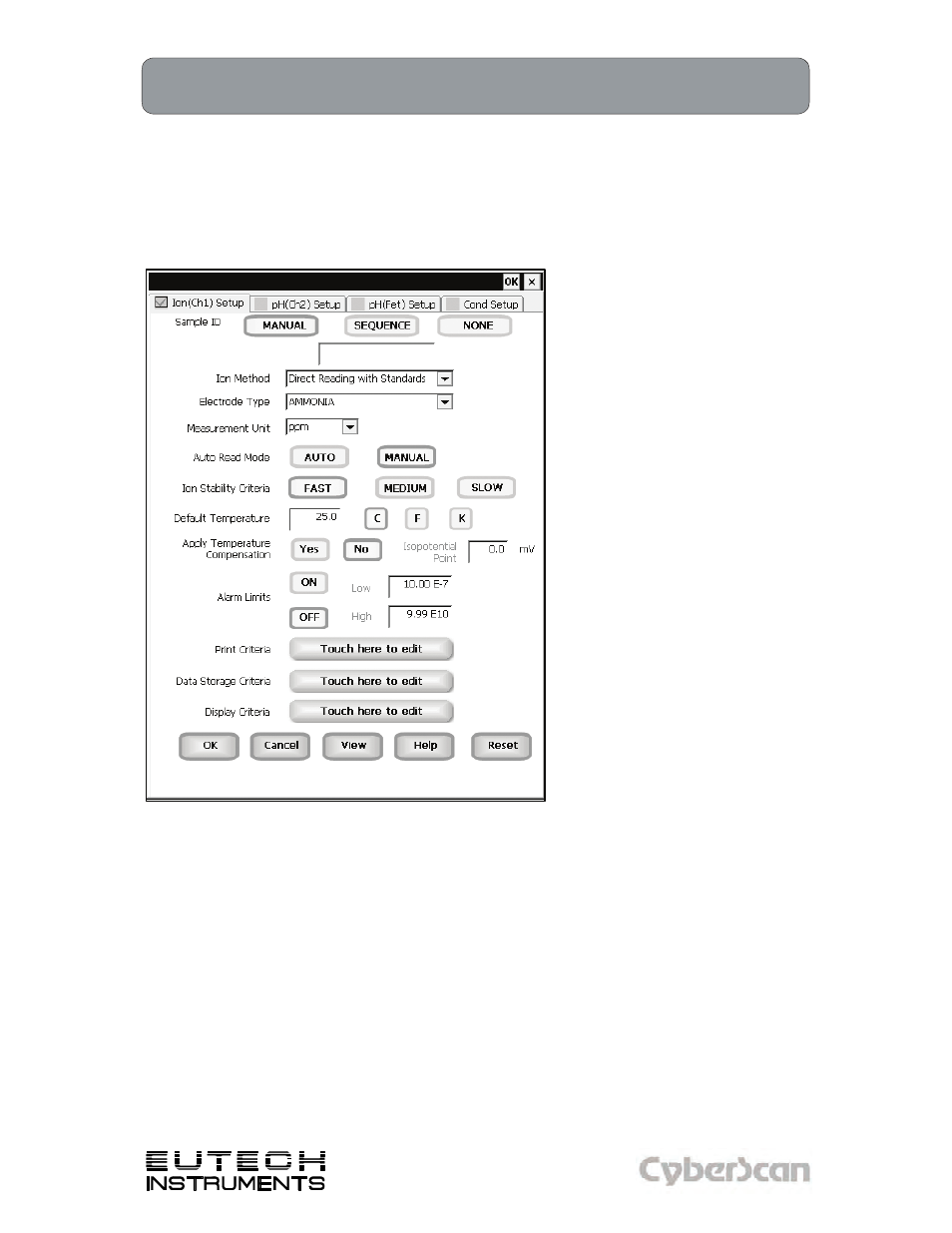

Example: - PCD6500 Ion Setup screen
