41
mV Setup: mV Setup Screen
PH6000, PC6000, PH6500, PC6500 and PCD6500 meters
Technology Made Easy ...
Available in PH6000, PC6000, PH6500, PC6500 and PCD6500
meters, the mV Setup screen
presents many options to control the operating parameters of the meter. The meter is factory set
with regard to these options, and is ready for use under most circumstances (see ‘Appendix:
6000 Series Meters Factory Default Settings’ section for default settings). The mV Setup
section will guide you through the various options available in the mV setup mode.
Function buttons on mV Setup Screen
Touch OK to confirm mV Setup and return to the mV Measure screen.
Touch Cancel to exit and return to the mV Measure screen without confirming mV Setup.
Touch View to view all mV data points stored in memory. See ‘mV Setup: View Stored Data’
section for details.
When you touch the Help button, information about the current screen appears. This information
includes step-by-step instructions for operating the meter from the current screen and possible
applications information for that screen.
Touch Reset to reset all mV Setup Criteria to the factory default.

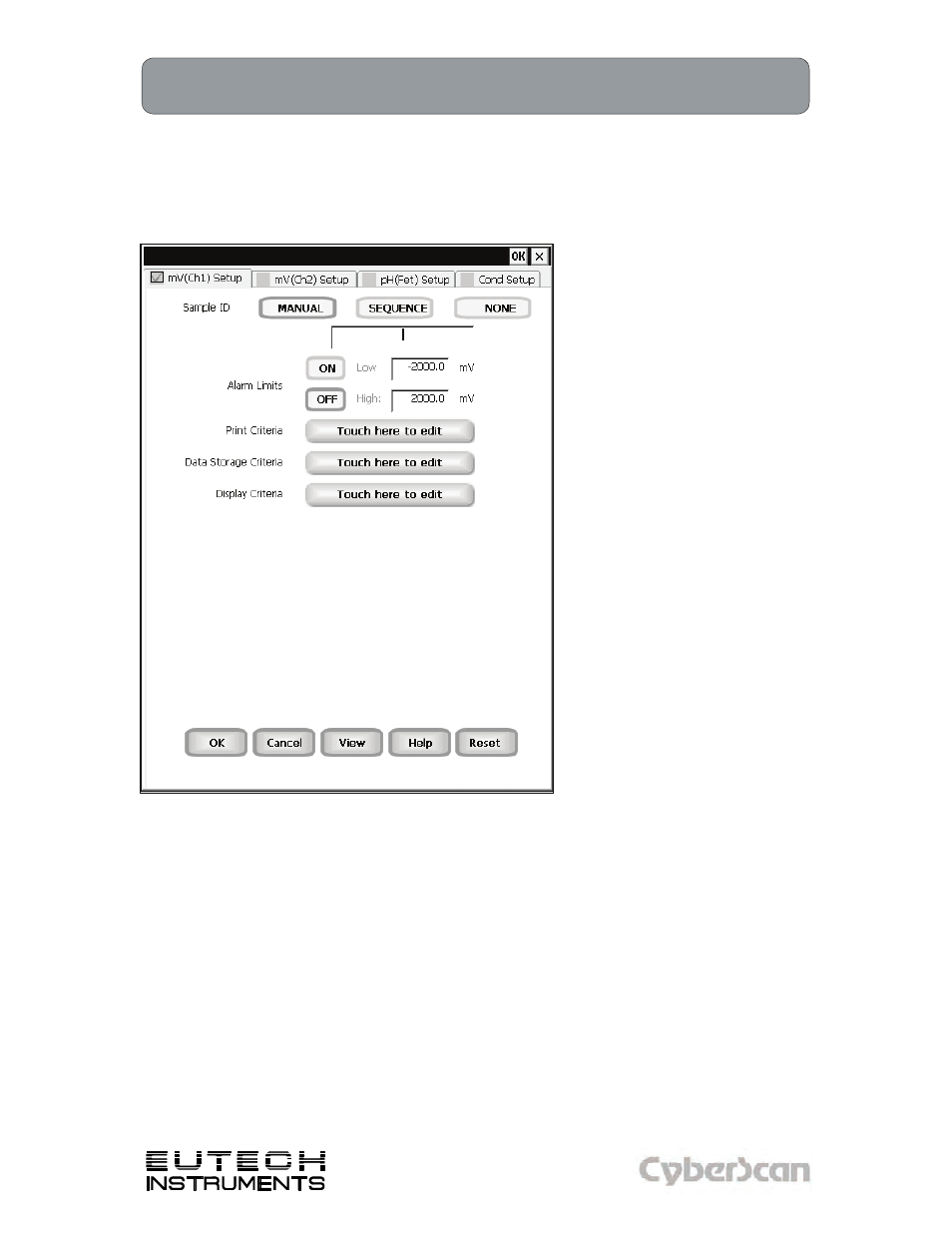

Example: - PCD6500 mV Setup screen
